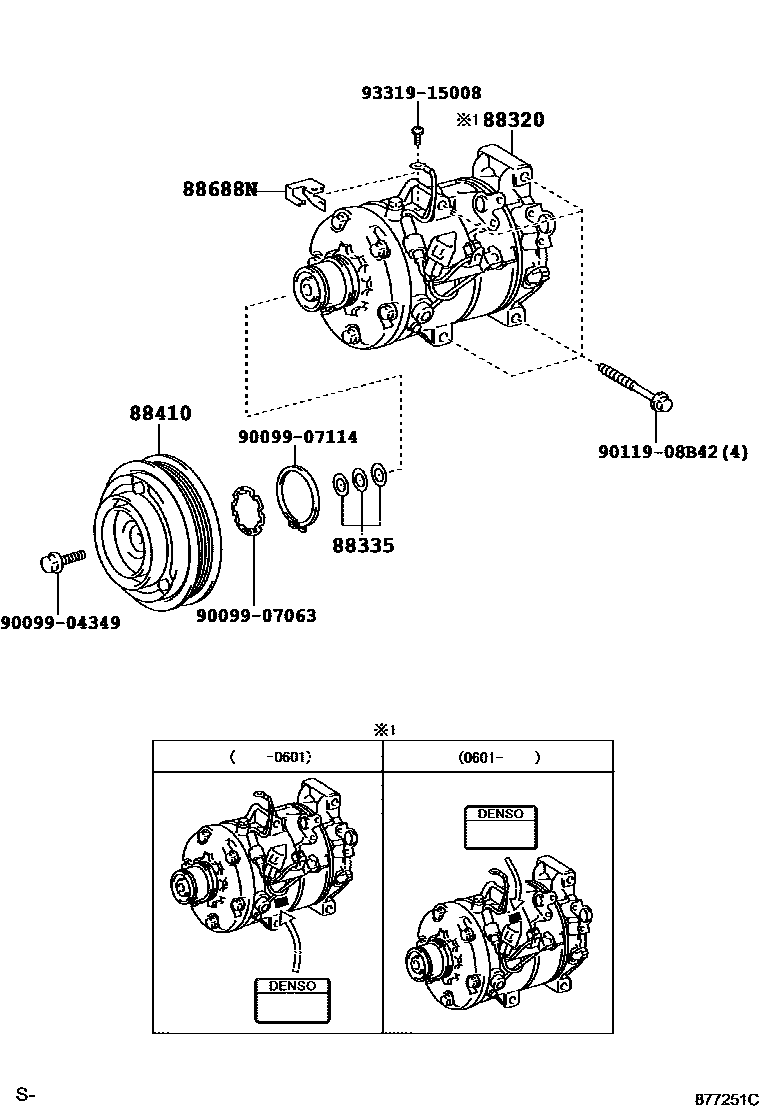

Toyota AVALON — HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-07110i200501-200601

REFER TO ILLUST.

main88320-33200i200601-200707

REFER TO ILLUST.

main88320-33200i200707-201003

88335GASKET KIT, OVERHAUL

main88335-14020i200501-201003

88410CLUTCH ASSY, MAGNET

main88410-33150i200707-201003

main88410-3A280i200501-200601

main88410-3A290i200601-200707

88688NBRACKET, COOLER

main88688-33460i200601-201003

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

9 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota AVALON

This section contains 9 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota AVALON. Key components include: COMPRESSOR ASSY, COOLER, GASKET KIT, OVERHAUL, CLUTCH ASSY, MAGNET, BRACKET, COOLER.
