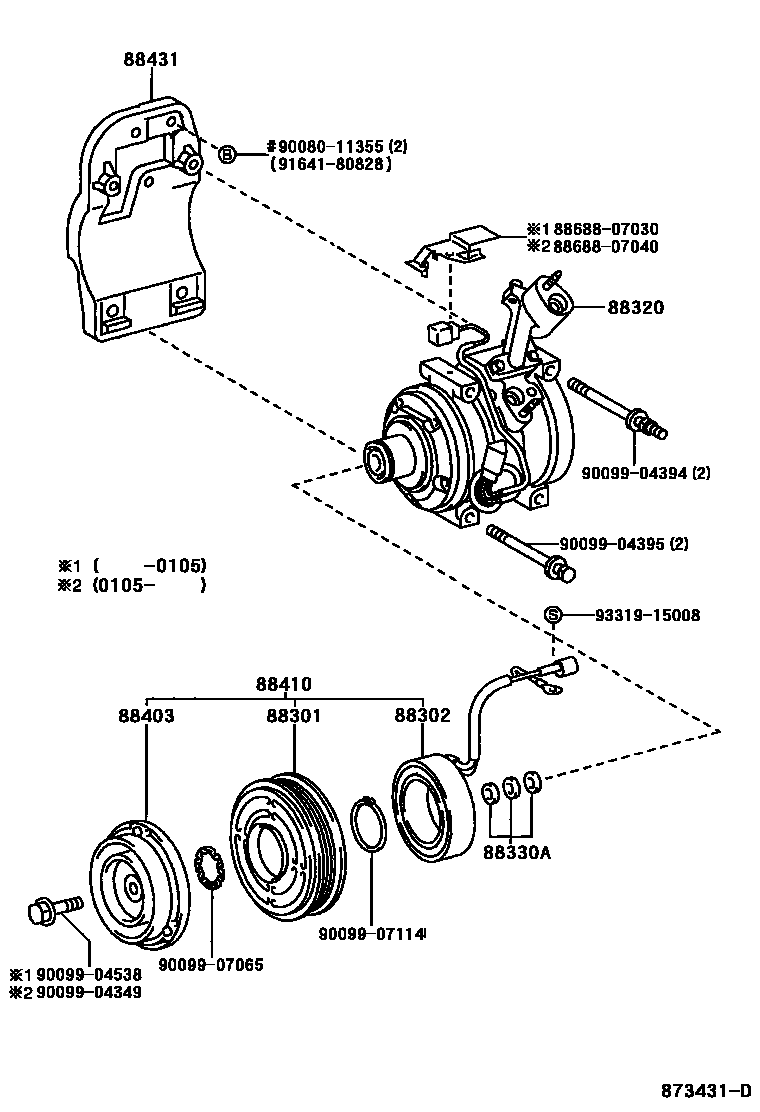

Toyota AVALON — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-07020iMCX20199908-200105

main88412-48020iMCX20200105-200206

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-07030iMCX20199908-200105

main88411-44010iMCX20200105-200206

88320COMPRESSOR ASSY, COOLER

main88320-07050iMCX20199908-200105

main88320-07100iMCX20200105-200501

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCX20199908-200501

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-07010iMCX20199908-200105

main88403-32010iMCX20200105-200206

88410CLUTCH ASSY, MAGNET

main88410-07020iMCX20199908-200105

main88410-33120iMCX20200105-200501

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021iMCX20199908-200308

main88431-07021iMCX20200308

(L)

main88431-33041iMCX20200308

(J)

8868807030BRACKET, COOLER DIAPHRAGM

main88688-07030

8868807040BRACKET, COOLER DIAPHRAGM

main88688-07040

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009904538

main90099-04538

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

18 parts on this diagram · 2 diagrams in section
