Toyota AVALONHEADLAMP

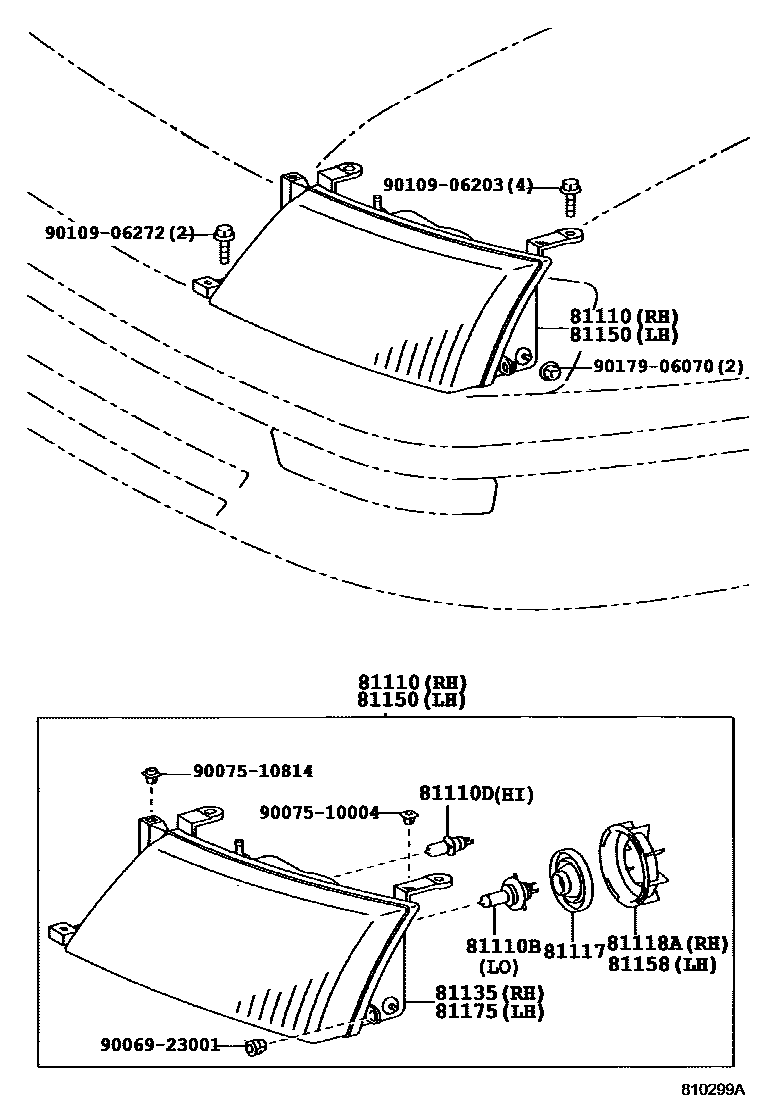

Parts diagram
81110HEADLAMP ASSY, RH
main81110-07030i199508-199709
main81110-AC030i199709
81110BBULB(FOR HEADLAMP, NO.1)
main90080-81041×2i199709
12V 65W
main90981-22003×2i199508-199709
12V 60/55W,*HAL *WH
81110DBULB(FOR HEADLAMP, NO.2)
main90080-81040×2i199709
12V 51W
main90981-13017×2i199508-199709
12V 55W,*HAL *WH
81117PACKING, HEADLAMP HOUSING
main81117-07020×2i199508-199709
81118ABRACKET, HEADLAMP, RH
main81118-07020i199508-199709
81135UNIT ASSY, HEADLAMP, RH
main81130-07030i199508-199709
main81130-AC030i199709
81150HEADLAMP ASSY, LH
main81150-07030i199508-199709
main81150-AC030i199709
81158BRACKET, HEADLAMP, LH
main81118-07020i199508-199709
81175UNIT ASSY, HEADLAMP, LH
main81170-07030i199508-199709
main81170-AC030i199709
9006923001
9007510004
9007510814
9010906203
9010906272
9017906070

15 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota AVALON

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota AVALON. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), PACKING, HEADLAMP HOUSING, BRACKET, HEADLAMP, RH.
