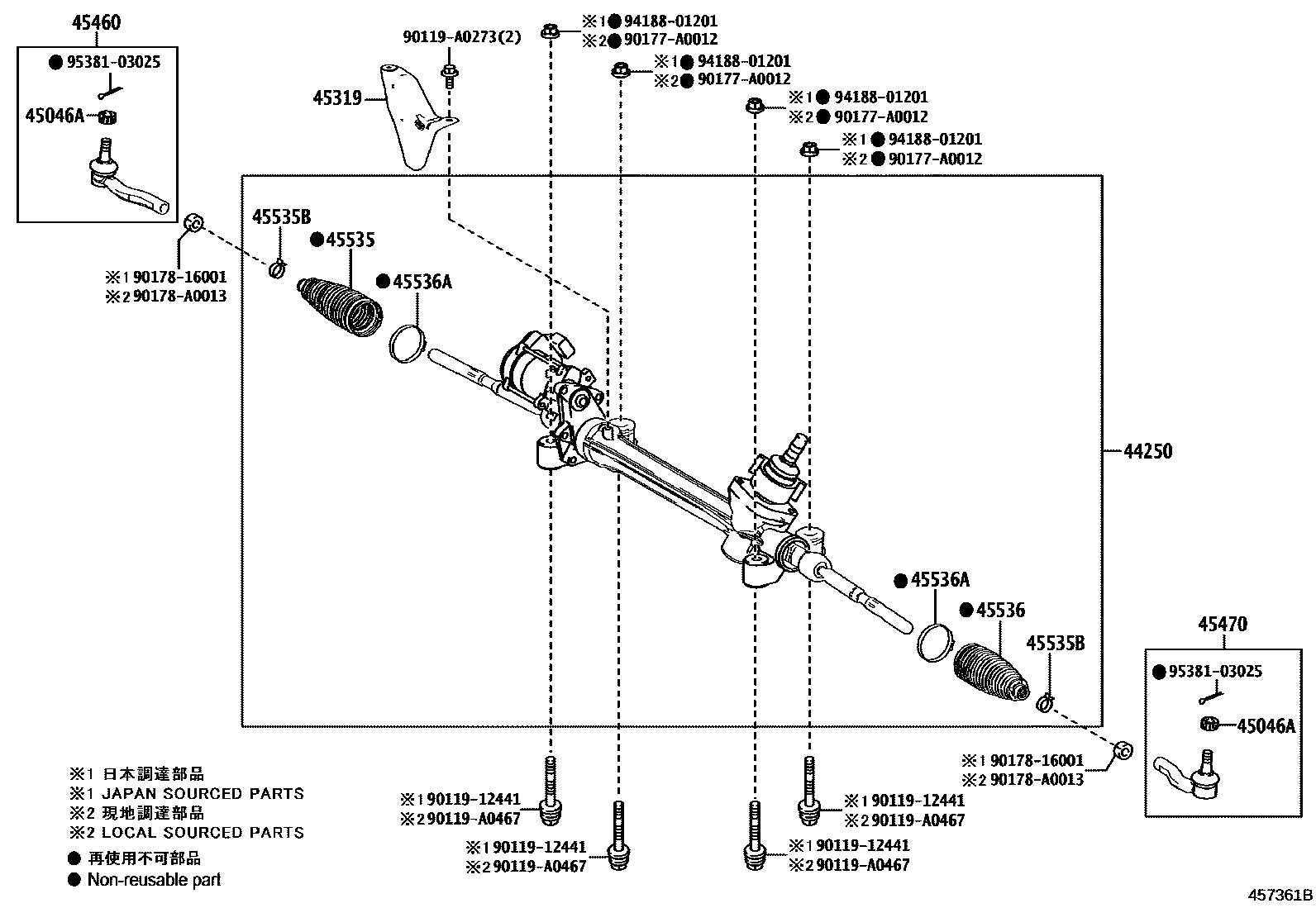

Toyota AVALON — FRONT STEERING GEAR & LINK

Parts diagram

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-07170i201806-202008

main44250-07171i202008-202108

main44250-07172i202108

main44250-07180i201806-202008

main44250-07181i202008-202108

main44250-07182i202108

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2i201806-202008

45319INSULATOR, STEERING GEAR HEAT

main45319-06020i201806-202008

45460ROD ASSY, TIE, RH

main45460-09280i202008

45470ROD ASSY, TIE, LH

main45470-09180i201806-202008

45535BOOT, STEERING RACK, NO.1

main45535-09500i201806-202008

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020×2i202006-202008

main45537-0T010×2i201806-202005

45536BOOT, STEERING RACK, NO.2

main45535-09500i201806-202008

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0T010×2i202008

9011912441

main90119-12441

90119A0273

main90119-A0273

90119A0467

main90119-A0467

90177A0012

main90177-A0012

9017816001

main90178-16001

90178A0013

main90178-A0013

9418801201

main94188-01201

9538103025

main95381-03025

17 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota AVALON

This section contains 17 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota AVALON. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
