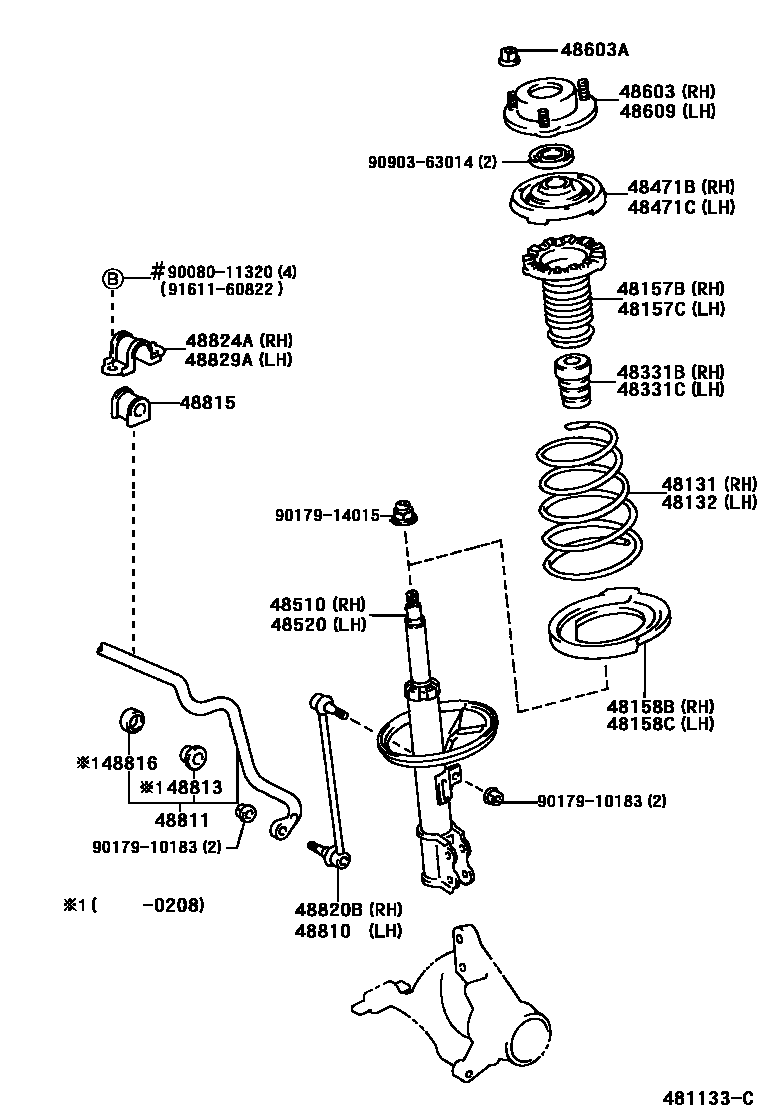

Toyota AVALON — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-07070
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-07070
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48810LINK ASSY, FRONT STABILIZER, LH
48813STOPPER, FRONT STABILIZER
48815BUSH, FRONT STABILIZER BAR, NO.1
48816CLAMP, FRONT STABILIZER STOPPER
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9008011320
main90080-11320
9017910183
main90179-10183
9017914015
main90179-14015
9090363014
main90903-63014
9161160822
main91611-60822
28 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota AVALON
This section contains 28 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota AVALON. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, INSULATOR, FRONT COIL SPRING, LOWER RH.
