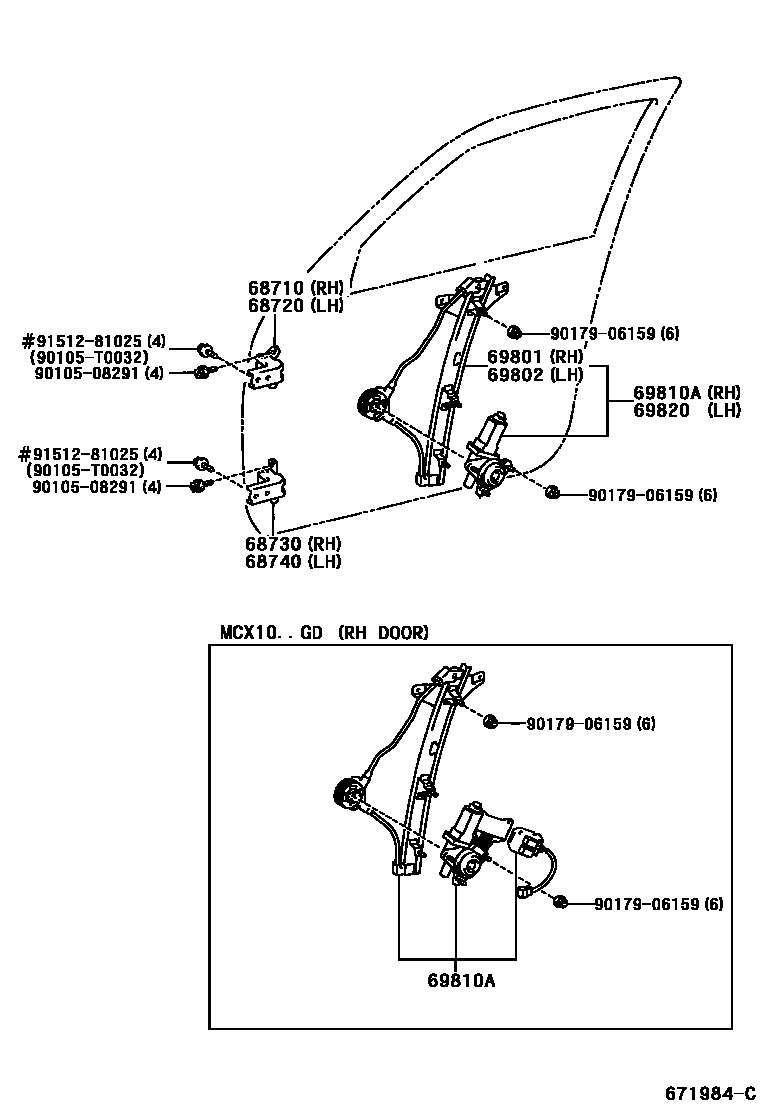

Toyota AVALON — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-07010i200309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-07010i200004-200309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-07010i200004-200309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-07010i200004-200309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-YF010i200309

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-YF010i200309

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-YF010i200309

main69810-YF020i200004-200309

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-YF010i200004-200309

9010508291

main90105-08291

90105T0032

main90105-T0032

9017906159

main90179-06159

9151281025

main91512-81025

12 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota AVALON

This section contains 12 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota AVALON. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
