Toyota AVALON — FRONT DOOR PANEL & GLASS

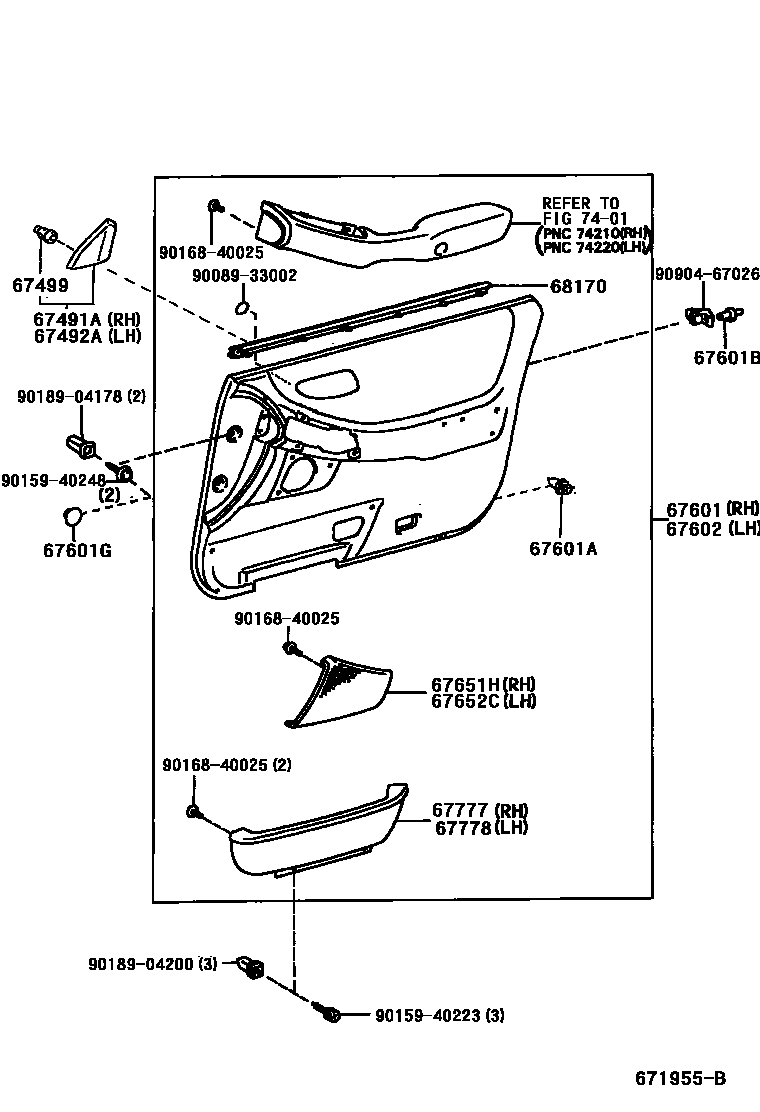

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-AC010i200004-200309
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-AC010i200004-200309
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-06010×6i200004-200309
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-YF010-B0i200004-200110
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67610-YF010-E0i200004-200110
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
main67610-YF020-B0i200004-200110
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67610-YF020-E0i200004-200110
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67610-YF030-B0i200004-200309
DOOR TRIM=TYPE C-*104,STONE,TRIM1#
main67610-YF030-E0i200004-200309
DOOR TRIM=TYPE C-*104,FAWN,TRIM4#
main67610-YF040-B0i200004-200309
DOOR TRIM=TYPE D-*104,STONE,TRIM1#
main67610-YF040-E0i200004-200309
DOOR TRIM=TYPE D-*104,FAWN,TRIM4#
main67610-YF050-B0i200004-200309
DOOR TRIM=TYPE C-*104,STONE,TRIM1#
main67610-YF050-E0i200004-200309
DOOR TRIM=TYPE C-*104,FAWN,TRIM4#
main67610-YF060-B1i200110-200309
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67610-YF060-E1i200110-200309
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
main67610-YF070-B1i200209-200309
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67610-YF070-E1i200209-200309
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67610-YF080-B0i200110-200309
DOOR TRIM=TYPE D-*104,STONE,TRIM1#
main67610-YF080-E0i200110-200309
DOOR TRIM=TYPE D-*104,FAWN,TRIM4#
main67610-YF090-B2i200309-200506
NEW ZEALAND SPEC & DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67610-YF090-B3i200309-200506
NEW ZEALAND SPEC & DOOR TRIM=TYPE B-*104,XXXX,TRIM1#
main67610-YF100-B2i200309-200506
STONE,TRIM1#
main67610-YF110-B2i200309-200506
FABRIC TRIM,STONE,TRIM1#; NEW ZEALAND SPEC & FABRIC TRIM,STONE,TRIM1#
main67610-YF110-E2i200309-200506
FABRIC TRIM,FAWN,TRIM4#; NEW ZEALAND SPEC & FABRIC TRIM,FAWN,TRIM4#
main67610-YF120-B2i200309-200506
LEATHER TRIM,STONE,TRIM1#
main67610-YF120-E2i200309-200506
LEATHER TRIM,FAWN,TRIM4#
main67610-YF130-B3i200309-200506
NEW ZEALAND SPEC & LEATHER TRIM,STONE,TRIM1#
main67610-YF130-E3i200309-200506
NEW ZEALAND SPEC & LEATHER TRIM,FAWN,TRIM4#
main67610-YF140-B2i200309-200506
FABRIC TRIM,STONE,TRIM1#
main67610-YF140-E2i200310-200506
FABRIC TRIM,FAWN,TRIM4#
main67610-YF150-B0i200309-200506
STONE,TRIM1#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-28020×2i200004-200309
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-E8×3i200004-200309
FAWN,TRIM4#
main90467-07066-P4×3i200004-200309
STONE,TRIM1#
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01746-B4×4i200004-200309
STONE,TRIM1#
main90950-01746-E6×4i200004-200309
FAWN,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-YF010-B0i200004-200110
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67620-YF010-E0i200004-200110
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
main67620-YF020-B0i200004-200110
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67620-YF020-E0i200004-200110
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67620-YF030-B0i200004-200309
DOOR TRIM=TYPE C-*104,STONE,TRIM1#
main67620-YF030-E0i200004-200309
DOOR TRIM=TYPE C-*104,FAWN,TRIM4#
main67620-YF040-B0i200004-200309
DOOR TRIM=TYPE D-*104,STONE,TRIM1#
main67620-YF040-E0i200004-200309
DOOR TRIM=TYPE D-*104,FAWN,TRIM4#
main67620-YF050-B0i200004-200309
DOOR TRIM=TYPE C-*104,STONE,TRIM1#
main67620-YF050-E0i200004-200309
DOOR TRIM=TYPE C-*104,FAWN,TRIM4#
main67620-YF060-B1i200110-200309
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67620-YF060-E1i200110-200309
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
main67620-YF070-B1i200110-200209
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67620-YF070-E1i200110-200209
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67620-YF080-B0i200110-200309
DOOR TRIM=TYPE D-*104,STONE,TRIM1#
main67620-YF080-E0i200110-200309
DOOR TRIM=TYPE D-*104,FAWN,TRIM4#
main67620-YF090-B2i200309-200506
NEW ZEALAND SPEC & DOOR TRIM=TYPE A-*104,STONE,TRIM1#
main67620-YF090-B3i200309-200506
NEW ZEALAND SPEC & DOOR TRIM=TYPE B-*104,XXXX,TRIM1#
main67620-YF100-B2i200309-200506
STONE,TRIM1#
main67620-YF110-B2i200309-200506
FABRIC TRIM,STONE,TRIM1#; NEW ZEALAND SPEC & FABRIC TRIM,STONE,TRIM1#
main67620-YF110-E2i200309-200506
FABRIC TRIM,FAWN,TRIM4#; NEW ZEALAND SPEC & FABRIC TRIM,FAWN,TRIM4#
main67620-YF120-B2i200309-200506
LEATHER TRIM,STONE,TRIM1#
main67620-YF120-E2i200309-200506
LEATHER TRIM,FAWN,TRIM4#
main67620-YF130-B3i200309-200506
NEW ZEALAND SPEC & LEATHER TRIM,STONE,TRIM1#
main67620-YF130-E3i200309-200506
NEW ZEALAND SPEC & LEATHER TRIM,FAWN,TRIM4#
main67620-YF140-B2i200309-200506
FABRIC TRIM,STONE,TRIM1#
main67620-YF140-E2i200309-200506
FABRIC TRIM,FAWN,TRIM4#
main67620-YF150-B0i200309-200506
STONE,TRIM1#
67651HGRILLE, SPEAKER DOOR, RH
main67651-YF010-B0i200309-200506
NEW ZEALAND SPEC,STONE,TRIM1#; STONE,TRIM1#
main67651-YF010-E0i200309-200506
FAWN,TRIM4#; NEW ZEALAND SPEC,FAWN,TRIM4#
main67651-YF020-B0i200309-200506
STONE,TRIM1#
main67651-YF020-E0i200004-200309
FAWN,TRIM4#
67652CGRILLE, SPEAKER DOOR, LH
main67652-YF010-B0i200309-200506
NEW ZEALAND SPEC,STONE,TRIM1#; STONE,TRIM1#
main67652-YF010-E0i200309-200506
FAWN,TRIM4#; NEW ZEALAND SPEC,FAWN,TRIM4#
main67652-YF020-B0i200004-200309
STONE,TRIM1#
main67652-YF020-E0i200309-200506
FAWN,TRIM4#
67777POCKET, FRONT DOOR TRIM, RH
main67770-YF010-B1i200004-200309
STONE,TRIM1#
main67770-YF010-E1i200004-200309
FAWN,TRIM4#
67778POCKET, FRONT DOOR TRIM, LH
main67780-YF010-B1i200309-200506
STONE,TRIM1#
main67780-YF010-E1i200004-200309
FAWN,TRIM4#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-AC010×2i200004-200309
7401ARMREST & VISOR
→ Go to FIG 74-01
9008933002
main90089-33002
9015940223
main90159-40223
9015940248
main90159-40248
9016840025
main90168-40025
9018904178
main90189-04178
9018904200
main90189-04200
9090467026
main90904-67026

21 parts on this diagram · 4 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota AVALON

This section contains 55 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota AVALON. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
