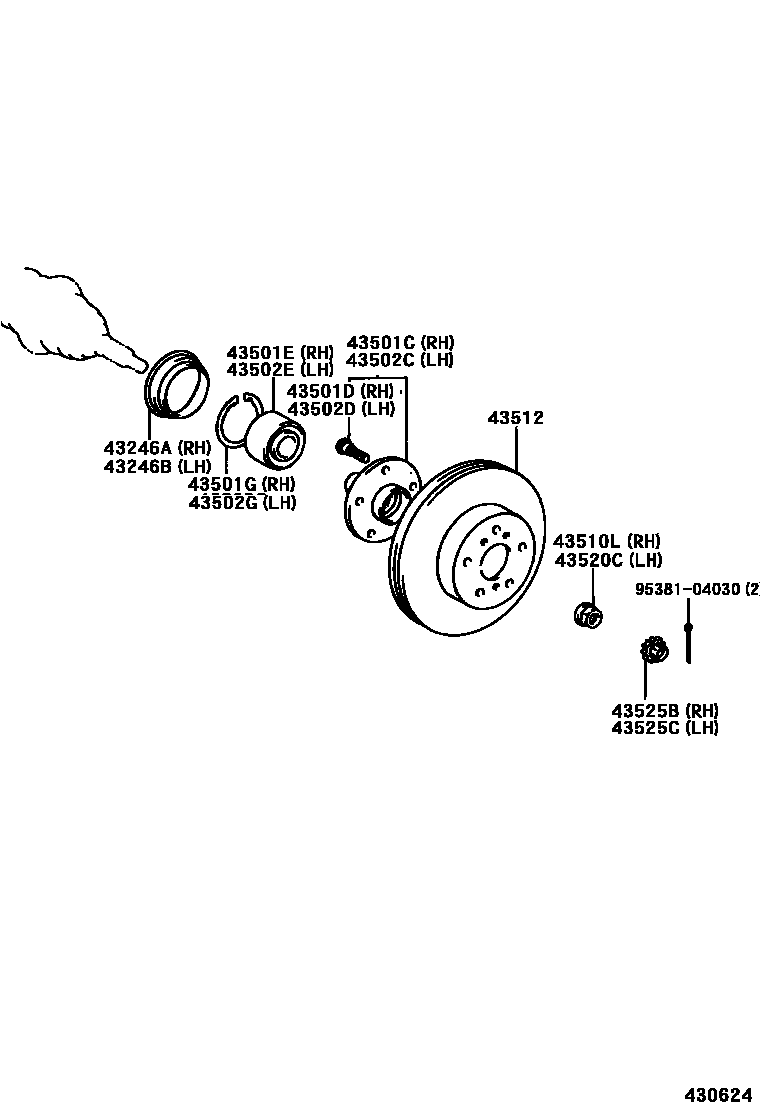

Toyota AVALON — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-YC010iMCX10200004-200309

W(ABS)

main43246-YC020iMCX10..CONQ,VXI200004-200309

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-YC010iMCX10200004-200309

W(ABS)

main43246-YC020iMCX10..CONQ200309

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-YC010iMCX10200309

sub43502-33030

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90089-11034×5iMCX10200004-200309

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36021iMCX10200004-200208

(L)

main90080-36177iMCX10200208-200309

(L)

main90369-43008iMCX10200309

(J)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iMCX10200309

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-YC010iMCX10200309

sub43502-33030

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90089-11034×5iMCX10200004-200309

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36021iMCX10200004-200208

(L)

main90080-36177iMCX10200208-200309

(L)

main90369-43008iMCX10200309

(J)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iMCX10200309

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iMCX10200004-200309

43512DISC, FRONT

main43512-06080×2iMCX10200309-200506

sub43512-33H01

main43512-33041×2iMCX10200004-200309

sub43512-33043

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iMCX10200004-200309

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-YB010iMCX10200004-200309

sub43525-20030

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-YB010iMCX10200004-200309

sub43525-20030

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
