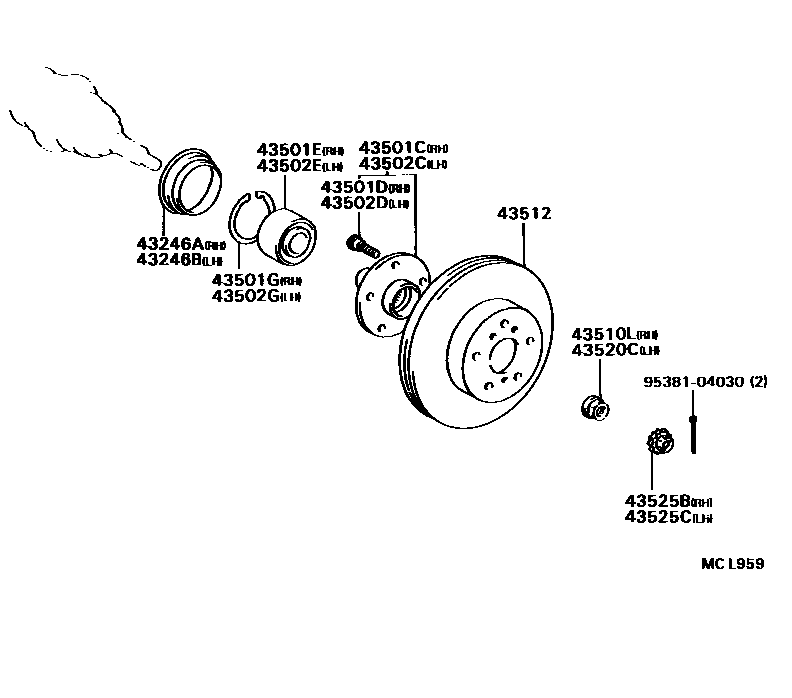

Toyota AVALON — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-AC010iMCX10199508

main43246-AC020iMCX10199508

W(*66)

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-AC010iMCX10199508

main43246-AC020iMCX10199508

W(*66)

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06020iMCX10199508

(L)

main43502-33010iMCX10199508

(J)

sub43502-33030

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMCX10199508

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36021iMCX10199508

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iMCX10199508

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06020iMCX10199508

(L)

main43502-33010iMCX10199508

(J)

sub43502-33030

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMCX10199508

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36021iMCX10199508

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iMCX10199508

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iMCX10199808

main90179-22020iMCX10199508-199808

43512DISC, FRONT

main43512-06020×2iMCX10199508-199709

main43512-06030×2iMCX10199709

sub43512-06031

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iMCX10199808

main90179-22020iMCX10199508-199808

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iMCX10199508

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iMCX10199508

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
