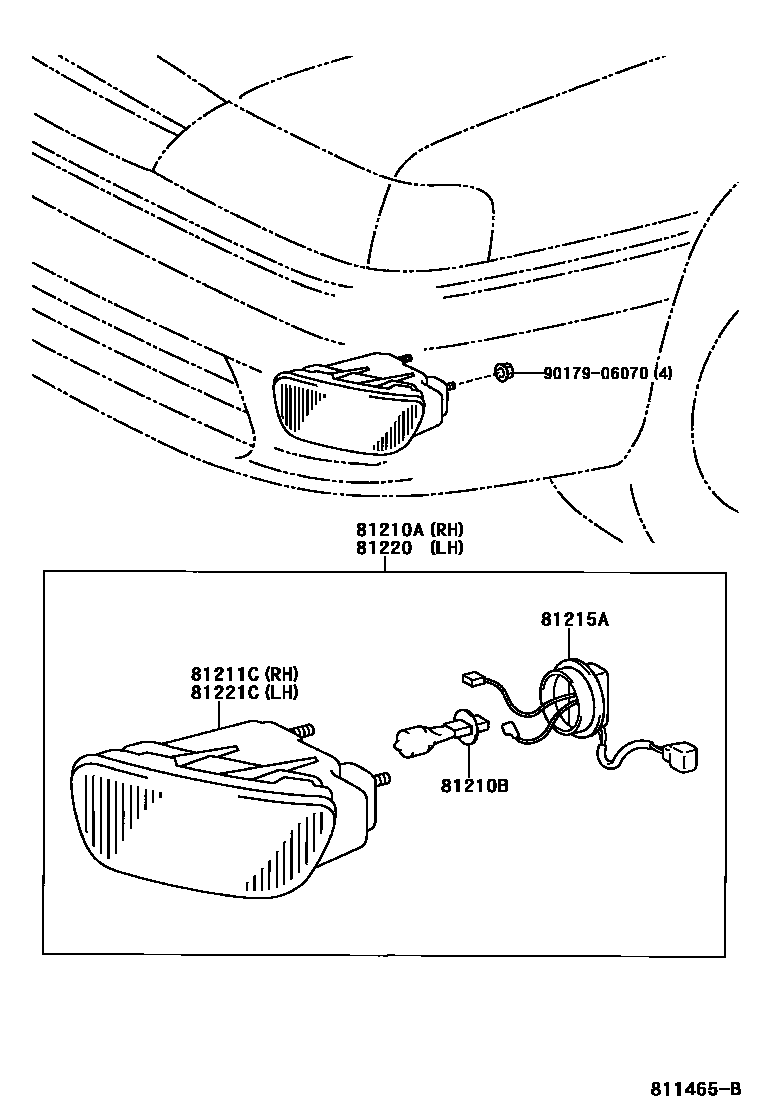

Toyota AVALON — FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-AC010i200004-200309

main81210-YF010i200309-200506

81210BBULB, FOG LAMP

main90981-13047×2i200309

12V 51W,HALOGEN

main90981-13071×2i200004-200309

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-AC010i200004-200309

81215ASOCKET & WIRE, FOG LAMP

main90069-81002×2i200004-200309

81220LAMP ASSY, FOG, LH

main81220-AC010i200004-200309

main81220-YF010i200309-200506

81221CLAMP UNIT, FOG LAMP, LH

main81221-AC010i200004-200309

9017906070

main90179-06070

7 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota AVALON

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, LAMP ASSY, FOG, LH.
