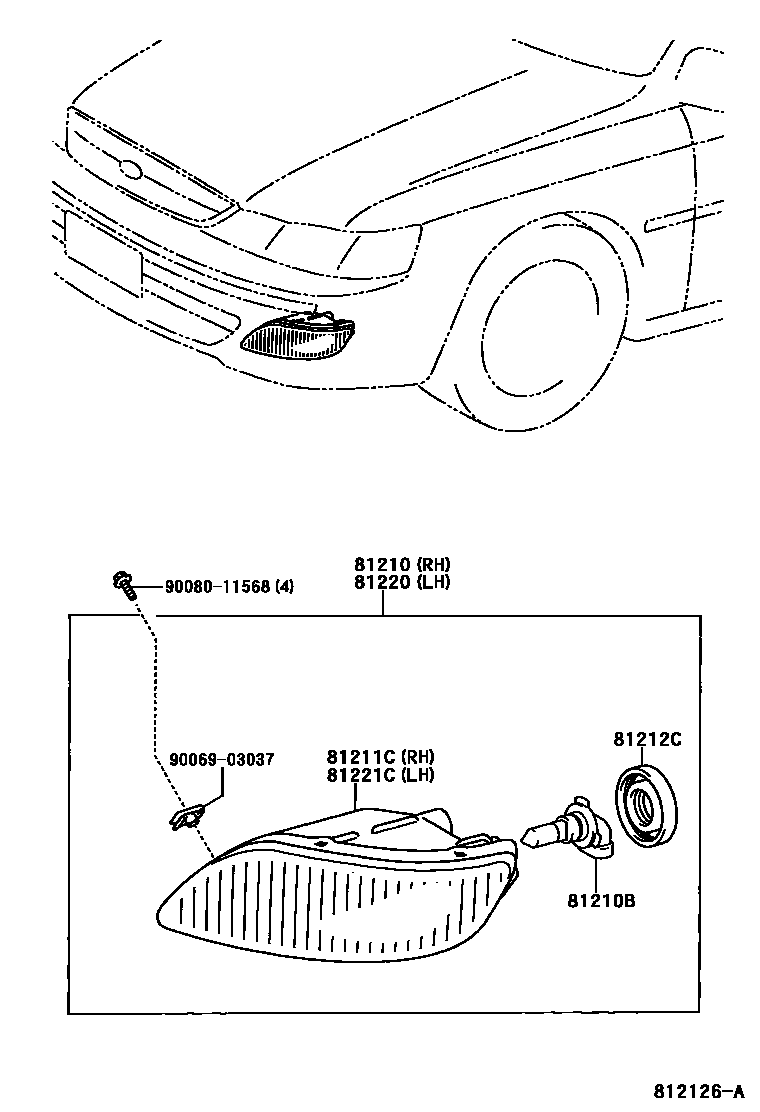

Toyota AVALON — FOG LAMP

81210LAMP ASSY, FOG

main81210-07010i200206-200501

main81210-AC020i199908-200206

81210BBULB, FOG LAMP

main90080-81040×2i199908-200206

12V 51W

main90981-13047×2i200206-200501

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-07010i200206-200501

main81211-AC020i199908-200206

81212CCOVER, FOG LAMP

main81212-06010×2i200206-200501

81220LAMP ASSY, FOG, LH

main81220-07010i200206-200501

main81220-AC020i199908-200206

81221CLAMP UNIT, FOG LAMP, LH

main81221-07010i200206-200501

main81221-AC020i199908-200206

9006903037

main90069-03037

9008011568

main90080-11568

8 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota AVALON

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, LAMP ASSY, FOG, LH.
