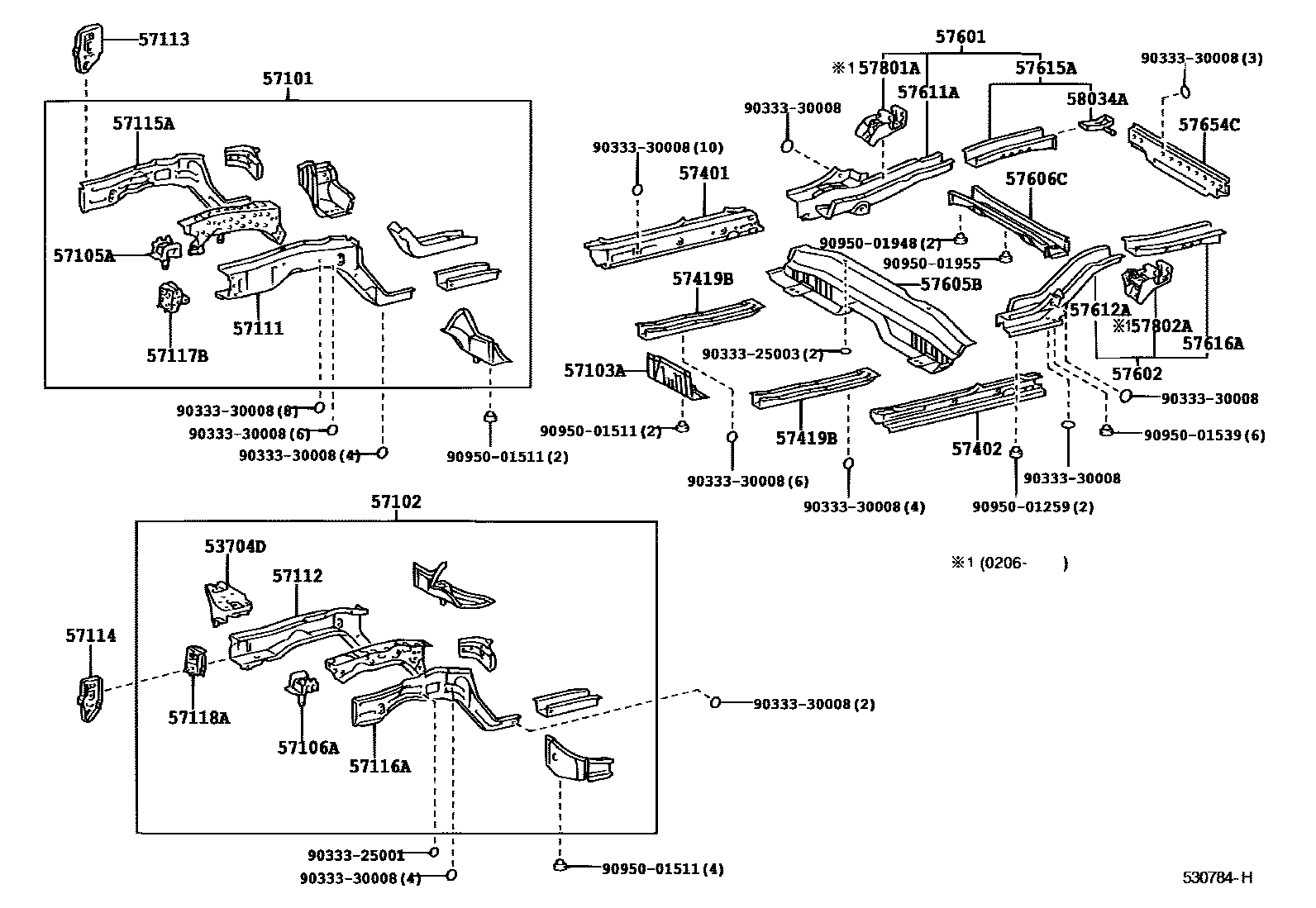

Toyota AVALON — FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
(L)
(J)
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57654CMEMBER, REAR FLOOR CROSS, NO.3
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
58034ABRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
9033325001
main90333-25001
9033325003
main90333-25003
9033330008
main90333-30008
9095001259
main90950-01259
9095001511
main90950-01511
9095001539
main90950-01539
9095001948
main90950-01948
9095001955
main90950-01955
37 parts on this diagram · 1 diagram in section
FLOOR SIDE MEMBER for Toyota AVALON
This section contains 37 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota AVALON. Key components include: SUPPORT SUB-ASSY, BATTERY, LH, MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, CROSSMENBER SUB-ASSY, FLOOR, NO.3, PLATE SUB-ASSY, FRONT SIDE MEMBER, RH.
