Toyota AVALON — FLOOR INSULATOR

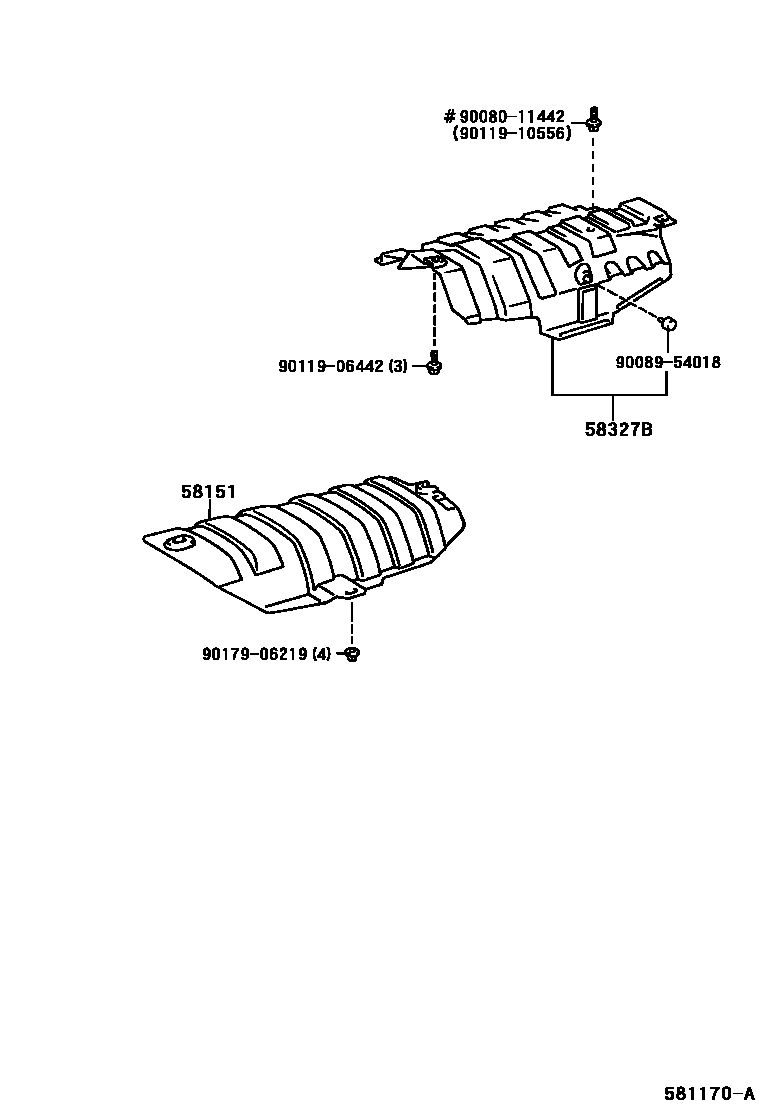

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-YC010i200004-200309

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-YC010i200004-200309

9008011442

main90080-11442

9008954018

main90089-54018

9011906442

main90119-06442

9011910556

main90119-10556

9017906219

main90179-06219

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota AVALON

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT.
