Toyota AVALON — FLOOR INSULATOR

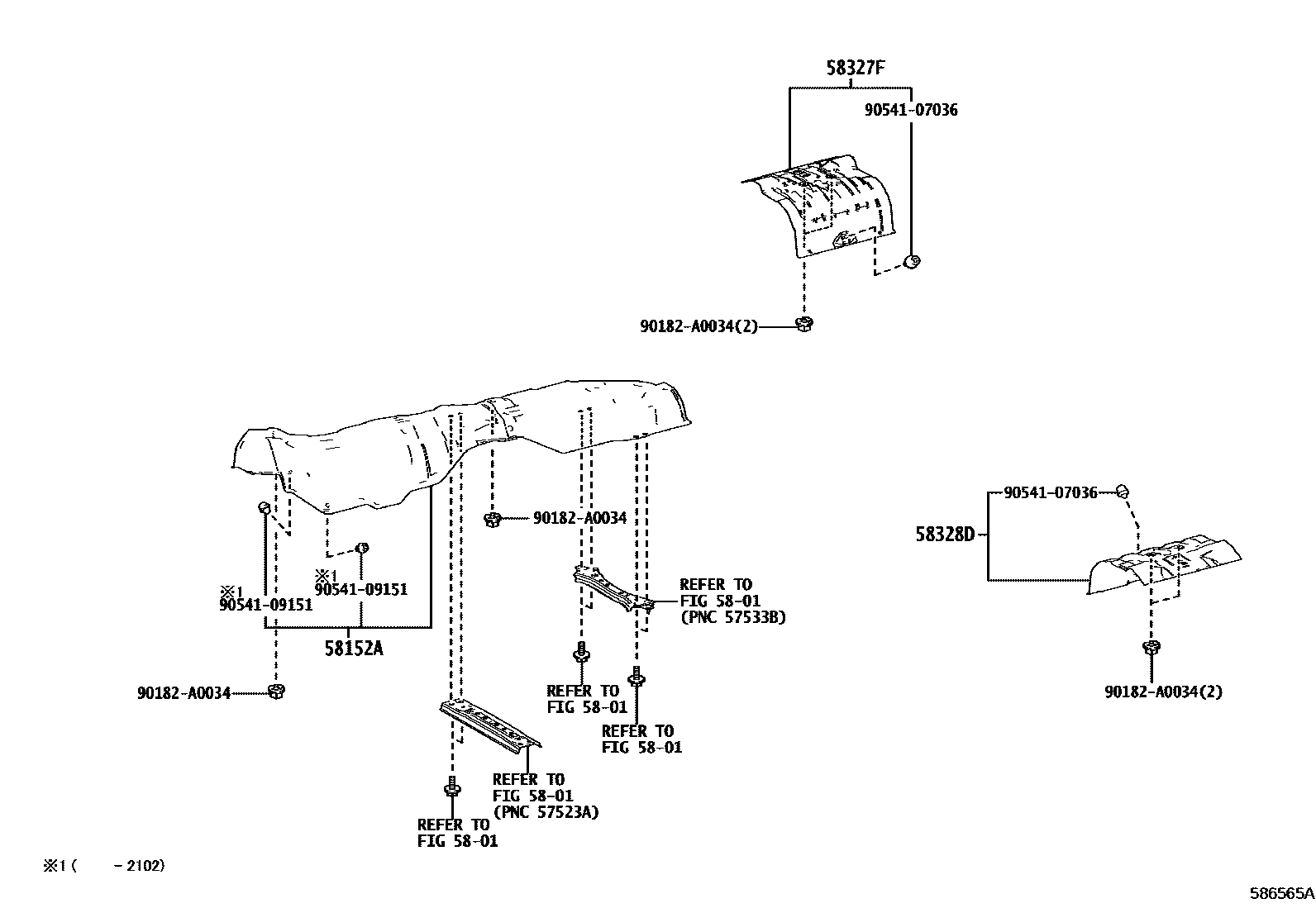

Parts diagram

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-07020i201806-202006

main58152-07021i202007-202008

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58041-06020i201806-202008

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58041-06020i201806-202008

90182A0034

main90182-A0034

9054107036

main90541-07036

9054109151

main90541-09151

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota AVALON

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: FLOOR PAN & LOWER BACK PANEL, INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, MAIN MUFFLER HEAT, RH, INSULATOR, MAIN MUFFLER HEAT, LH.
