Toyota AVALON — FLOOR INSULATOR

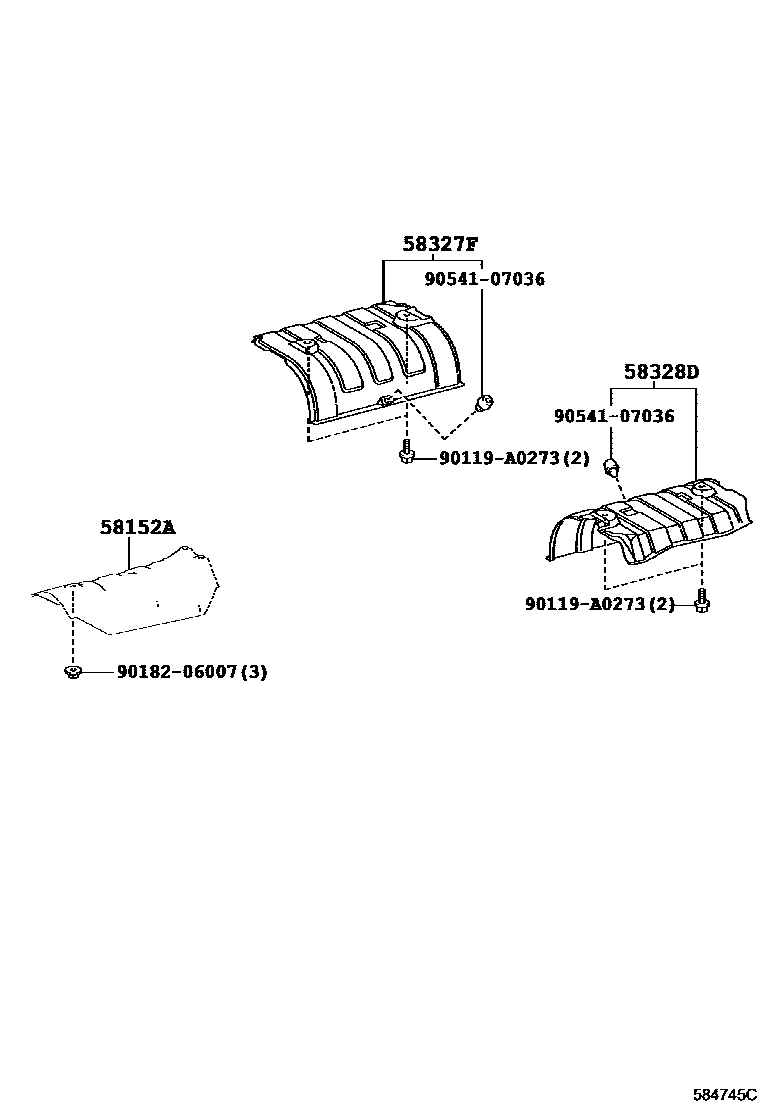

Parts diagram

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-07011i201210-201510

main58152-07012i201612

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58041-06010i201611

main58327-06060i201510-201611

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58042-06010i201611

main58328-06040i201210-201510

90119A0273

main90119-A0273

9018206007

main90182-06007

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota AVALON

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, MAIN MUFFLER HEAT, RH, INSULATOR, MAIN MUFFLER HEAT, LH.
