Toyota AVALON — FLOOR INSULATOR

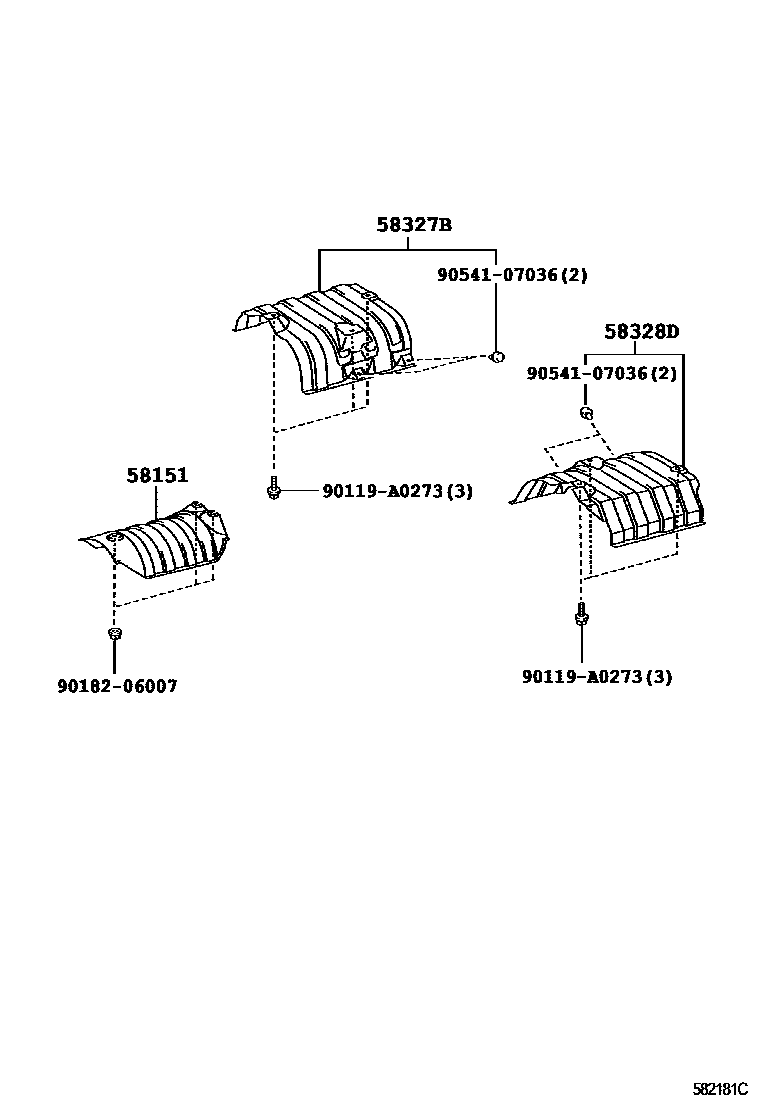

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-07010i200501-200510

main58152-07011i200511-201003

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-07010i200501-200509

main58327-07011i200510-201003

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-07010i200501-200509

main58328-07011i200510-200511

main58328-07012i200511-201003

90119A0273

main90119-A0273

9018206007

main90182-06007

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota AVALON

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT, INSULATOR, MAIN MUFFLER HEAT, LH.
