Toyota AVALON — FLOOR INSULATOR

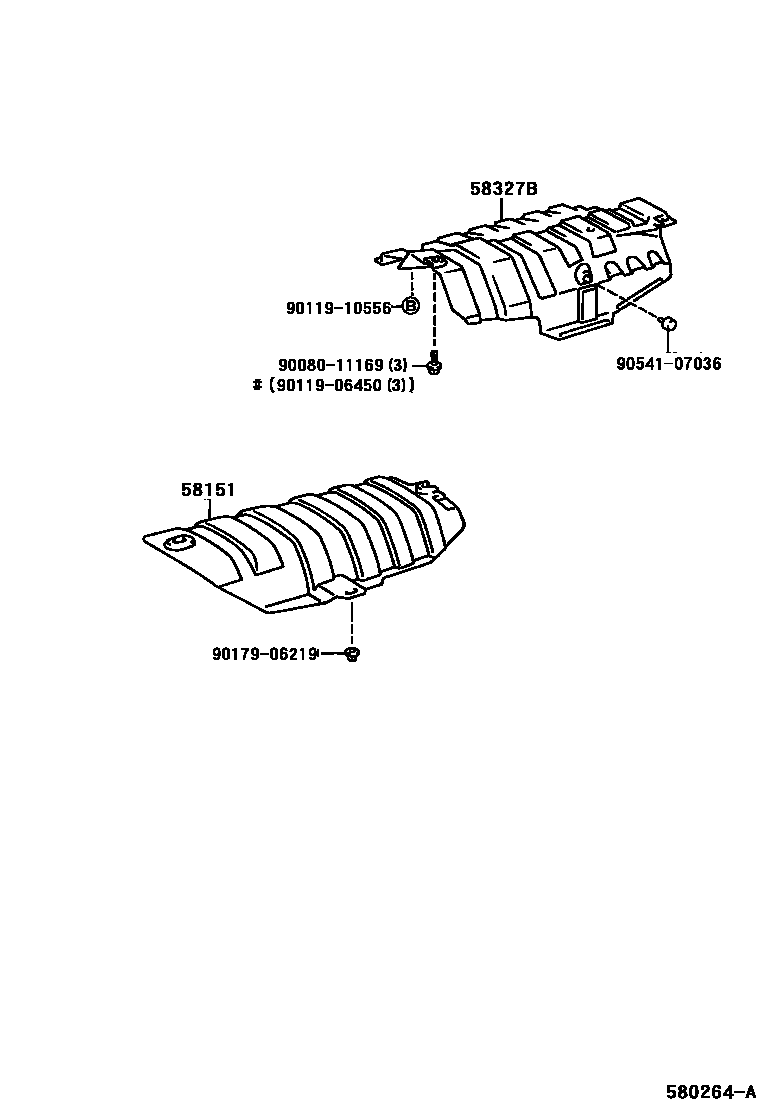

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-AC010i199508-199608

main58152-AC011i199608

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-06010i199608-199709

main58327-06010i199709

(L)

main58327-33010i199709

(J)

main58327-AC010i199508-199608

9008011169

main90080-11169

9011906450

main90119-06450

9011910556

main90119-10556

9017906219

main90179-06219

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota AVALON

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota AVALON. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT.
