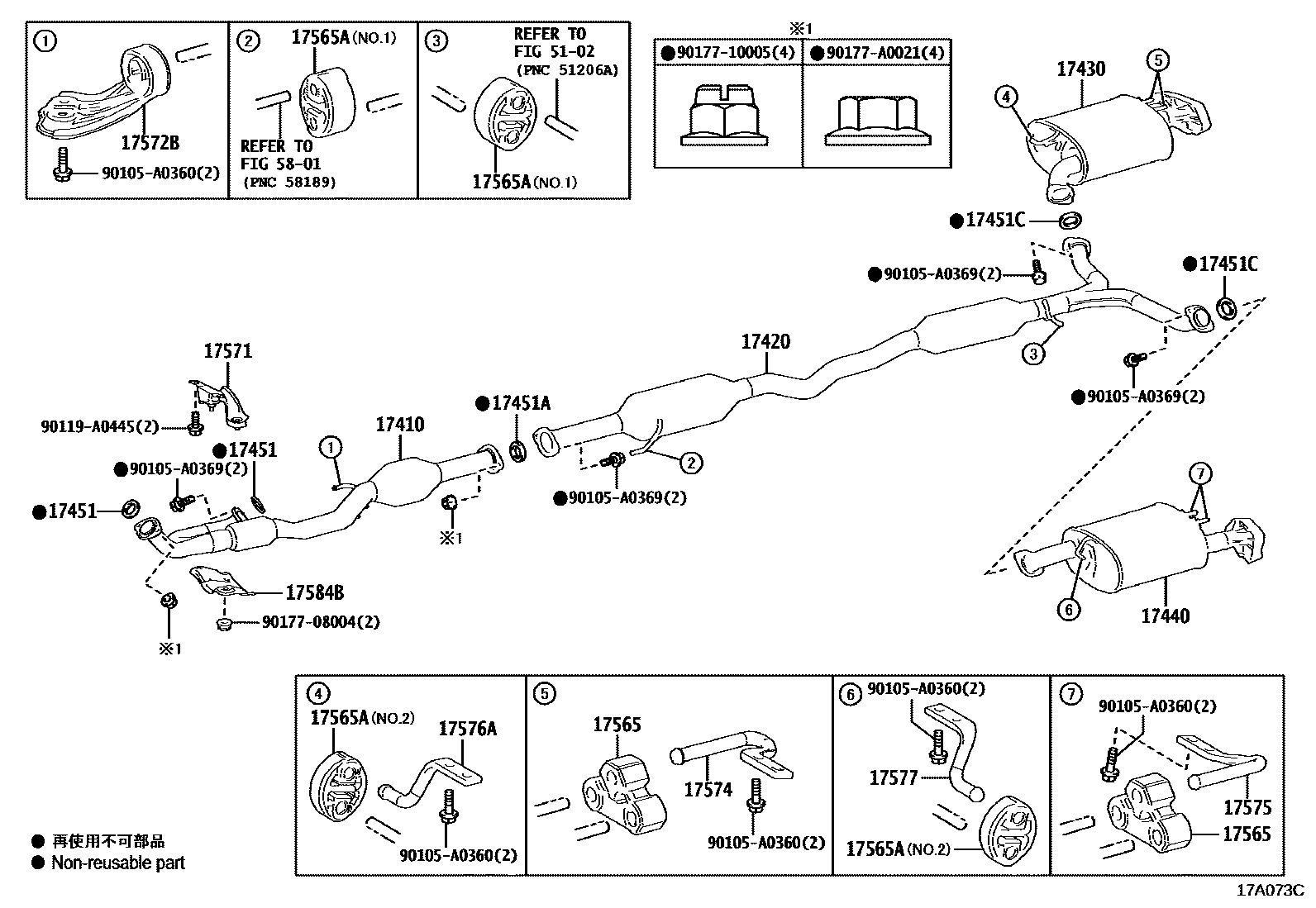

Toyota AVALON — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17440PIPE, EXHAUST TAIL, LH
17451GASKET, EXHAUST PIPE
(L)
(J)
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
(J)
5102SUSPENSION CROSSMEMBER & UNDER COVER
5801FLOOR PAN & LOWER BACK PANEL
90105A0360
main90105-A0360
90105A0369
main90105-A0369
90119A0445
main90119-A0445
9017708004
main90177-08004
9017710005
main90177-10005
90177A0021
main90177-A0021
24 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota AVALON
This section contains 24 genuine Toyota parts for the EXHAUST PIPE system of the Toyota AVALON. Key components include: PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, CENTER, PIPE ASSY, EXHAUST, TAIL, PIPE, EXHAUST TAIL, LH, GASKET, EXHAUST PIPE.
