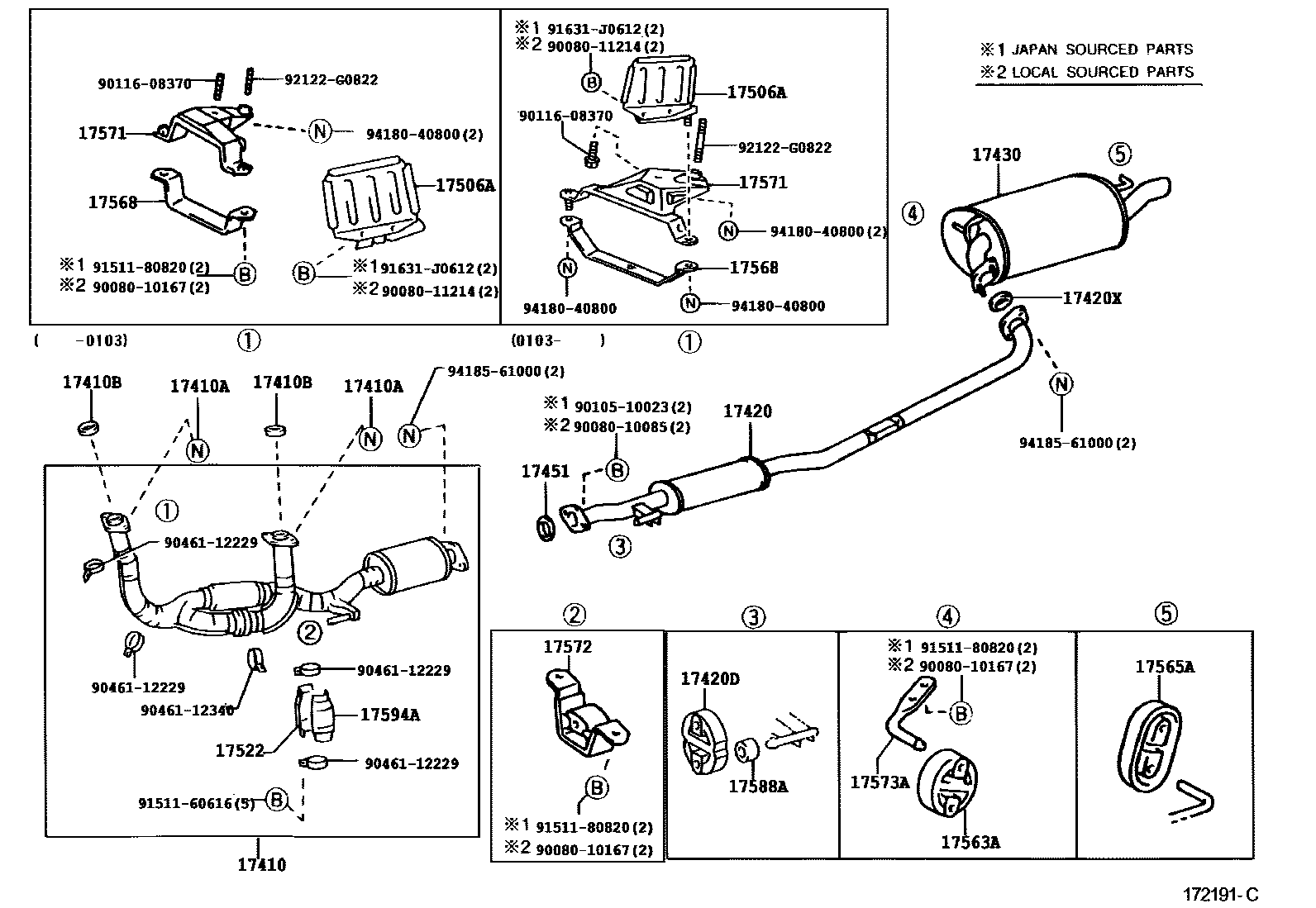

Toyota AVALON — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
17420PIPE ASSY, EXHAUST, CENTER
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
(L)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
(L)
(J)
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
(L)
(J)
17588ASPACER, EXHAUST PIPE HANGER
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
9008010085
main90080-10085
9008010167
main90080-10167
9008011214
main90080-11214
9010510023
main90105-10023
9011608370
main90116-08370
9046112229
main90461-12229
9046112340
main90461-12340
9151160616
main91511-60616
9151180820
main91511-80820
91631J0612
main91631-J0612
92122G0822
main92122-G0822
9418040800
main94180-40800
9418561000
main94185-61000
31 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota AVALON
This section contains 37 genuine Toyota parts for the EXHAUST PIPE system of the Toyota AVALON. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, BOLT OR RING, EXHAUST PIPE CENTER, FRONT.
