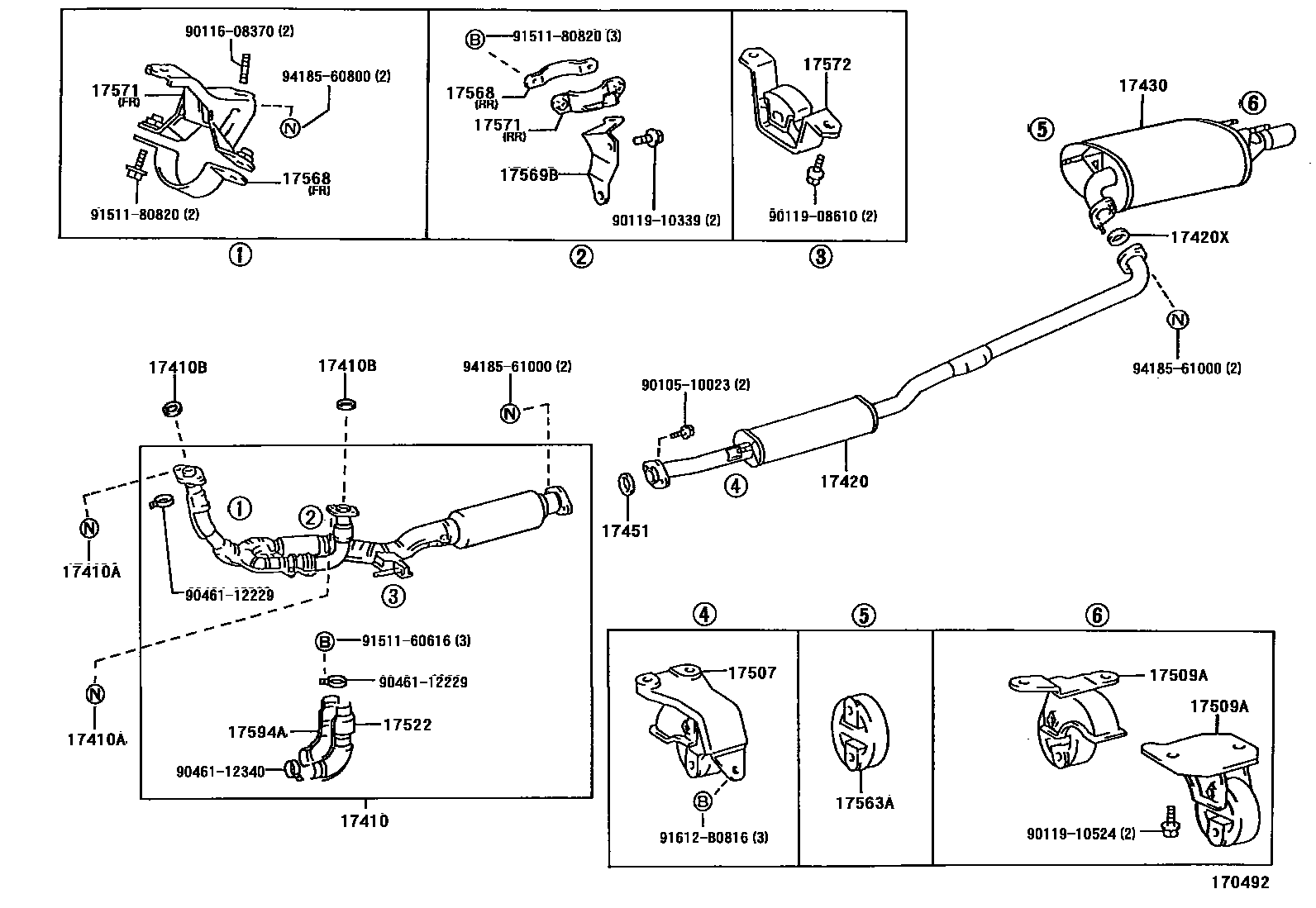

Toyota AVALON — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
LH
RH
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17568STAY, EXHAUST PIPE SUPPORT
FR
(L)
RR
(J)
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
(L)
(J)
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
FR
RR
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
9010510023
main90105-10023
9011608370
main90116-08370
9011908610
main90119-08610
9011910339
main90119-10339
9011910524
main90119-10524
9046112229
main90461-12229
9046112340
main90461-12340
9151160616
main91511-60616
9151180820
main91511-80820
91612B0816
main91612-B0816
9418560800
main94185-60800
9418561000
main94185-61000
28 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota AVALON
This section contains 39 genuine Toyota parts for the EXHAUST PIPE system of the Toyota AVALON. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER.
