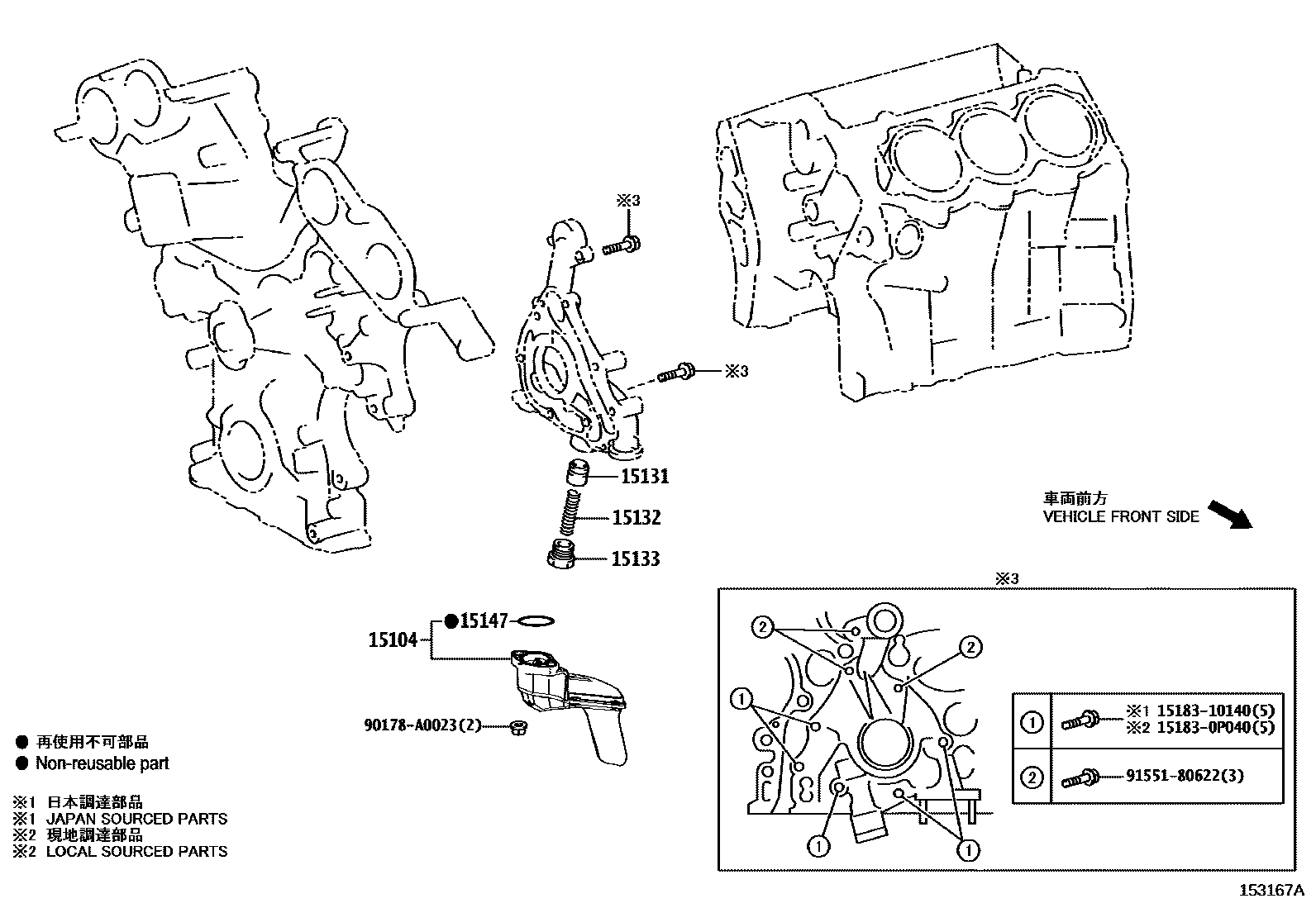

Toyota AVALON — ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-0P010i201806-202008

15131VALVE, OIL PUMP RELIEF

main15131-31100i201806-202008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-31100i201806-202008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-31100i201806-202008

15147GASKET, OIL STRAINER

main15147-0P030i201806-202008

151830P040BOLT, UNION(FOR OIL PUMP)

main15183-0P040

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

90178A0023

main90178-A0023

9155180622

main91551-80622

9 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota AVALON

This section contains 9 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota AVALON. Key components include: STRAINER SUB-ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE, PLUG, OIL PUMP RELIEF VALVE, GASKET, OIL STRAINER.
