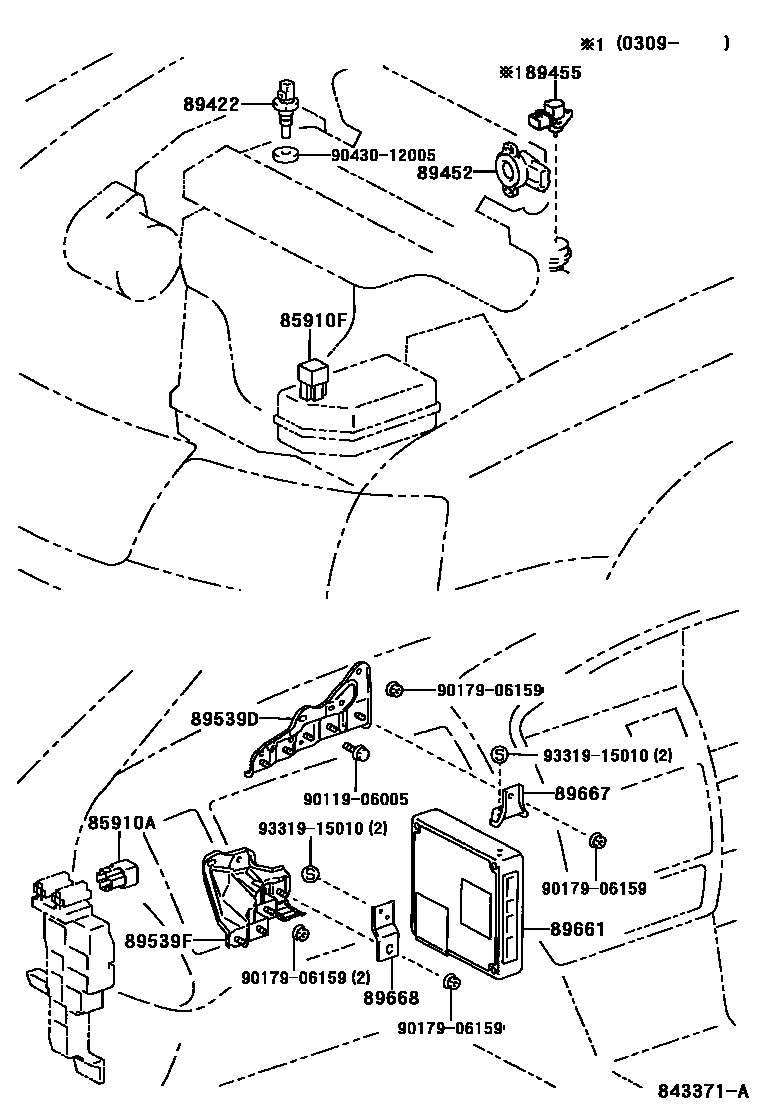

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
P/N LABEL=8942233020
P/N LABEL=8942235010
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89455SENSOR, EGR VALVE POSITION
89539DBRACKET, COMPUTER
89539FBRACKET, COMPUTER
89661COMPUTER, ENGINE CONTROL
W(LPG)
W(LPG)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906005
main90119-06005
9017906159
main90179-06159
9043012005
main90430-12005
9331915010
main93319-15010
14 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota AVALON
This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota AVALON. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, THROTTLE POSITION (FOR E.F.I.), SENSOR, EGR VALVE POSITION.
