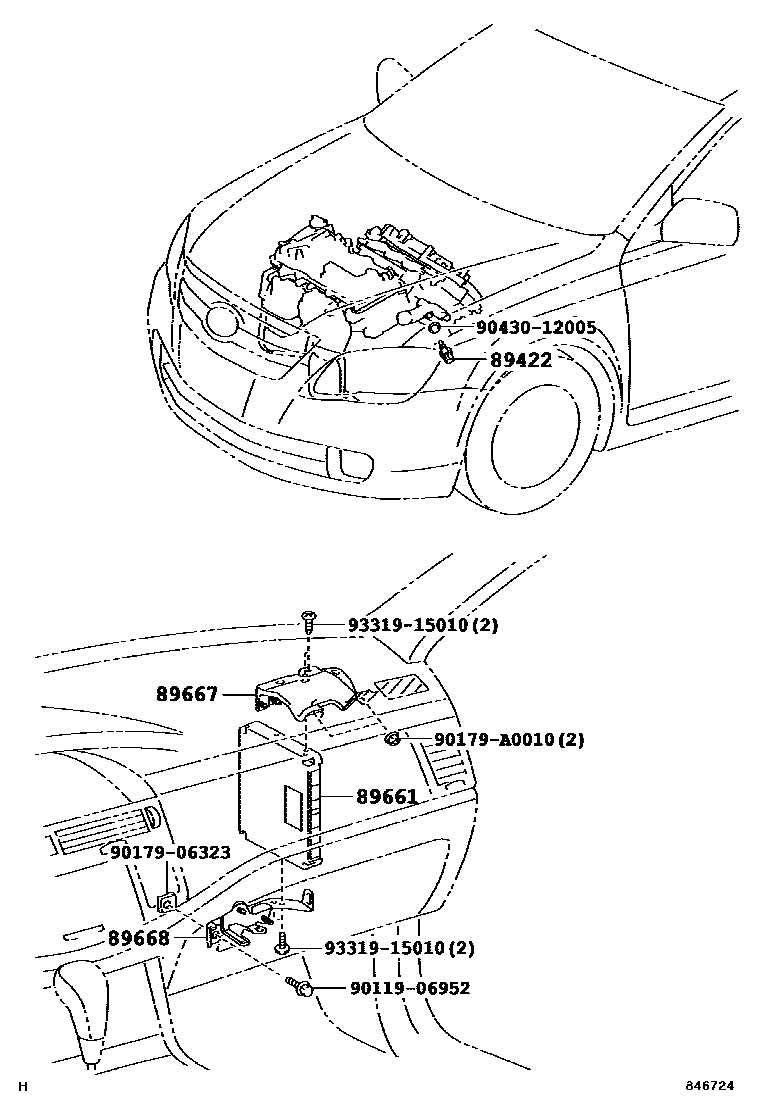

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iGSX30200510-200612

MARK 89422-06010

main89422-33030iGSX30200510-200612

MARK 89422-33030

89661COMPUTER, ENGINE CONTROL

main89661-07420iGSX30200501-200508

main89661-07460iGSX30200508-200707

main89661-07490iGSX30200707-201003

main89661-07580iGSX30201012

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06100iGSX30200707-201003

main89667-07070iGSX30200501-200707

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06100iGSX30200707-201003

main89668-07060iGSX30200501-200707

9011906952

main90119-06952

9017906323

main90179-06323

90179A0010

main90179-A0010

9043012005

main90430-12005

9331915010

main93319-15010

9 parts on this diagram · 2 diagrams in section
