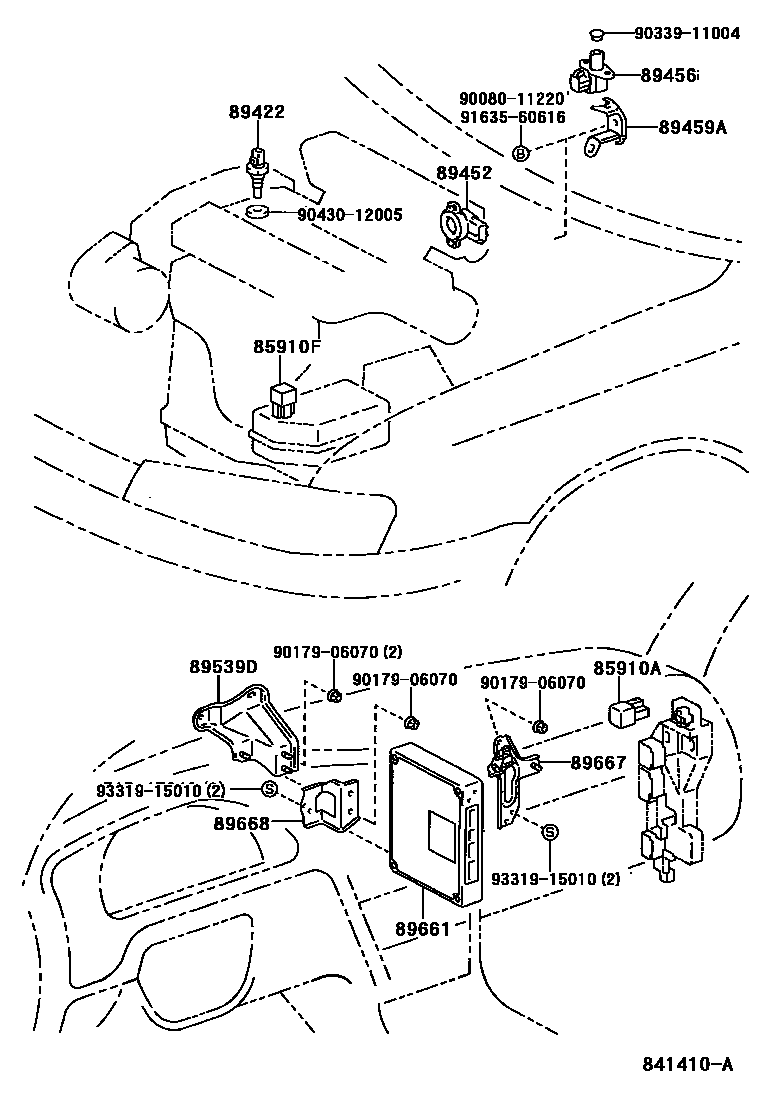

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90084-98009iMCX10199508-199908

BOSCH

main90987-02009iMCX10199508-199908

DENSO

85910FRELAY, COMPUTER (FOR EFI)

main90084-98009iMCX10199508-199908

BOSCH

main90987-02009iMCX10199508-199908

DENSO

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCX10199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iMCX10199608

main89452-22090iMCX10199508-199608

89456RESISTOR, VARIABLE

main89456-30010iMCX10199608

main89456-50010iMCX10199508-199608

89459ABRACKET, VARIABLE RESISTOR

main89459-41010iMCX10199508

89539DBRACKET, COMPUTER

main89539-33050iMCX10199508

89661COMPUTER, ENGINE CONTROL

main89661-07070iMCX10199508-199608

main89661-07110iMCX10199608-199709

main89661-07190iMCX10199709

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-07020iMCX10199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-07020iMCX10199508

9008011220

main90080-11220

9017906070

main90179-06070

9033911004

main90339-11004

9043012005

main90430-12005

9163560616

main91635-60616

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
