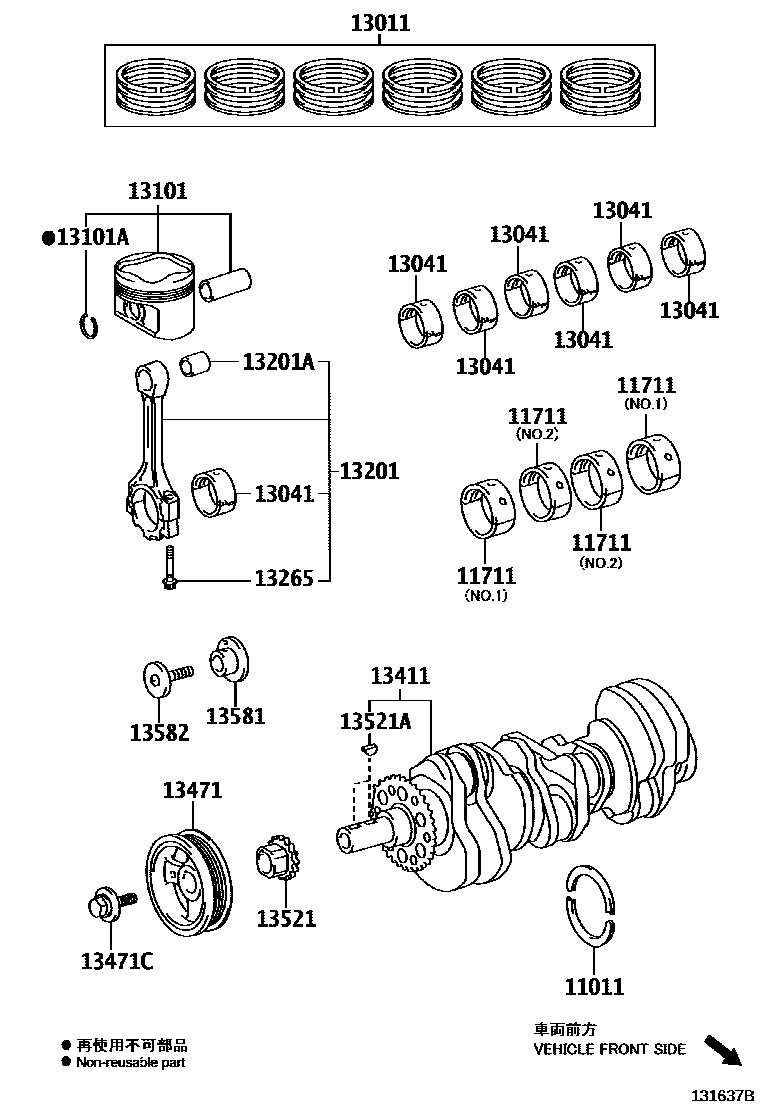

Toyota AVALON — CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-31060i201210-201411

STD

main11011-31080i201412-201510

STD

11711BEARING, CRANKSHAFT

main11071-0P051-01×2i201210-201503

MARK1,NO.2,(L):REFER R/M

main11071-0P051-02×2i201210-201503

MARK2,NO.2,(L):REFER R/M

main11071-0P051-03×2i201210-201503

MARK3,NO.2,(L):REFER R/M

main11071-0P051-04×2i201210-201503

MARK4,NO.2,(L):REFER R/M

main11071-0P051-05×2i201210-201503

MARK5,NO.2,(L):REFER R/M

main11071-0P060-01×2i201510

MARK 1,NO.2,(L):REFER R/M

main11071-0P060-02×2i201503-201510

MARK 2,NO.2,(L):REFER R/M

main11071-0P060-03×2i201510

MARK 3,NO.2,(L):REFER R/M

main11071-0P060-04×2i201503-201510

MARK 4,NO.2,(L):REFER R/M

main11071-0P060-05×2i201510

MARK 5,NO.2,(L):REFER R/M

main11071-31031-01×2i201210-201502

MARK1,NO.2,(J):REFER R/M

main11071-31031-02×2i201210-201502

MARK2,NO.2,(J):REFER R/M

main11071-31031-03×2i201210-201502

MARK3,NO.2,(J):REFER R/M

main11071-31031-04×2i201210-201502

MARK4,NO.2,(J):REFER R/M

main11071-31031-05×2i201210-201502

MARK5,NO.2,(J):REFER R/M

main11071-31060-01×2i201503-201510

MARK 1,NO.2,(J):REFER R/M

main11071-31060-02×2i201503-201510

MARK 2,NO.2,(J):REFER R/M

main11071-31060-03×2i201503-201510

MARK 3,NO.2,(J):REFER R/M

main11071-31060-04×2i201503-201510

MARK 4,NO.2,(J):REFER R/M

main11071-31060-05×2i201503-201510

MARK 5,NO.2,(J):REFER R/M

main11071-31060-A1×2i201510

MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M

main11071-31060-B2×2i201510

MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M

main11071-31060-C3×2i201510

MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M

main11071-31060-D4×2i201510

MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M

main11071-31060-E5×2i201510

MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M

main11701-0P051-01×2i201210-201503

MARK1,NO.1,(L):REFER R/M

main11701-0P051-02×2i201210-201503

MARK2,NO.1,(L):REFER R/M

main11701-0P051-03×2i201210-201503

MARK3,NO.1,(L):REFER R/M

main11701-0P051-04×2i201210-201503

MARK4,NO.1,(L):REFER R/M

main11701-0P051-05×2i201210-201503

MARK5,NO.1,(L):REFER R/M

main11701-0P060-01×2i201510

MARK 1,NO.1,(L):REFER R/M

main11701-0P060-02×2i201510

MARK 2,NO.1,(L):REFER R/M

main11701-0P060-03×2i201503-201510

MARK 3,NO.1,(L):REFER R/M

main11701-0P060-04×2i201510

MARK 4,NO.1,(L):REFER R/M

main11701-0P060-05×2i201503-201510

MARK 5,NO.1,(L):REFER R/M

main11701-31090-01×2i201210-201502

MARK 1,NO.1,(J):REFER R/M

main11701-31090-02×2i201210-201502

MARK 2,NO.1,(J):REFER R/M

main11701-31090-03×2i201210-201502

MARK 3,NO.1,(J):REFER R/M

main11701-31090-04×2i201210-201502

MARK 4,NO.1,(J):REFER R/M

main11701-31090-05×2i201210-201502

MARK 5,NO.1,(J):REFER R/M

main11701-31100-01×2i201503-201510

MARK 1,NO.1,(J):REFER R/M

main11701-31100-02×2i201503-201510

MARK 2,NO.1,(J):REFER R/M

main11701-31100-03×2i201503-201510

MARK 3,NO.1,(J):REFER R/M

main11701-31100-04×2i201503-201510

MARK 4,NO.1,(J):REFER R/M

main11701-31100-05×2i201503-201510

MARK 5,NO.1,(J):REFER R/M

main11701-31100-A1×2i201510

MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M

main11701-31100-B2×2i201510

MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M

main11701-31100-C3×2i201510

MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M

main11701-31100-D4×2i201510

MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M

main11701-31100-E5×2i201510

MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M

13011RING SET, PISTON

main13011-0P040i201210-201507

STD

main13011-0P060i201507-201510

STD

13041BEARING, CONNECTING ROD

main13041-0P081-01×6i201510-201605

MARK1,REFER R/M

main13041-0P081-02×6i201210-201510

MARK2,(L):REFER R/M

main13041-0P081-03×6i201210-201510

MARK3,(L):REFER R/M

main13041-0P081-04×6i201510-201605

MARK4,REFER R/M

main13041-0P090-01×6i201606

MARK 1,(L):REFER R/M

main13041-0P090-02×6i201606

MARK 2,(L):REFER R/M

main13041-0P090-03×6i201606

MARK 3,(L):REFER R/M

main13041-0P090-04×6i201606

MARK 4,(L):REFER R/M

main13041-31100-01×6i201606

MARK 1,(J):REFER R/M

main13041-31100-02×6i201606

MARK 2,(J):REFER R/M

main13041-31100-03×6i201606

MARK 3,(J):REFER R/M

main13041-31100-04×6i201606

MARK 4,(J):REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0P053×6i201210-201510

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-A0004×12i201210-201510

13201ROD SUB-ASSY, CONNECTING

main13201-09830×6i201210-201510

(L)

main13201-09831×6i201606

(L)

main13201-39135-A0×6i201210-201510

MARK A,(J),REFER R/M

main13201-39135-B0×6i201510-201605

MARK B,(J),REFER R/M

main13201-39135-C0×6i201210-201510

MARK C,(J),REFER R/M

main13201-39137-A0×6i201606

MARK A,(J),REFER R/M

main13201-39137-B0×6i201606

MARK B,(J),REFER R/M

main13201-39137-C0×6i201606

MARK C,(J),REFER R/M

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144×6i201210-201510

13265BOLT, CONNECTING ROD

main13265-28010×12i201210-201510

13411CRANKSHAFT

main13401-0P030i201210-201507

(L)

main13401-0P031i201507-201510

(L)

main13401-31040i201210-201409

(J)

main13401-31041i201510

(J)

13471PULLEY, CRANKSHAFT

main13470-31030i201210-201510

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i201210-201412

main90119-16020i201501-201510

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0P011i201210-201510

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i201210-201510

13581SHAFT, IDLE GEAR, NO.1

main13581-AD010i201210-201510

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i201210-201510

16 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota AVALON

This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota AVALON. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
