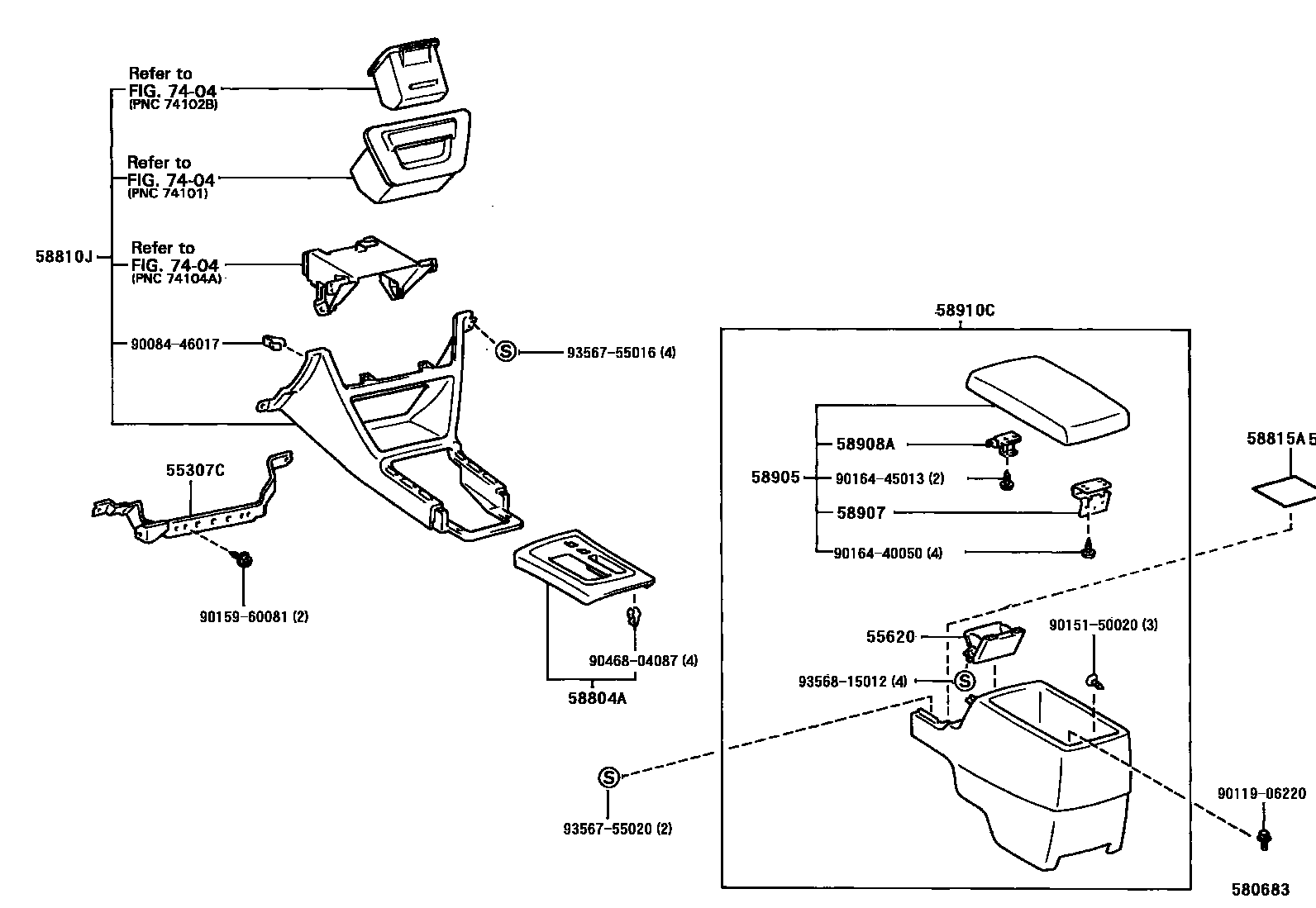

Toyota AVALON — CONSOLE BOX & BRACKET
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55620HOLDER ASSY, INSTRUMENT PANEL CUP
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
LT. ADOBE,TRIM42
58804APANEL SUB-ASSY, CONSOLE, UPPER
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
ADOBE,TRIM42
58810JBOX ASSY, CONSOLE
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
58815ACARPET, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
LT. ADOBE,TRIM42
9008446017
main90084-46017
9011906220
main90119-06220
9015150020
main90151-50020
9015960081
main90159-60081
9016440050
main90164-40050
9016445013
main90164-45013
9046804087
main90468-04087
9356755016
main93567-55016
9356755020
main93567-55020
9356815012
main93568-15012
19 parts on this diagram · 1 diagram in section
