Toyota AVALON — CLEARANCE & BACK SONAR

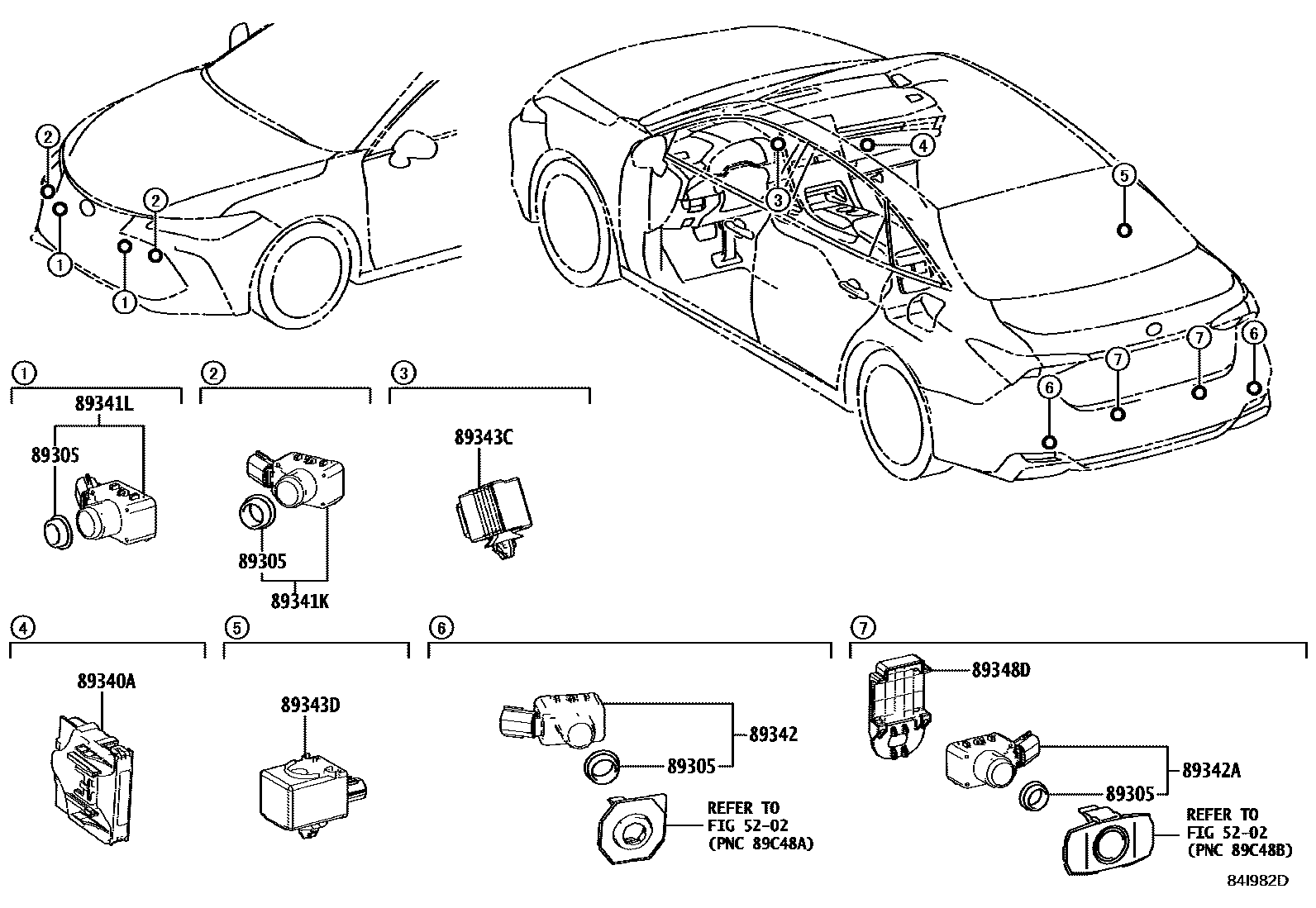

Parts diagram
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-47010i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-07020i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR)
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-06070-B8×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),DK. GRAY,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,4X9 ,8W6
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-06070-C3×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),DUMMY-MAT BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,4X9 ,8W6
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-06070-A1×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),PLATINUM WHITE PEARL MC.,089
main89341-06070-B1×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),SILVER ME.,1J9
main89341-06070-B2×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLATE GRAY ME.,1K4
main89341-06070-C0×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218
main89341-06070-D0×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),RED MC.,3T3
main89341-06070-D3×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),EMOTIONAL RED 2,3U5
main89341-06070-E0×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),GRAPHITE ME.,4X7
main89341-06070-E1×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),BLACKISH BROWN MC.,4X9
main89341-06070-J2×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),DK.BLUE M.M.,8W6
main89341-06070-J6×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. BLUE MC.,8X8
main89341-06070-P3×2i202108
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ASH GRAY ME.,1K6
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-06070-A1×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),PLATINUM WHITE PEARL MC.,089
main89341-06070-B1×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),SILVER ME.,1J9
main89341-06070-B2×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),SLATE GRAY ME.,1K4
main89341-06070-C0×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218
main89341-06070-D0×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),RED MC.,3T3
main89341-06070-D3×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),EMOTIONAL RED 2,3U5
main89341-06070-E0×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),GRAPHITE ME.,4X7
main89341-06070-E1×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR),BLACKISH BROWN MC.,4X9
main89341-06070-J2×2i201908-202008
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),DK.BLUE M.M.,8W6
main89341-06070-J6×2i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. BLUE MC.,8X8
main89341-06070-P3×2i202108
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ASH GRAY ME.,1K6
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010i202008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
89343DBUZZER, CLEARANCE WARNING, NO.2
main89343-12020i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR)
89348DCLIP, ULTRASONIC SENSOR
main89348-06100×2i201806-201908
CLEARANCE & BACK SONAR-WITH(REAR)

10 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota AVALON

This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota AVALON. Key components include: REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER, SENSOR, ULTRASONIC, FRONT CENTER.
