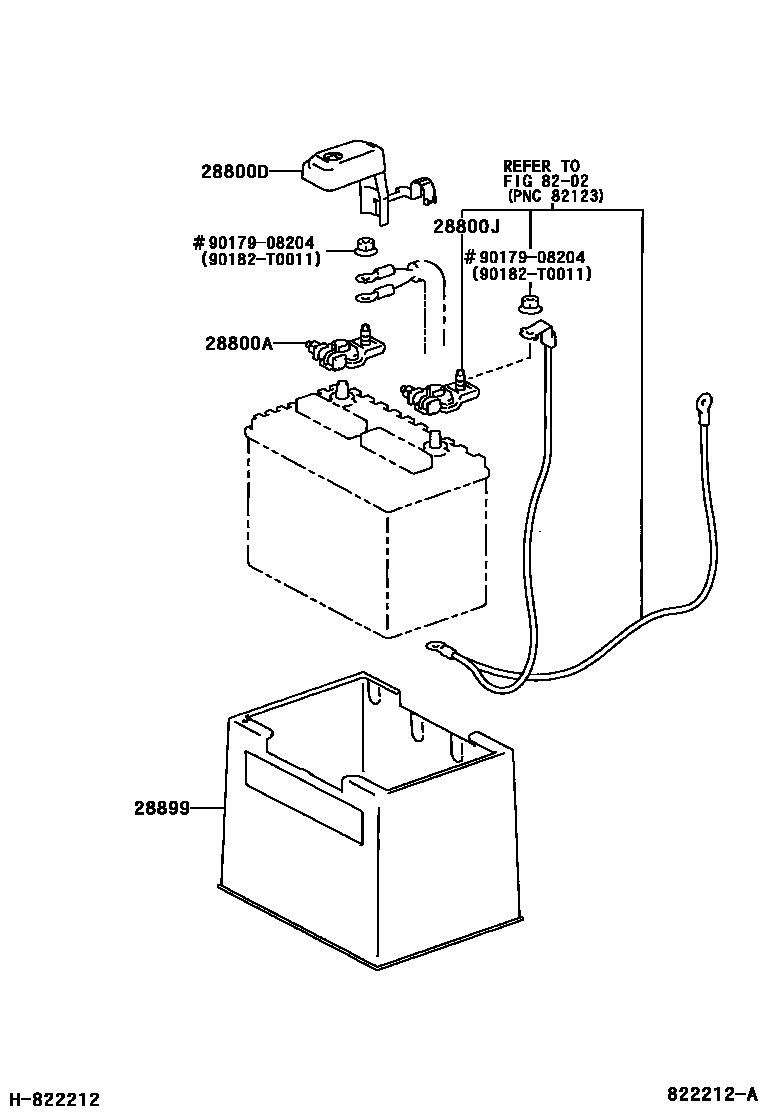

Toyota AVALON — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i200004-200309

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i200004-200309

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i200004-200309

28899INSULATOR, BATTERY

main28899-YC011i200004-200309

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

90182T0011

main90182-T0011

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota AVALON

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota AVALON. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, INSULATOR, BATTERY, WIRING & CLAMP.
