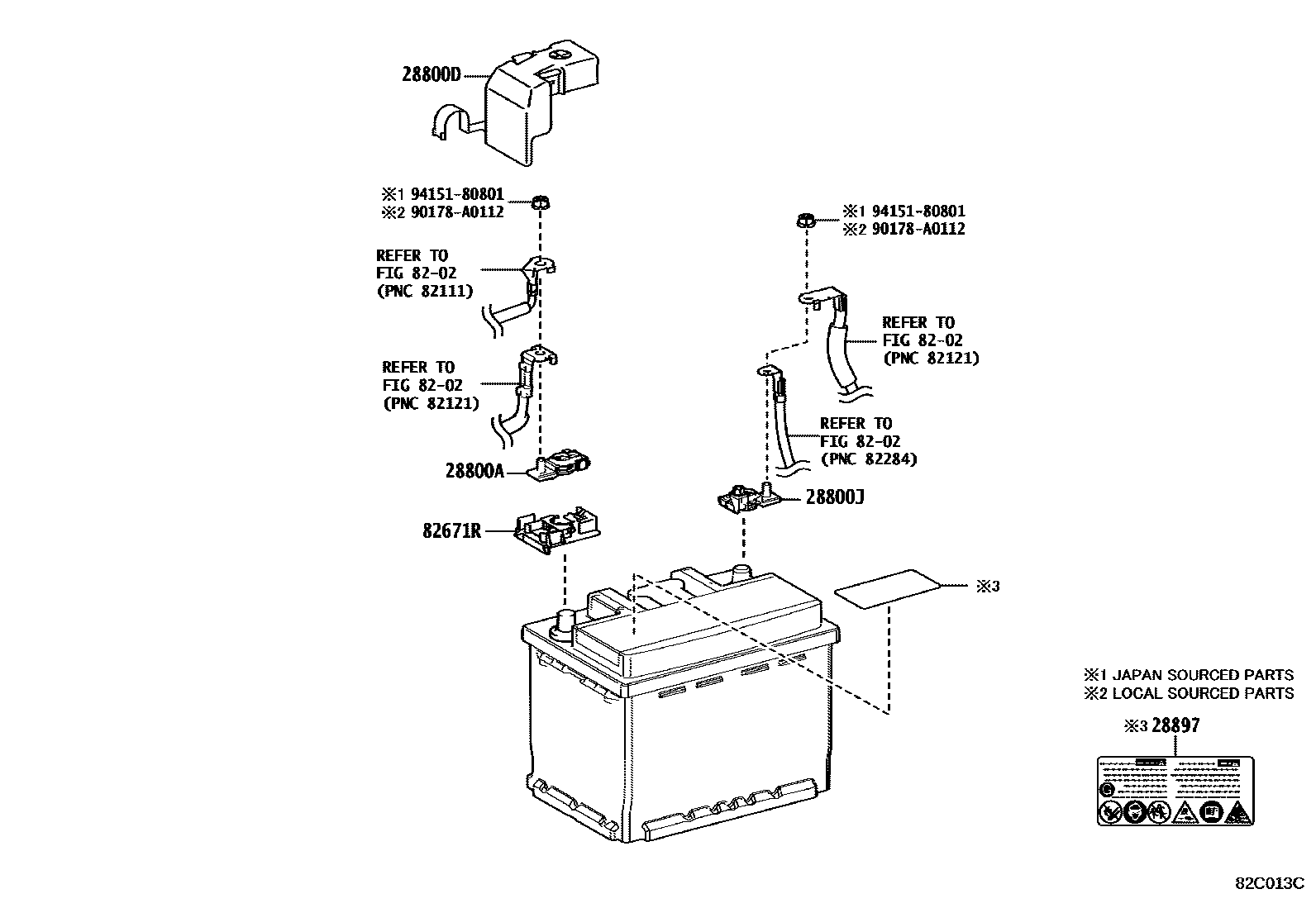

Toyota AVALON — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05072i201806-202008

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33440i201806-202008

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i201806-202008

28897PLATE, BATTERY CAUTION

main28897-36040i201806-202008

8202WIRING & CLAMP

→ Go to FIG 82-02

82671RSTOPPER, BATTERY TERMINAL

main82671-33100i201806-202008

90178A0112

main90178-A0112

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota AVALON

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota AVALON. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, PLATE, BATTERY CAUTION, WIRING & CLAMP.
