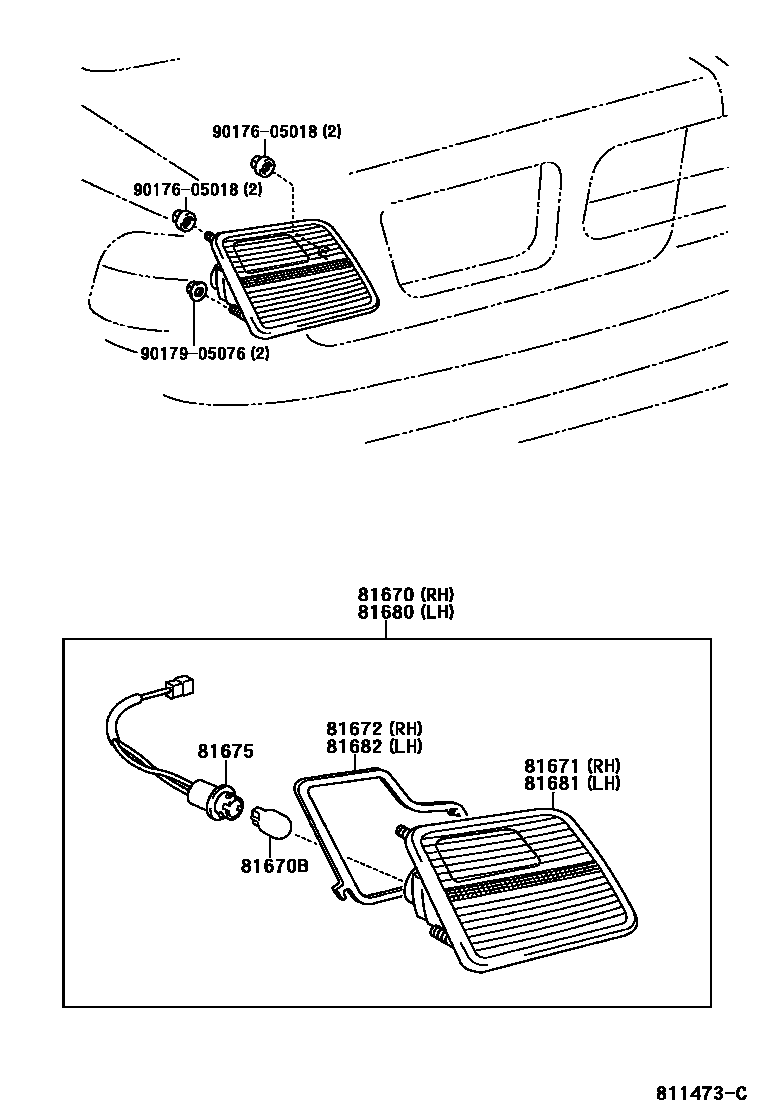

Toyota AVALON — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-07010i200004-200309

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2i200004-200309

12V 16W

main90981-11059×2i200309

12V 16W

81671LENS, BACK-UP LAMP, RH

main81671-AC010i200004-200309

81672GASKET, BACK-UP LAMP LENS, RH

main81672-AC010i200004-200309

81675SOCKET & WIRE, BACK-UP LAMP

main81675-07010×2i200004-200309

81680LAMP ASSY, BACK UP, LH

main81680-07010i200004-200309

81681LENS, BACK-UP LAMP, LH

main81681-AC010i200004-200309

81682GASKET, BACK UP LAMP LENS, LH

main81682-AC010i200004-200309

9017605018

main90176-05018

9017905076

main90179-05076

10 parts on this diagram · 2 diagrams in section

BACK UP LAMP for Toyota AVALON

This section contains 15 genuine Toyota parts for the BACK UP LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, LENS & BODY, BACK-UP LAMP, GASKET, BACK-UP LAMP LENS, RH.
