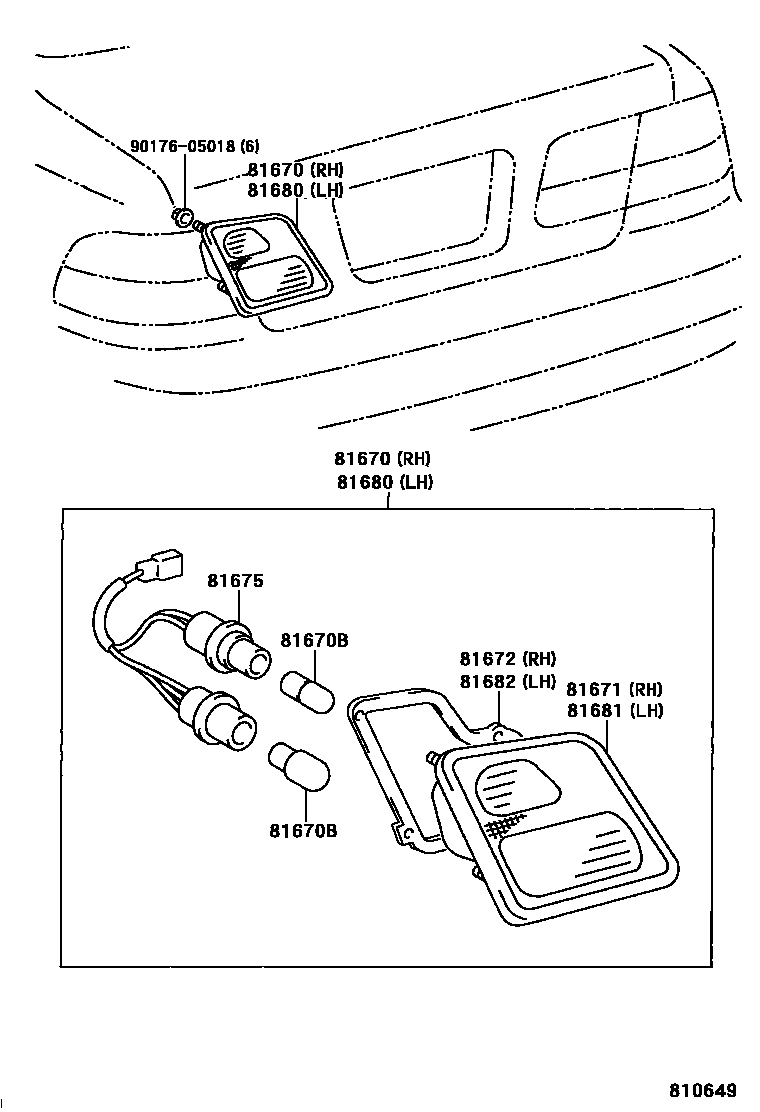

Toyota AVALON — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-AC010i199709

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2i199709

12V 16W

main90981-13051×2i199709

12V 21/5W

81671LENS, BACK-UP LAMP, RH

main81671-AC010i199709

81672GASKET, BACK-UP LAMP LENS, RH

main81672-AC010i199709

81675SOCKET & WIRE, BACK-UP LAMP

main81675-AC010×2i199709

81680LAMP ASSY, BACK UP, LH

main81680-AC010i199709

81681LENS, BACK-UP LAMP, LH

main81681-AC010i199709

81682GASKET, BACK UP LAMP LENS, LH

main81682-AC010i199709

9017605018

main90176-05018

9 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota AVALON

This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, SOCKET & WIRE, BACK-UP LAMP.
