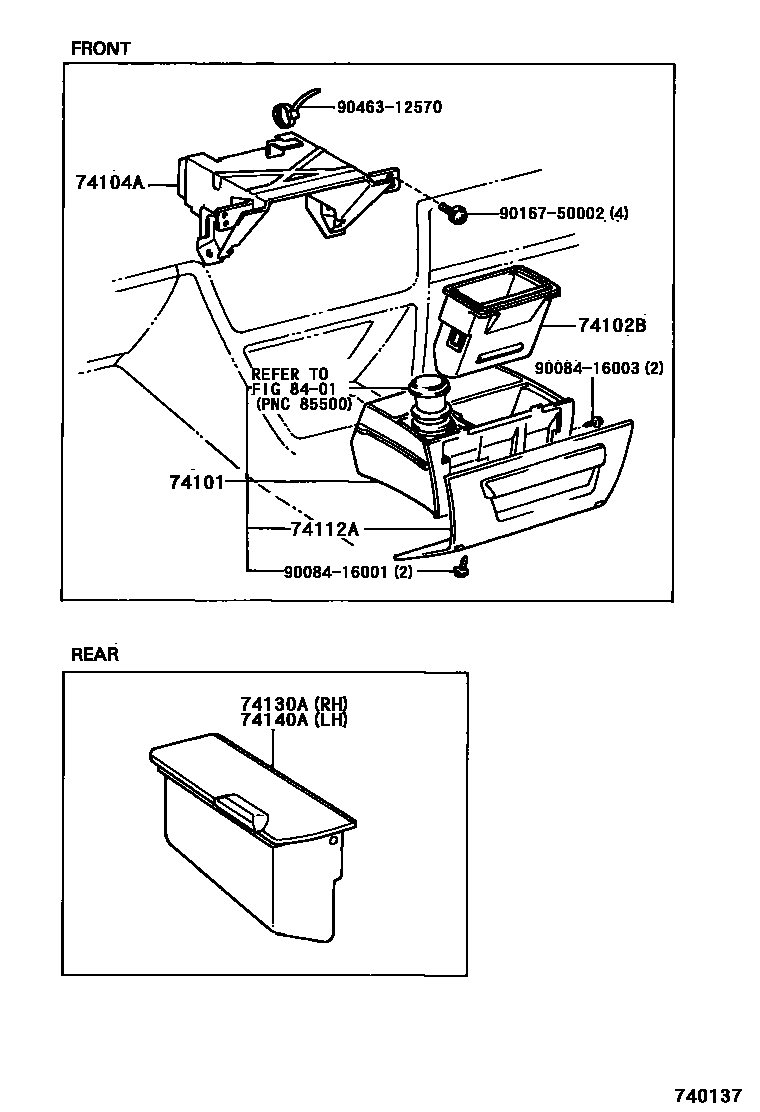

Toyota AVALON — ASH RECEPTACLE
74101RECEPTACLE SUB-ASSY, FRONT ASH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74112ADOOR, FRONT ASH RECEPTACLE
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
ADOBE,TRIM42
74130ARECEPTACLE ASSY, REAR ASH, RH
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
74140ARECEPTACLE ASSY, REAR ASH, LH
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
8401SWITCH & RELAY & COMPUTER
9008416001
main90084-16001
9008416003
main90084-16003
9016750002
main90167-50002
9046312570
main90463-12570
11 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota AVALON
This section contains 11 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota AVALON. Key components include: RECEPTACLE SUB-ASSY, FRONT ASH, BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, DOOR, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, RH.
