Toyota AVALON — ARMREST & VISOR

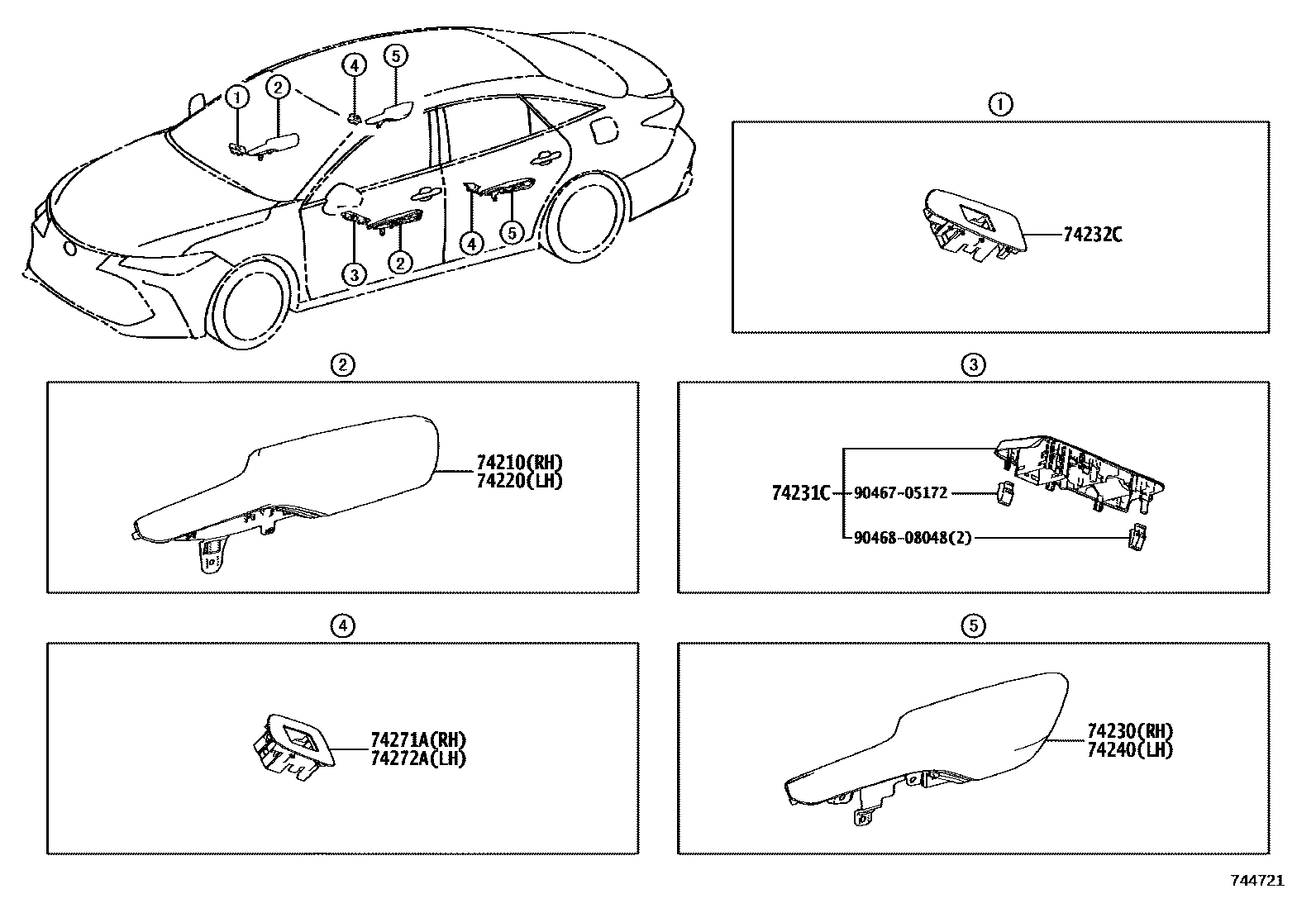

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-07030-B2i201806-201911

GRAY+LT.GRAY,TRIM1#

main74210-07030-C0i201806-201911

BLACK+BLACK,TRIM2#

main74210-07030-E0i201806-201911

BEIGE+IVORY,TRIM4#

main74210-07030-E3i201806-201910

BROWN+AMBER,TRIM43

main74210-07031-B2i201912-202008

GRAY,TRIM1#,##

main74210-07031-C0i202008

BLACK,TRIM2#,##

main74210-07031-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74210-07031-E3i202008

BROWN,TRIM4#,##

74220ARMREST ASSY, FRONT, LH

main74220-07030-B2i201806-201911

GRAY+LT.GRAY,TRIM1#

main74220-07030-C0i201806-201911

BLACK+BLACK,TRIM2#

main74220-07030-E0i201806-201911

BEIGE+IVORY,TRIM4#

main74220-07030-E3i201806-201910

BROWN+AMBER,TRIM43

main74220-07031-B2i201912-202008

GRAY,TRIM1#,##

main74220-07031-C0i202001-202008

BLACK,TRIM2#,##

main74220-07031-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74220-07031-E3i202002-202008

BROWN,TRIM43,##

74230ARMREST ASSY, REAR, RH

main74250-07010-B2i201806-201911

GRAY+LT.GRAY,TRIM1#

main74250-07010-C0i201806-201911

BLACK+BLACK,TRIM2#

main74250-07010-E0i201806-201910

BEIGE+IVORY,TRIM40

main74250-07010-E3i201806-201910

BROWN+AMBER,TRIM43

main74250-07011-B2i202008

GRAY,TRIM1#,##

main74250-07011-C0i202001-202008

BLACK,TRIM2#,##

main74250-07011-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74250-07011-E3i201911-202002

BROWN,TRIM4#,##

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74232-07060-B0i201806-202008

GRAY,TRIM1#

main74232-07060-C0i201806-202008

BLACK,TRIM2#

main74232-07060-E0i202008

BROWN,TRIM4#

main74232-07060-E1i201806-202008

NEUTRAL BEIGE,TRIM4#

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-07060-B0i201806-202008

GRAY,TRIM1#

main74231-07060-C0i202008

BLACK,TRIM2#

main74231-07060-E0i201806-202008

BROWN,TRIM43

main74231-07060-E1i202008

NEUTRAL BEIGE,TRIM4#

74240ARMREST ASSY, REAR, LH

main74260-07010-B2i201806-201911

GRAY+LT.GRAY,TRIM1#

main74260-07010-C0i201806-201911

BLACK+BLACK,TRIM2#

main74260-07010-E0i201806-201911

BEIGE+IVORY,TRIM4#

main74260-07010-E3i201806-201910

BROWN+AMBER,TRIM43

main74260-07011-B2i202008

GRAY,TRIM1#,##

main74260-07011-C0i202001-202008

BLACK,TRIM2#,##

main74260-07011-E0i202002-202008

NEUTRAL BEIGE,TRIM4#,##

main74260-07011-E3i202008

BROWN,TRIM4#,##

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-07050-B0i201806-202008

GRAY,TRIM1#

main74271-07050-C0i201806-202008

BLACK,TRIM2#

main74271-07050-E0i202008

BROWN,TRIM4#

main74271-07050-E1i201806-202008

NEUTRAL BEIGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-07050-B0i201806-202008

GRAY,TRIM1#

main74272-07050-C0i201806-202008

BLACK,TRIM2#

main74272-07050-E0i202008

BROWN,TRIM4#

main74272-07050-E1i202008

NEUTRAL BEIGE,TRIM4#

9046705172

main90467-05172

9046808048

main90468-08048

10 parts on this diagram · 2 diagrams in section
