Toyota AVALON — ARMREST & VISOR

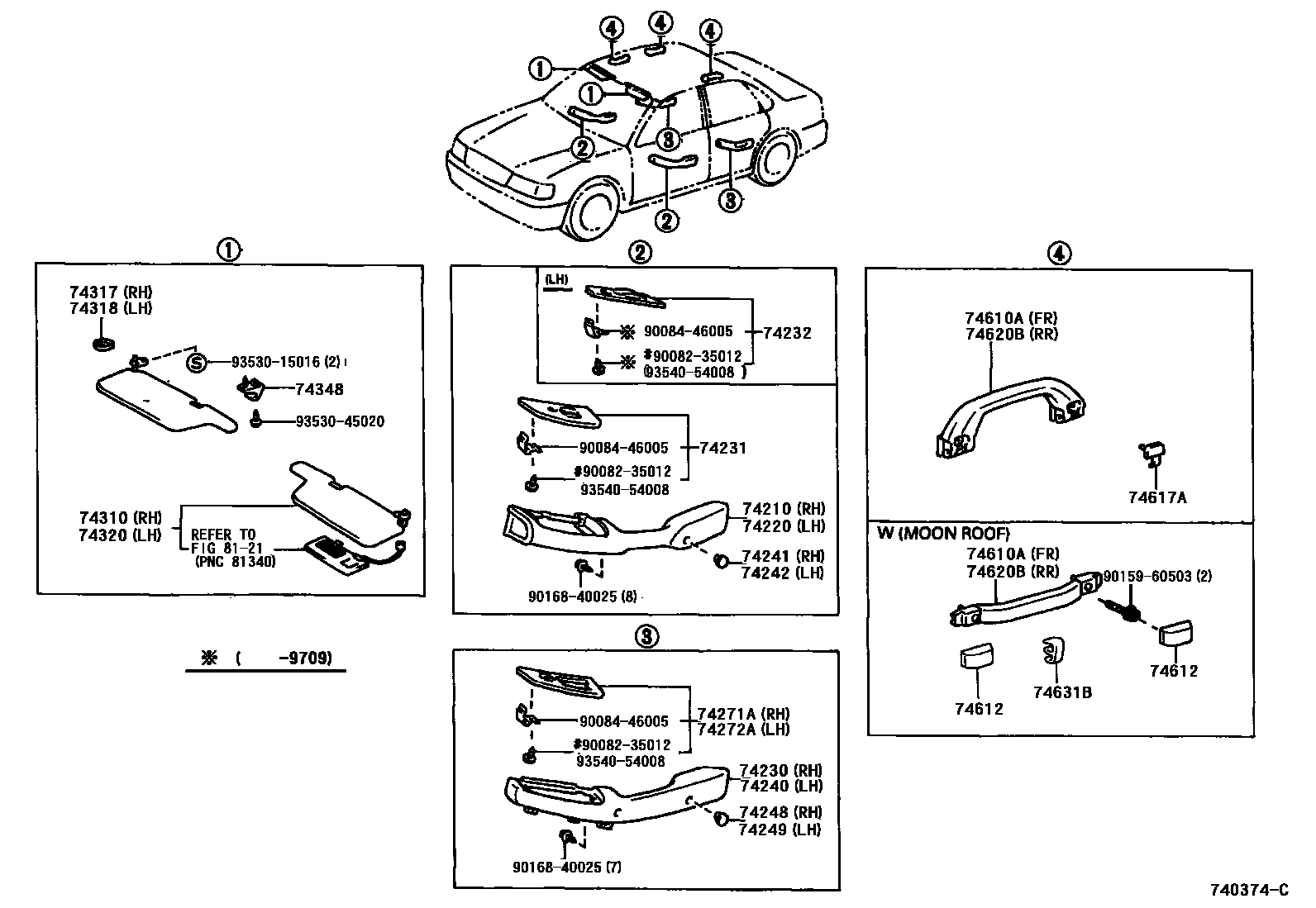

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-AC010-C0i199508-199709
BLACK,TRIM2#
sub74231-AC030
main74210-AC010-E0i199508-199608
DK. ROSE,TRIM41
sub74231-AC030
main74210-AC010-E1i199508-199709
ADOBE,TRIM42
sub74231-AC030
main74210-AC010-E2i199608-199709
ROSE STONE,TRIM43
sub74231-AC030
main74210-AC030-C0i199709
BLACK,TRIM2#
main74210-AC030-E0i199709
ROSE STONE,TRIM43
main74210-AC030-E1i199709
SANDAL WOOD,TRIM44
74220ARMREST ASSY, FRONT, LH
main74220-AC010-C0i199508-199709
BLACK,TRIM2#
sub74232-AC040
main74220-AC010-E0i199508-199608
DK. ROSE,TRIM41
sub74232-AC040
main74220-AC010-E1i199508-199709
ADOBE,TRIM42
sub74232-AC040
main74220-AC010-E2i199608-199709
ROSE STONE,TRIM43
sub74232-AC040
main74220-AC030-C0i199709
BLACK,TRIM2#
main74220-AC030-E0i199709
ROSE STONE,TRIM43
main74220-AC030-E1i199709
SANDAL WOOD,TRIM44
74230ARMREST ASSY, REAR, RH
main74250-AC010-C0i199508
BLACK,TRIM2#
main74250-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74250-AC010-E1i199508-199709
ADOBE,TRIM42
main74250-AC010-E2i199608
ROSE STONE,TRIM43
main74250-AC010-E3i199709
SANDAL WOOD,TRIM44
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-AC010-C0i199508-199709
BLACK,TRIM2#
main74231-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74231-AC010-E1i199508-199709
ADOBE,TRIM42
main74231-AC010-E2i199608-199709
ROSE STONE,TRIM43
main74231-AC040-C0i199709
BLACK,TRIM2#
main74231-AC040-E0i199709
ROSE STONE,TRIM43
main74231-AC040-E1i199709
SANDAL WOOD,TRIM44
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-AC010-C0i199508-199709
BLACK,TRIM2#
main74232-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74232-AC010-E1i199508-199709
ADOBE,TRIM42
main74232-AC010-E2i199608-199709
ROSE STONE,TRIM43
main74232-AC030-C0i199709
BLACK,TRIM2#
main74232-AC030-E0i199709
ROSE STONE,TRIM43
main74232-AC030-E1i199709
SANDAL WOOD,TRIM44
74240ARMREST ASSY, REAR, LH
main74260-AC010-C0i199508
BLACK,TRIM2#
main74260-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74260-AC010-E1i199508-199709
ADOBE,TRIM42
main74260-AC010-E2i199608
ROSE STONE,TRIM43
main74260-AC010-E3i199709
SANDAL WOOD,TRIM44
74241PLUG, FRONT DOOR ARMREST, RH
main74241-AC010-C0i199508
BLACK,TRIM2#
main74241-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74241-AC010-E1i199508-199709
ADOBE,TRIM42
main74241-AC010-E2i199608
ROSE STONE,TRIM43
main74241-AC010-E3i199709
SANDAL WOOD,TRIM44
74242PLUG, FRONT DOOR ARMREST, LH
main74241-AC010-C0i199508
BLACK,TRIM2#
main74241-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74241-AC010-E1i199508-199709
ADOBE,TRIM42
main74241-AC010-E2i199608
ROSE STONE,TRIM43
main74241-AC010-E3i199709
SANDAL WOOD,TRIM44
74248PLUG, REAR DOOR ARMREST, RH
main74241-AC010-C0×2i199508
BLACK,TRIM2#
main74241-AC010-E0×2i199508-199608
DK. ROSE,TRIM41
main74241-AC010-E1×2i199508-199709
ADOBE,TRIM42
main74241-AC010-E2×2i199608
ROSE STONE,TRIM43
main74241-AC010-E3×2i199709
SANDAL WOOD,TRIM44
74249PLUG, REAR DOOR ARMREST, LH
main74241-AC010-C0×2i199508
BLACK,TRIM2#
main74241-AC010-E0×2i199508-199608
DK. ROSE,TRIM41
main74241-AC010-E1×2i199508-199709
ADOBE,TRIM42
main74241-AC010-E2×2i199608
ROSE STONE,TRIM43
main74241-AC010-E3×2i199709
SANDAL WOOD,TRIM44
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-AC010-C0i199508
BLACK,TRIM2#
main74271-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74271-AC010-E1i199508-199709
ADOBE,TRIM42
main74271-AC010-E2i199608
ROSE STONE,TRIM43
main74271-AC010-E3i199709
SANDAL WOOD,TRIM44
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-AC010-C0i199508
BLACK,TRIM2#
main74272-AC010-E0i199508-199608
DK. ROSE,TRIM41
main74272-AC010-E1i199508-199709
ADOBE,TRIM42
main74272-AC010-E2i199608
ROSE STONE,TRIM43
main74272-AC010-E3i199709
SANDAL WOOD,TRIM44
74310VISOR ASSY, RH
main74310-AC070-B0i199508-199612
BLUISH GRAY,TRIM2#
main74310-AC070-E0i199508-199608
QUARTZ,TRIM41
main74310-AC070-E1i199508-199612
ADOBE,TRIM42
main74310-AC080-B0i199508-199612
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74310-AC080-E0i199608-199612
W(MOON ROOF),QUARTZ,TRIM43
main74310-AC080-E1i199508-199612
W(MOON ROOF),ADOBE,TRIM42
main74310-AC160-B0i199612-199709
BLUISH GRAY,TRIM2#
main74310-AC160-E0i199612-199709
QUARTZ,TRIM43
main74310-AC160-E1i199612-199709
ADOBE,TRIM42
main74310-AC161-A1i199709-199712
IVORY,TRIM44
main74310-AC161-B1i199709-199712
DARK BLUE GRAY,TRIM2#
main74310-AC161-E2i199709-199712
QUARTZ,TRIM43
main74310-AC162-A1i199712
IVORY,TRIM44
sub74310-AC163
main74310-AC162-B1i199712
DARK BLUE GRAY,TRIM2#
sub74310-AC163
main74310-AC162-E2i199712
QUARTZ,TRIM43
sub74310-AC163
main74310-AC170-B0i199612-199709
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74310-AC170-E0i199612-199709
W(MOON ROOF),QUARTZ,TRIM43
main74310-AC170-E1i199612-199709
W(MOON ROOF),ADOBE,TRIM42
main74310-AC171-A1i199709-199712
W(MOON ROOF),IVORY,TRIM44
main74310-AC171-B1i199709-199712
W(MOON ROOF),DARK BLUE GRAY,TRIM2#
main74310-AC171-E2i199709-199712
W(MOON ROOF),QUARTZ,TRIM43
main74310-AC172-A1i199712
W(MOON ROOF),IVORY,TRIM44
sub74310-AC173
main74310-AC172-B1i199712
W(MOON ROOF),DARK BLUE GRAY,TRIM2#
sub74310-AC173
main74310-AC172-E2i199712
W(MOON ROOF),QUARTZ,TRIM43
sub74310-AC173
74317COVER, VISOR BRACKET, RH
main74317-AC010-A1i199709
IVORY,TRIM44
main74317-AC010-B0i199508
BLUISH GRAY,TRIM2#
main74317-AC010-E0i199608
QUARTZ,TRIM43
main74317-AC010-E1i199508-199709
LT. ADOBE,TRIM42
74318COVER, VISOR BRACKET, LH
main74317-AC010-A1i199709
IVORY,TRIM44
main74317-AC010-B0i199508
BLUISH GRAY,TRIM2#
main74317-AC010-E0i199508-199608
QUARTZ,TRIM41
main74317-AC010-E1i199508-199709
LT. ADOBE,TRIM42
74320VISOR ASSY, LH
main74320-AC070-B0i199508-199612
BLUISH GRAY,TRIM2#
main74320-AC070-E0i199508-199608
QUARTZ,TRIM41
main74320-AC070-E1i199508-199612
ADOBE,TRIM42
main74320-AC080-B0i199508-199612
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74320-AC080-E0i199608-199612
W(MOON ROOF),QUARTZ,TRIM43
main74320-AC080-E1i199508-199612
W(MOON ROOF),ADOBE,TRIM42
main74320-AC160-B0i199612-199709
BLUISH GRAY,TRIM2#
main74320-AC160-E0i199612-199709
QUARTZ,TRIM43
main74320-AC160-E1i199612-199709
ADOBE,TRIM42
main74320-AC161-A1i199709-199712
IVORY,TRIM44
main74320-AC161-B1i199709-199712
DARK BLUE GRAY,TRIM2#
main74320-AC161-E2i199709-199712
QUARTZ,TRIM43
main74320-AC162-A1i199712
IVORY,TRIM44
sub74320-AC163
main74320-AC162-B1i199712
DARK BLUE GRAY,TRIM2#
sub74320-AC163
main74320-AC162-E2i199712
QUARTZ,TRIM43
sub74320-AC163
main74320-AC170-B0i199612-199709
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74320-AC170-E0i199612-199709
W(MOON ROOF),QUARTZ,TRIM43
main74320-AC170-E1i199612-199709
W(MOON ROOF),ADOBE,TRIM42
main74320-AC171-A1i199709-199712
W(MOON ROOF),IVORY,TRIM44
main74320-AC171-B1i199709-199712
W(MOON ROOF),DARK BLUE GRAY,TRIM2#
main74320-AC171-E2i199709-199712
W(MOON ROOF),QUARTZ,TRIM43
main74320-AC172-A1i199712
W(MOON ROOF),IVORY,TRIM44
sub74320-AC173
main74320-AC172-B1i199712
W(MOON ROOF),DARK BLUE GRAY,TRIM2#
sub74320-AC173
main74320-AC172-E2i199712
W(MOON ROOF),QUARTZ,TRIM43
sub74320-AC173
74348HOLDER, VISOR
main74348-AC010-A1×2i199709
IVORY,TRIM44
sub74348-22020
main74348-AC010-B0×2i199508
BLUISH GRAY,TRIM2#
sub74348-22020
main74348-AC010-E0×2i199608
QUARTZ,TRIM43
sub74348-22020
main74348-AC010-E1×2i199508-199709
LT. ADOBE,TRIM42
sub74348-22020
74610AGRIP SUB-ASSY, ASSIST
main74610-22070-A2i199709
W(MOON ROOF),IVORY,TRIM44
main74610-22070-B2i199508
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74610-22070-E0i199608
W(MOON ROOF),QUARTZ,TRIM43
main74610-22070-E3i199508-199709
W(MOON ROOF),LT. ADOBE,TRIM42
main74610-AC010-A0i199709
IVORY,TRIM44
main74610-AC010-B0i199508
BLUISH GRAY,TRIM2#
main74610-AC010-E0i199608
QUARTZ,TRIM43
main74610-AC010-E1i199508-199709
LT. ADOBE,TRIM42
74612COVER, ASSIST GRIP
main74612-22050-A3×6i199709
IVORY,TRIM44
sub74612-20050
main74612-22050-B3×6i199508
BLUISH GRAY,TRIM2#
sub74612-20050
main74612-22050-E0×6i199508-199608
QUARTZ,TRIM41
sub74612-20050
main74612-22050-E4×6i199508-199709
LT. ADOBE,TRIM42
sub74612-20050
74617APLUG, ASSIST GRIP
main74617-AC010-A0×6i199709
IVORY,TRIM44
main74617-AC010-B0×6i199508
BLUISH GRAY,TRIM2#
main74617-AC010-E0×6i199608
QUARTZ,TRIM43
main74617-AC010-E1×6i199508-199709
LT. ADOBE,TRIM42
74620BGRIP ASSY, ASSIST, REAR
main74610-22070-B2×2i199508-199610
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74610-22070-E0×2i199608-199610
W(MOON ROOF),QUARTZ,TRIM43
main74610-22070-E3×2i199705-199709
W(MOON ROOF),LT. ADOBE,TRIM42
main74610-33060-A1×2i199709
W(MOON ROOF),IVORY,TRIM44
main74610-33060-B2×2i199705
W(MOON ROOF),BLUISH GRAY,TRIM2#
main74610-33060-E0×2i199610-199709
W(MOON ROOF),QUARTZ,TRIM41,43
main74610-33060-E1×2i199610-199709
W(MOON ROOF),ADOBE,TRIM42
main74610-AC020-A0×2i199709
IVORY,TRIM44
main74610-AC020-B0×2i199508
BLUISH GRAY,TRIM2#
main74610-AC020-E0×2i199508-199608
QUARTZ,TRIM41
main74610-AC020-E1×2i199508-199709
LT. ADOBE,TRIM42
74631BHOOK, COAT
main74631-33020-A1×2i199709
IVORY,TRIM2#,44
main74631-33020-B3×2i199709
BLUISH GRAY,TRIM21,43
main74631-33020-E0×2i199709
QUARTZ,TRIM43,44
8121
9008235012
main90082-35012
9008446005
main90084-46005
9015960503
main90159-60503
9016840025
main90168-40025
9353015016
main93530-15016
9353045020
main93530-45020
9354054008
main93540-54008

30 parts on this diagram · 1 diagram in section
