Toyota AVALON — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-YF030i200207-200309

main86101-YF040i200004-200207

86300ANTENNA ASSY, W/HOLDER

main86300-YF010i200004-200309

main86300-YF030i200309

86337ROD & PIPE, SEALED W/CABLE

main86337-8Y001i200004-200309

86392ORNAMENT, ANTENNA

main86392-YF010i200004-200309

86396NUT, ANTENNA

main86396-06010i200004-200309

9011906390

main90119-06390

9017906274

main90179-06274

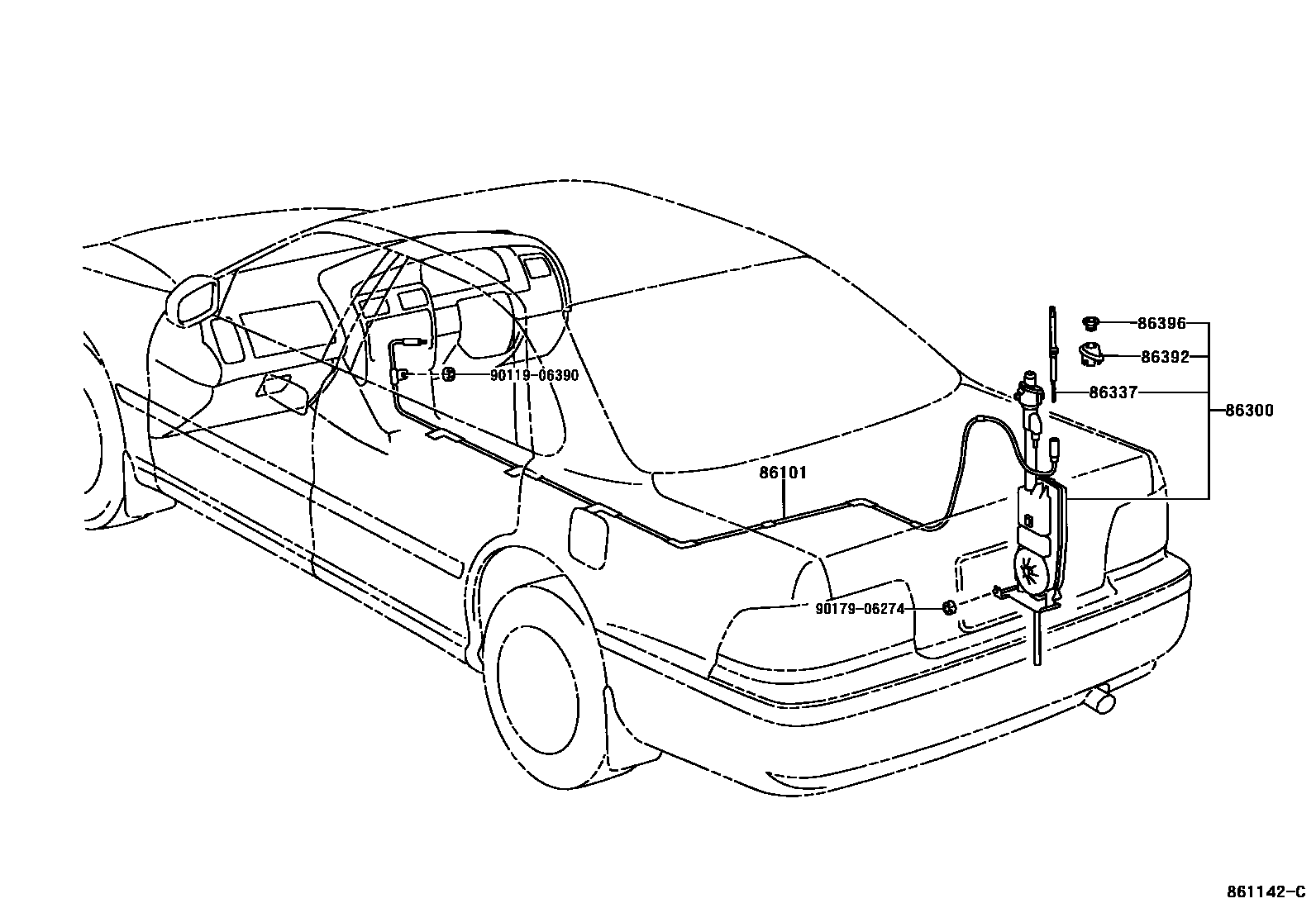

7 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota AVALON

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota AVALON. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ROD & PIPE, SEALED W/CABLE, ORNAMENT, ANTENNA, NUT, ANTENNA.
