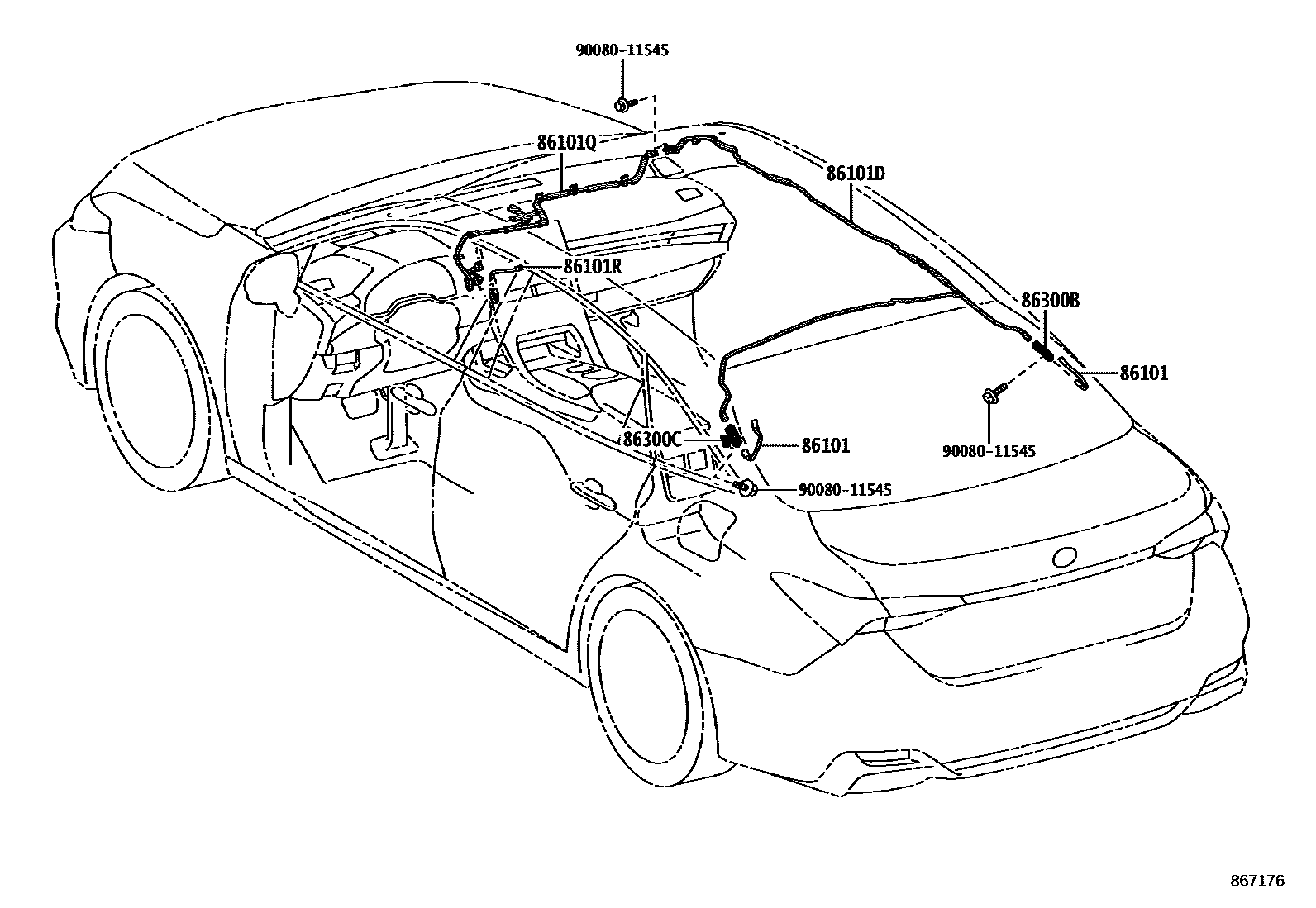

Toyota AVALON — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-07270×2i201806-202008

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-07330i201806-202008

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-07410i201806-202008

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-07470i201806-202008

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-06210i201806-202008

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-06220i201806-202008

9008011545

main90080-11545

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota AVALON

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota AVALON. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.4, CORD SUB-ASSY, ANTENNA, NO.5, ANTENNA ASSY, AMPLIFIER, NO.1.
