Toyota AVALON — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-07170i201210-201510

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-07140i201210-201510

MOON ROOF-WITH(TILT & SLIDE)

main86101-07150i201210-201510

main86101-07220i201510

MOON ROOF-WITH

main86101-07230i201510

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-07030i201210-201510

8271108080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-08080

8271533C30BRACKET,WIRING HARNESS CLAMP

main82715-33C30

9008011545

main90080-11545

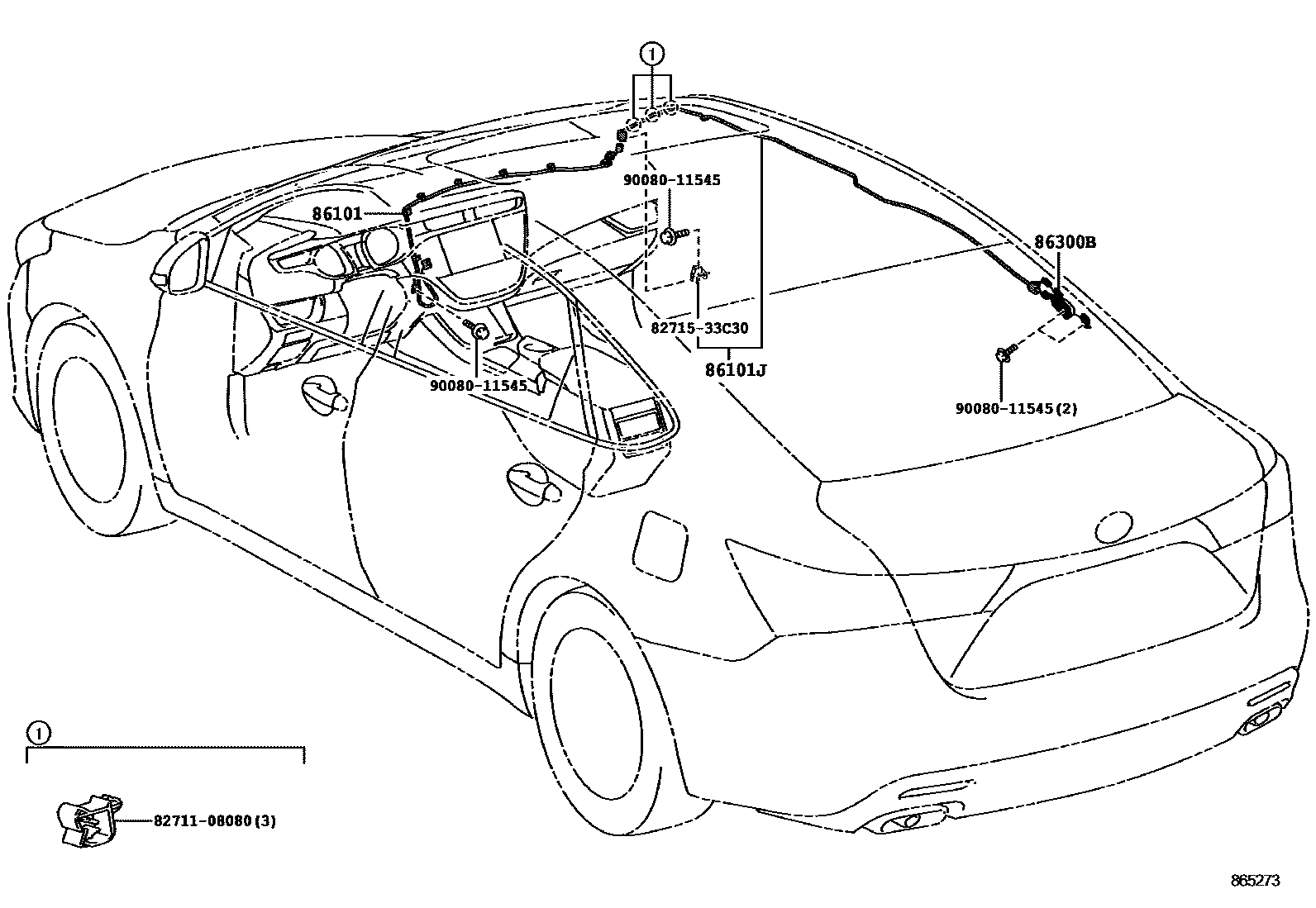

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota AVALON

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota AVALON. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER), BRACKET,WIRING HARNESS CLAMP.
