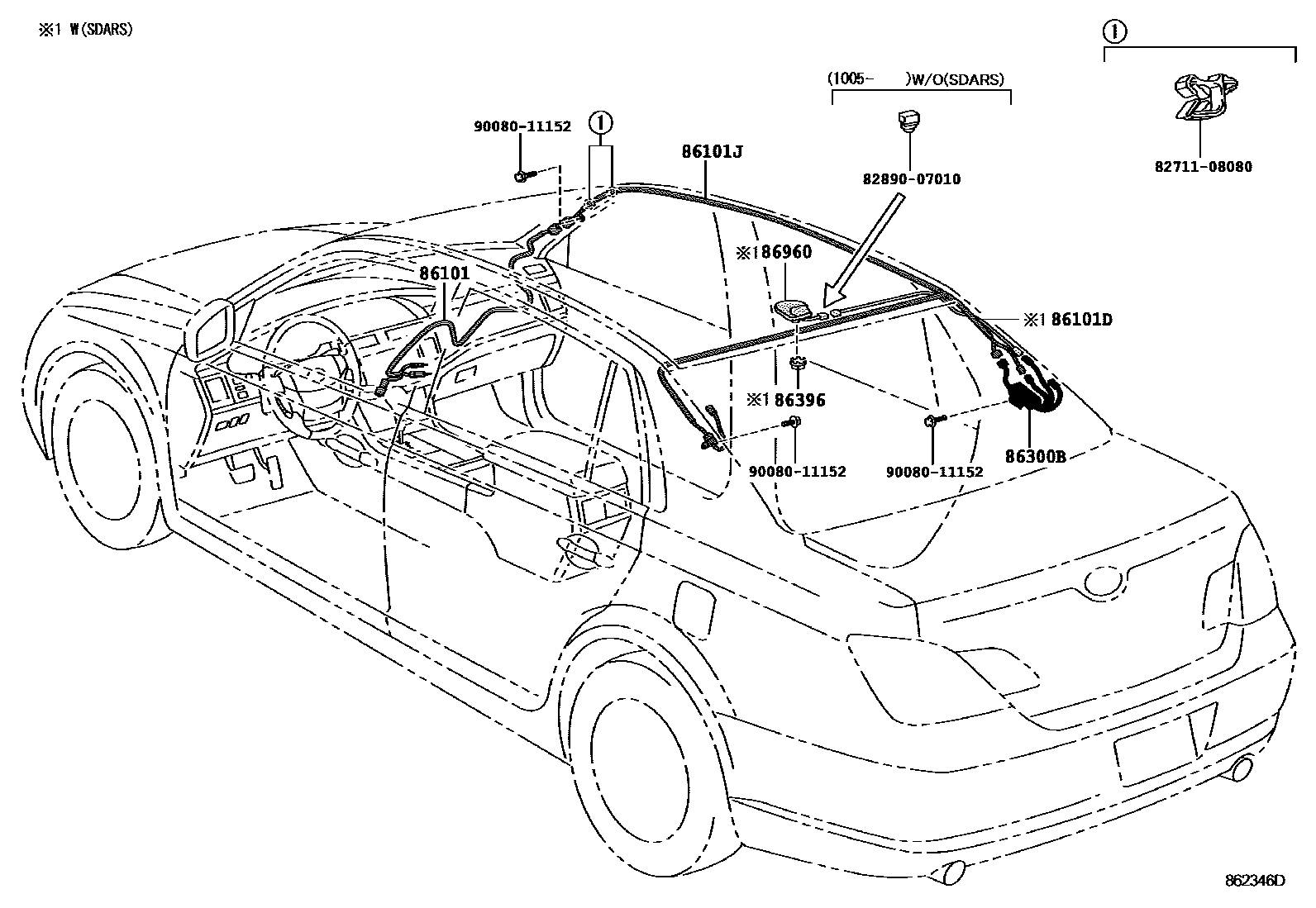

Toyota AVALON — ANTENNA
86101CORD SUB-ASSY, ANTENNA
AUDIO-W/O(AUDIO) & 9 SP MIDDLE EAST; EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86396NUT, ANTENNA
86960ANTENNA ASSY, SATELLITE RADIO
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
DK.BROWN ME.,4U5
BEIGE ME.,4T8
LT.GREEN ME.,6U0
OLIVE M.M.,6T7
BLUE ME.,8R5
BLUE ME.,8N0
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
DK.BROWN ME.,4U5
OLIVE M.M.,6T7
BLUE ME.,8N0
8271108080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-08080
8289007010CONNECTOR ASSY, WIRING HARNESS
main82890-07010
9008011152
main90080-11152
9 parts on this diagram · 1 diagram in section
ANTENNA for Toyota AVALON
This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota AVALON. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, NUT, ANTENNA.
