Toyota AVALON — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-AC180iMCX20199908-200107

main86101-AC181iMCX20200107-200206

86300ANTENNA ASSY, W/HOLDER

main86300-AC040iMCX20199908-200206

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-AC030iMCX20199908-200206

86337ROD & PIPE, SEALED W/CABLE

main86337-AA020iMCX20199908-200206

86392ORNAMENT, ANTENNA

main86392-AC020iMCX20199908-200206

86396NUT, ANTENNA

main86396-06010iMCX20199908-200206

90178A0014

main90178-A0014

9017906274

main90179-06274

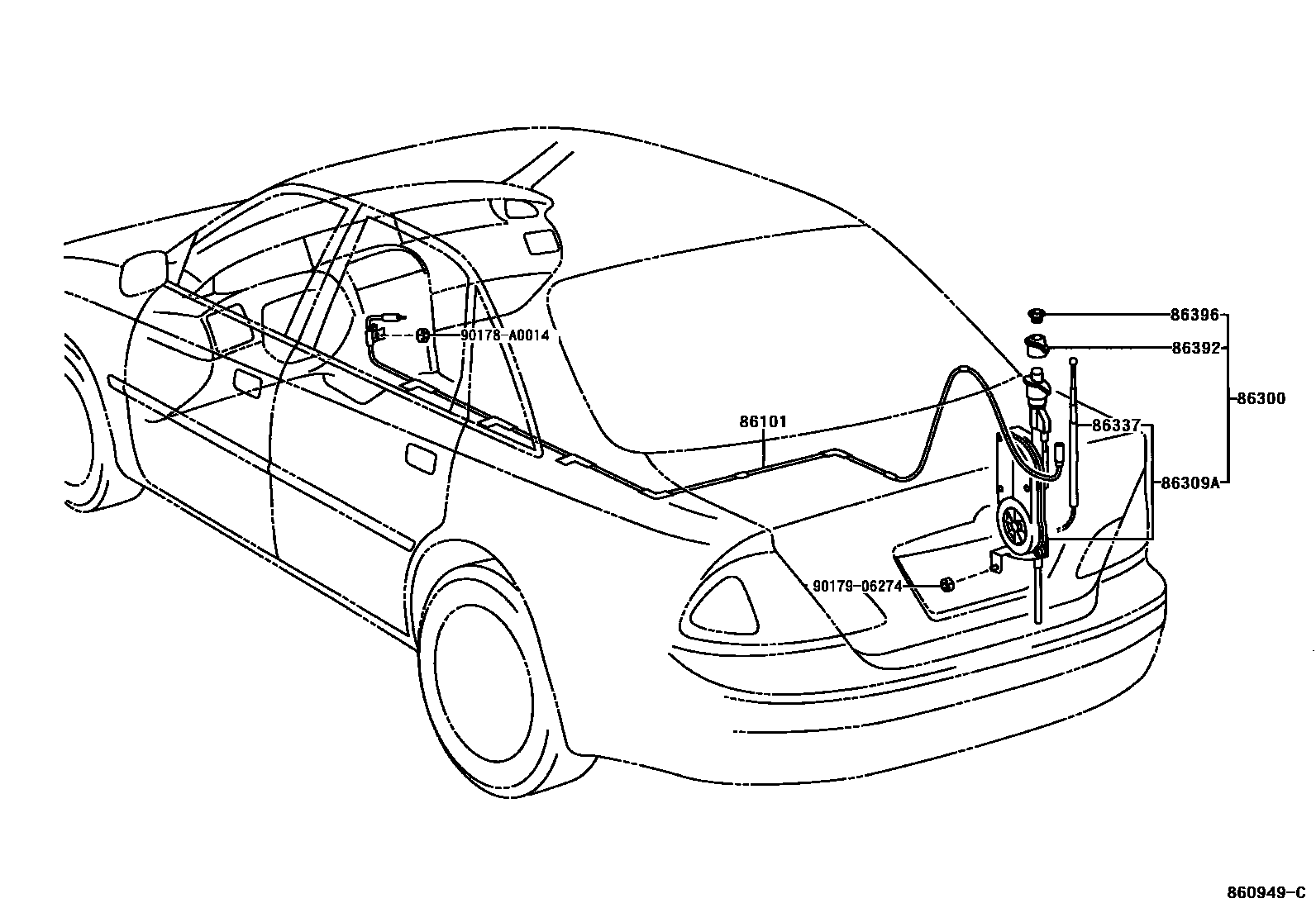

8 parts on this diagram · 1 diagram in section
