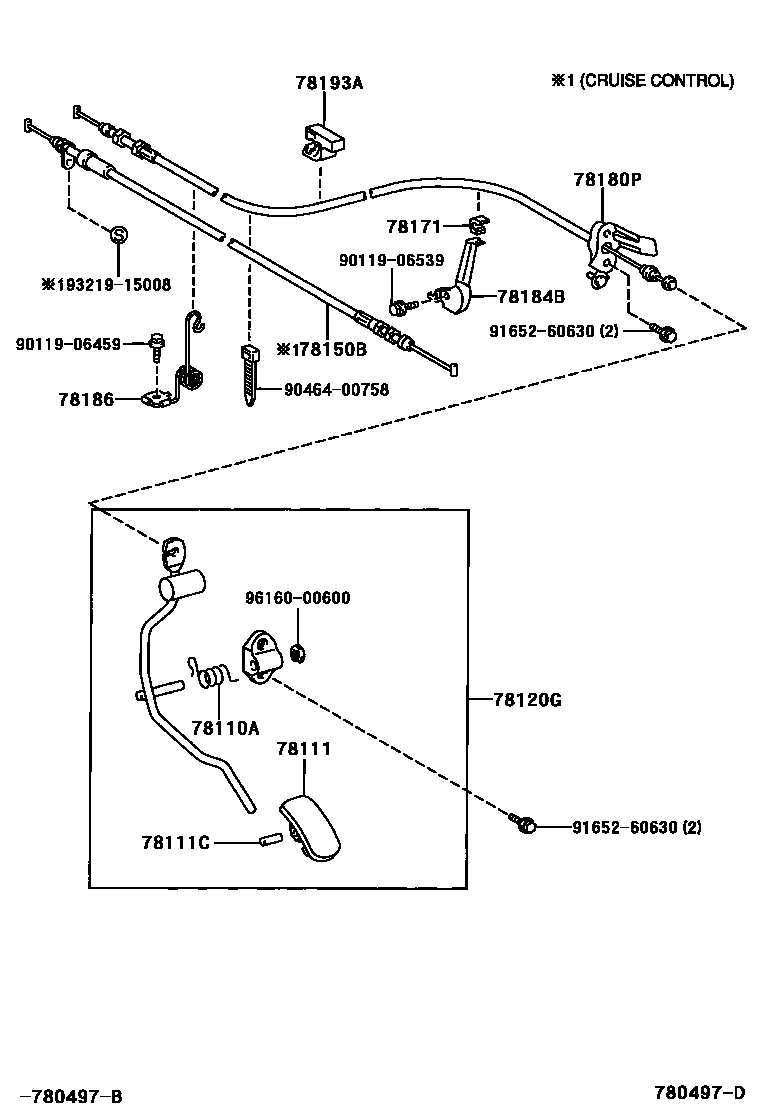

Toyota AVALON — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90089-50024iMCX10200211-200309

main90508-18048iMCX10200004-200211

78111PEDAL, ACCELERATOR

main78111-33020iMCX10200004-200211

main78111-YF010iMCX10200211-200309

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iMCX10200004-200309

78120GROD ASSY, ACCELERATOR PEDAL

main78120-33090iMCX10200004-200211

main78120-YF010iMCX10200211-200309

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-33080iMCX10200004-200309

78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH

main78171-33010iMCX10200004-200309

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-YC020iMCX10..CONQ200004-200309

main78180-YC030iMCX10200004-200309

W(CRUISE CONTROL)

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-41010iMCX10200004-200309

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-33040iMCX10..CONQ200004-200309

main78186-33060iMCX10200309

W(CRUISE CONTROL)

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-33010iMCX10200309

9011906459

main90119-06459

9011906539

main90119-06539

9046400758

main90464-00758

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

16 parts on this diagram · 1 diagram in section
