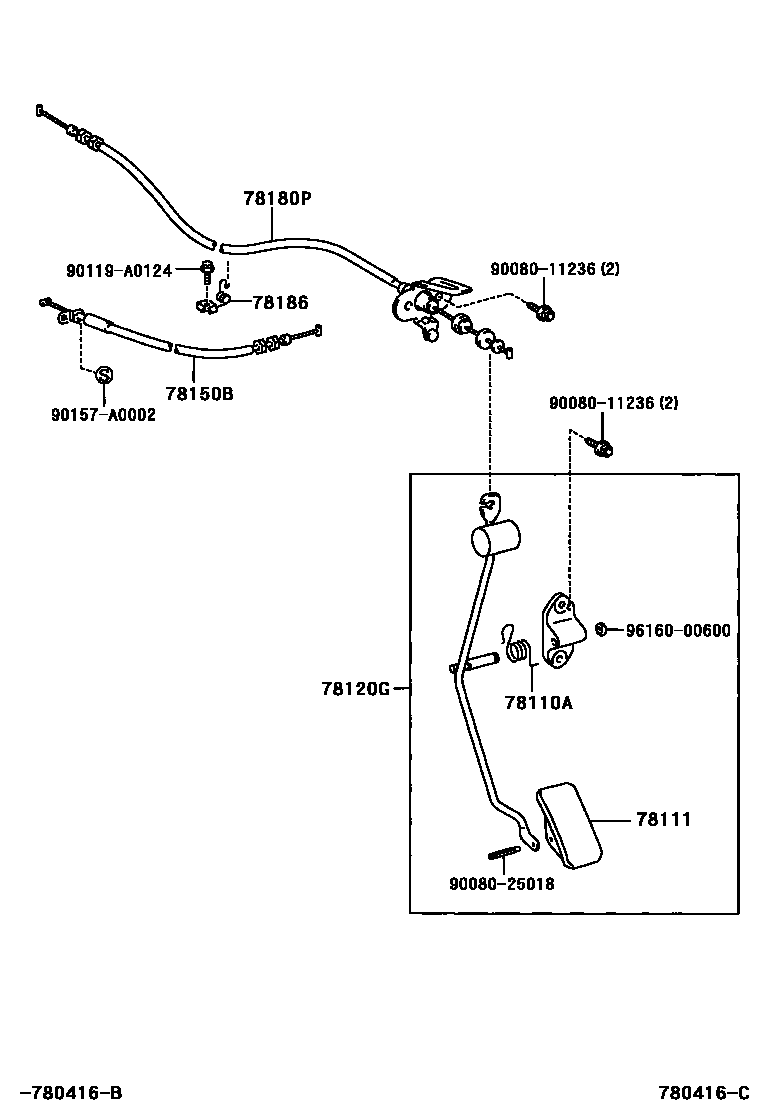

Toyota AVALON — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50169iMCX20199908-200206

78111PEDAL, ACCELERATOR

main78111-06010iMCX20199908-200206

78120GROD ASSY, ACCELERATOR PEDAL

main78120-07010iMCX20199908-200206

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-07010iMCX20199908-200206

main78150-07011iMCX20200405-200501

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-07040iMCX20199908-200206

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-41010iMCX20199908-200206

9008011236

main90080-11236

9008025018

main90080-25018

90119A0124

main90119-A0124

90157A0002

main90157-A0002

9616000600

main96160-00600

11 parts on this diagram · 1 diagram in section
