Toyota AVALON — ABS & VSC

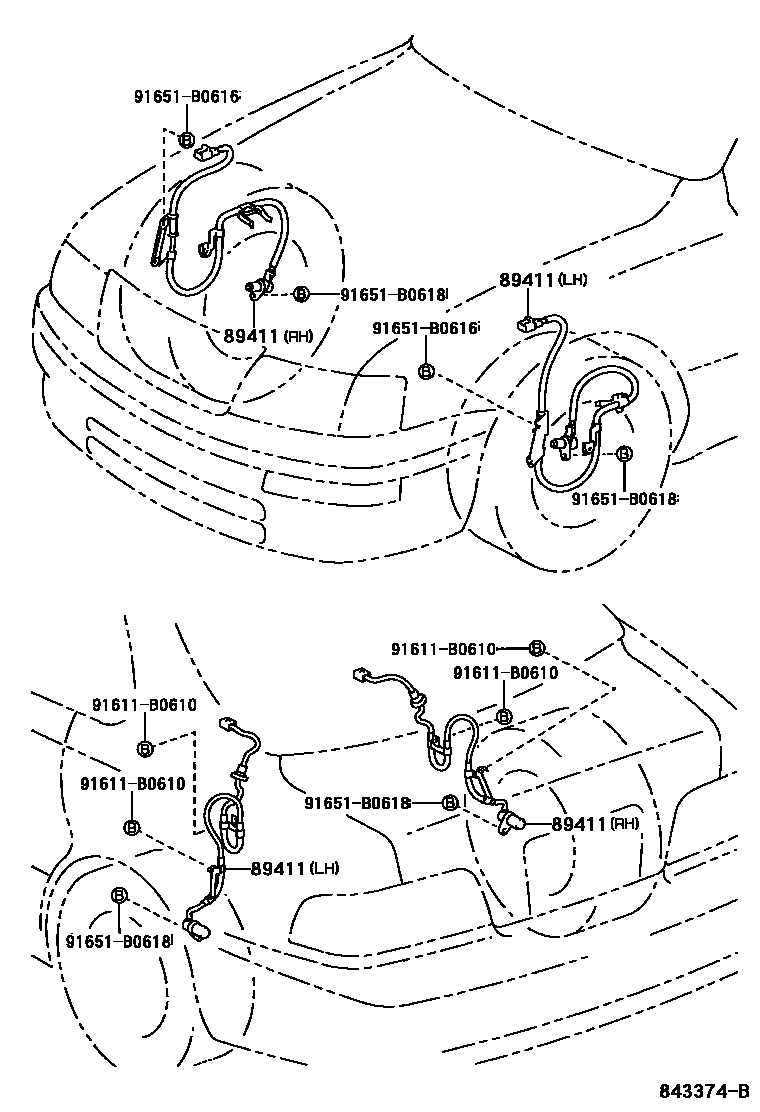

Parts diagram

89411SENSOR, SPEED

main89542-33030i200004-200309

FRONT RH

main89543-33030i200309-200506

FRONT LH

main89545-33020i200004-200309

REAR RH

main89546-33020i200004-200309

REAR LH

91611B0610

main91611-B0610

91651B0616

main91651-B0616

91651B0618

main91651-B0618

4 parts on this diagram · 1 diagram in section
