Toyota AVALON — ABS & VSC

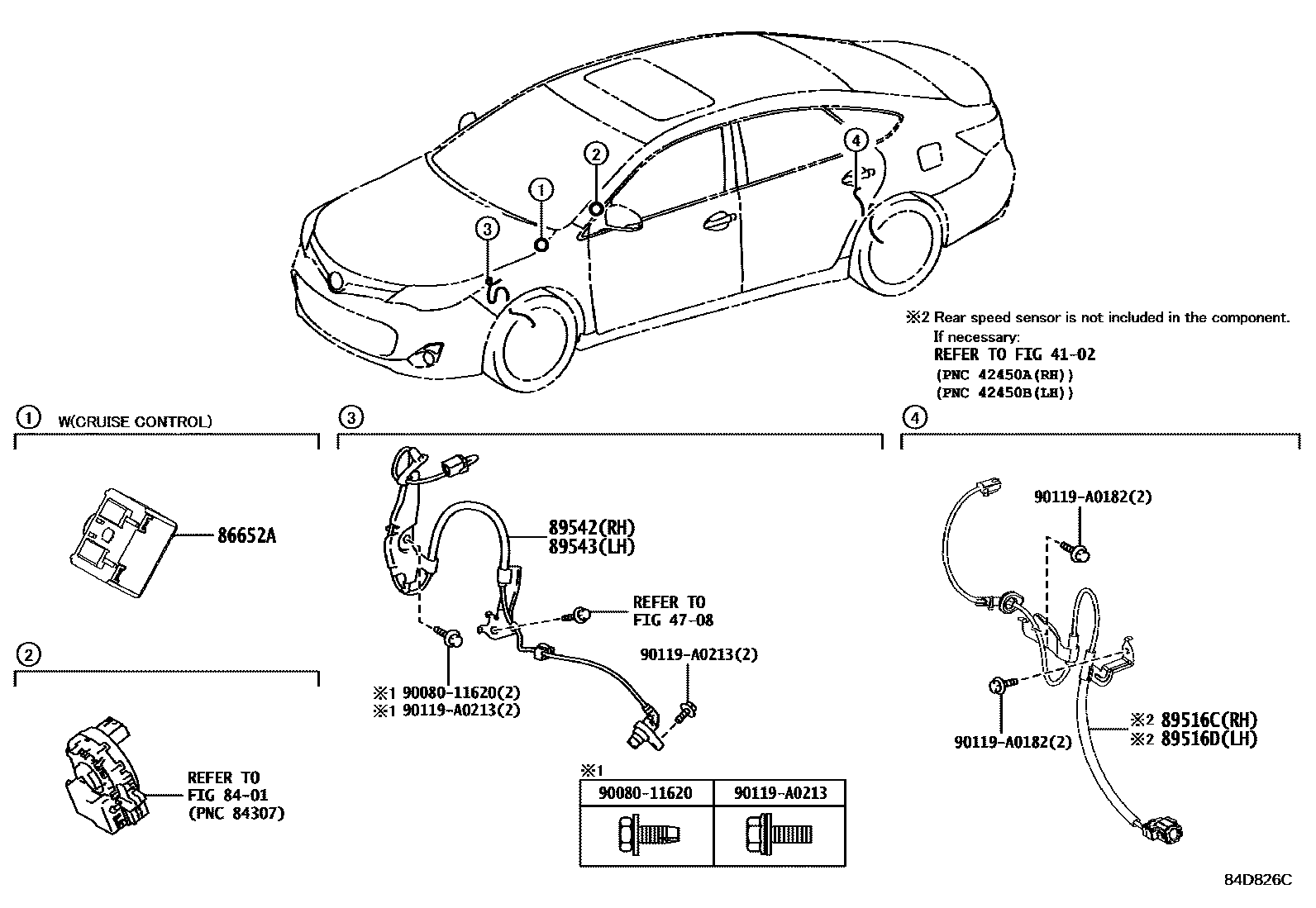

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06150i201210-201510

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06160i201210-201510

89542SENSOR, SPEED, FRONT RH

main89542-06120i201506-201510

main89542-33110i201210-201506

89543SENSOR, SPEED, FRONT LH

main89543-06120i201506-201510

main89543-33100i201210-201506

9008011620

main90080-11620

90119A0182

main90119-A0182

90119A0213

main90119-A0213

11 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota AVALON

This section contains 11 genuine Toyota parts for the ABS & VSC system of the Toyota AVALON. Key components include: REAR AXLE SHAFT & HUB, BRAKE TUBE & CLAMP, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, WIRE, SKID CONTROL SENSOR, RH.
