Toyota AVALON — ABS & VSC

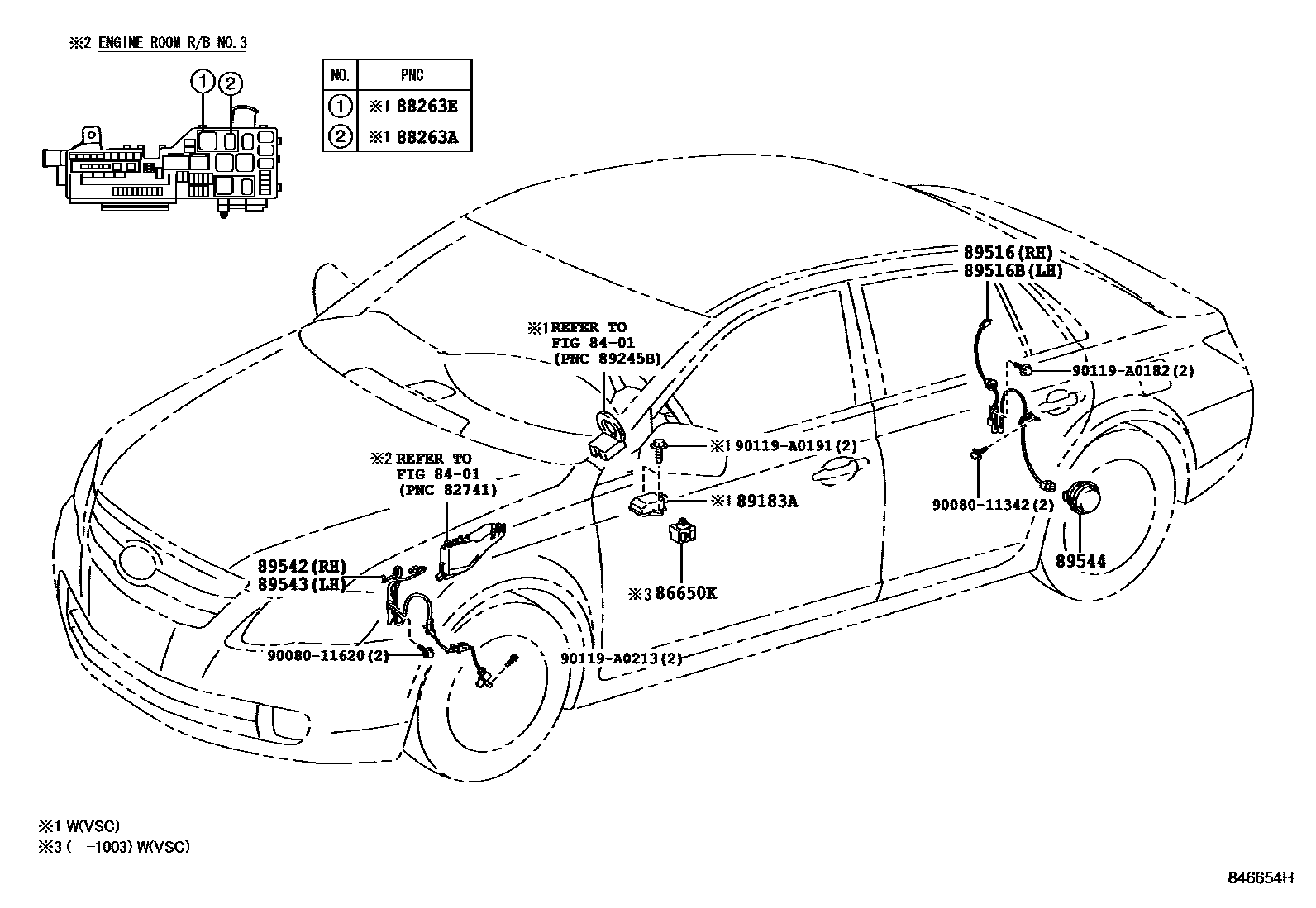

8401

86650KBUZZER ASSY, SKID CONTROL

main86652-04010iGSX30..LIMD200501-200707

VSC-WITH(W/TRACTION CONTROL)

88263ARELAY, SKID CONTROL

main88263-08010iGSX30201005-201210

88263ERELAY, SKID CONTROL NO.2

main88263-21010iGSX30201005-201210

89183ASENSOR, YAWRATE

main89183-60020iGSX30201005

89516WIRE, SKID CONTROL SENSOR

main89516-06090iGSX30201005

main89516-33010iGSX30200501-200707

89516BWIRE, SKID CONTROL SENSOR

main89516-06100iGSX30201005

main89516-33020iGSX30200501-200707

89542SENSOR, SPEED, FRONT RH

main89542-07030iGSX30201005-201210

89543SENSOR, SPEED, FRONT LH

main89543-07030iGSX30200501-200707

89544SENSOR, SKID CONTROL

main89544-06010iGSX30200501-200707

sub89544-48010

9008011342

main90080-11342

9008011620

main90080-11620

90119A0182

main90119-A0182

90119A0191

main90119-A0191

90119A0213

main90119-A0213

15 parts on this diagram · 1 diagram in section
