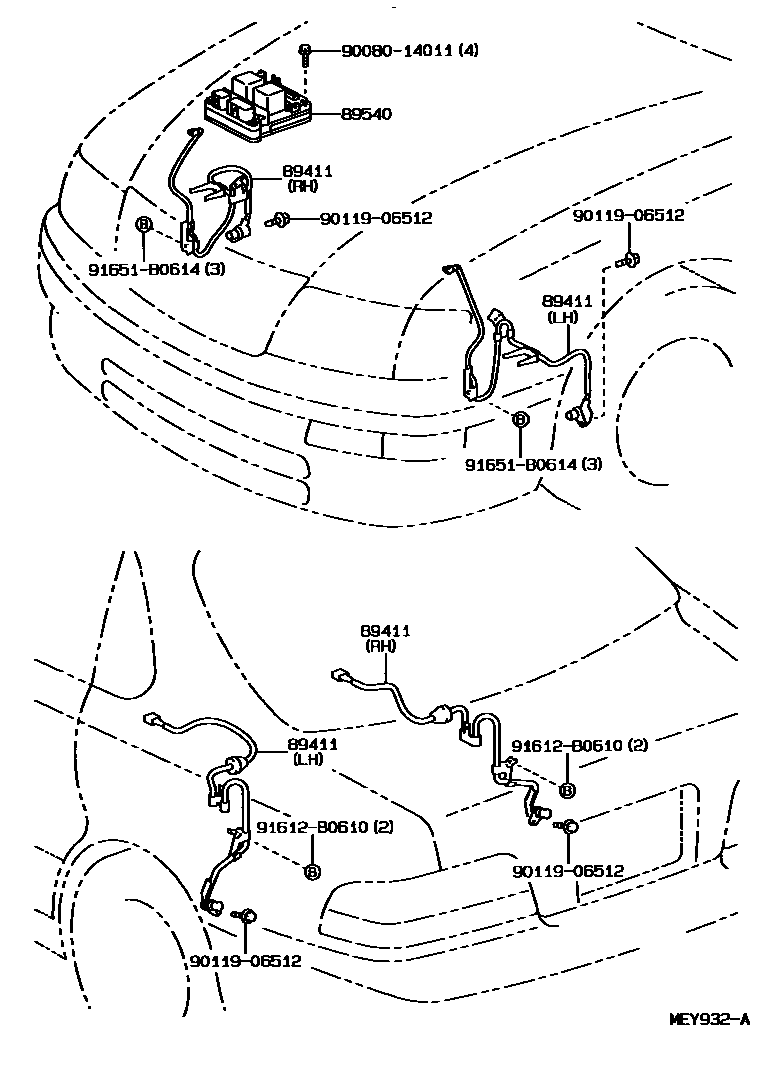

Toyota AVALON — ABS & VSC

0001 1 0002 1

89411SENSOR, SPEED

main89542-33010iMCX10199508-199608

FRONT RH

main89542-33030iMCX10199608

FRONT RH

main89543-33010iMCX10199508-199608

FRONT LH

main89543-33030iMCX10199608

FRONT LH

main89545-33010iMCX10199508-199608

REAR RH

main89545-33020iMCX10199608

REAR RH

main89546-33010iMCX10199508-199608

REAR LH

main89546-33020iMCX10199608-199709

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-06021iMCX10199508-199608

9008014011

main90080-14011

9011906512

main90119-06512

91612B0610

main91612-B0610

91651B0614

main91651-B0614

6 parts on this diagram · 2 diagrams in section
