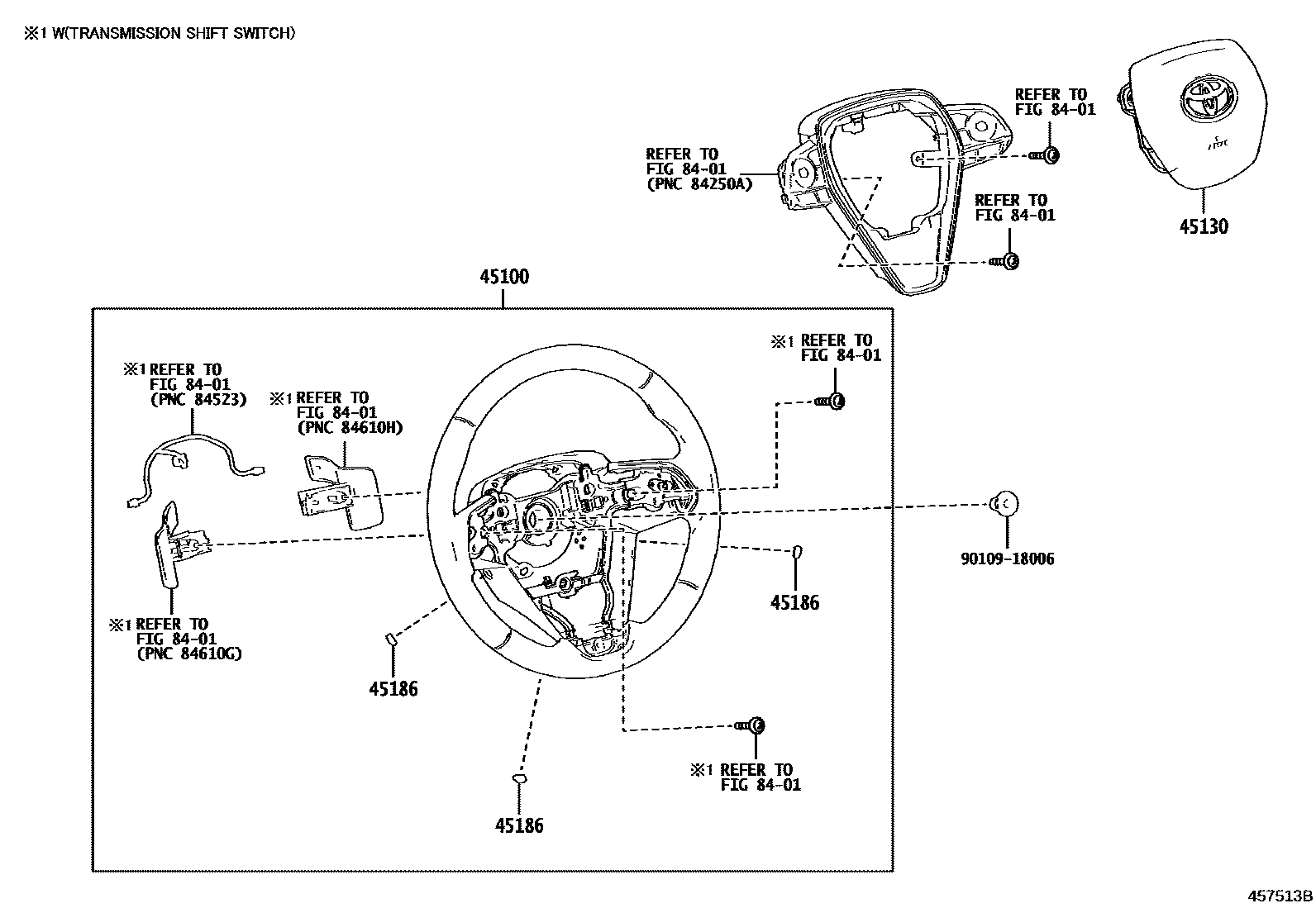

Toyota AVALON (CHINA) — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-07530-C2i201903-202107

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-07540-B1i202008-202107

3-SPOKE,LEATHER,NEUTRAL WARM GRAY & OCHER,TRIM43

main45100-07540-C2supersedes 45100-07580-C0i202304-202407

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-07540-C3i202203-202303

3-SPOKE,LEATHER,BLACK,TRIM4#

main45100-07540-C4i202304

3-SPOKE,LEATHER,BLACK & OCHER & BLACK,TRIM43

main45100-07550-B1i202107-202203

3-SPOKE,LEATHER,BLACK,TRIM43

main45100-07550-C2i201903-202107

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-07550-C3i201903-202107

3-SPOKE,LEATHER,BLACK,TRIM40

main45100-07550-C4i202304

3-SPOKE,LEATHER,BLACK & OCHER & BLACK,TRIM43

main45100-07560-B0i202106-202203

3-SPOKE,LEATHER,NEUTRAL WARM GRAY & OCHER,TRIM43

main45100-07560-C0supersedes 45100-07570-C0i201903-202106

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-07560-C1i202304

3-SPOKE,LEATHER,BLACK,TRIM4#

main45100-07560-C3i202106-202303

3-SPOKE,LEATHER,B GRADE PACKAGE(WITH BACK MONITOR),BLACK & BLACK & IVORY,TRIM21; 3-SPOKE,LEATHER,BLACK & BLACK & IVORY,TRIM21

main45100-07570-C0i202106-202303

3-SPOKE,URETHANE,BLACK,TRIM2#,4#

main45100-07590-C0i202407

3-SPOKE,LEATHER,BLACK,TRIM4#; 3-SPOKE,LEATHER,ENTRY PLUS PACKAGE,BLACK,TRIM4#

main45100-07590-C1i202407

3-SPOKE,LEATHER,BLACK,TRIM1#; 3-SPOKE,LEATHER,ENTRY PLUS PACKAGE,BLACK,TRIM1#

main45100-07590-C2i202407

3-SPOKE,LEATHER,BLACK & OCHER & BLACK,TRIM2#; 3-SPOKE,LEATHER,ENTRY PLUS PACKAGE,BLACK & OCHER & BLACK,TRIM2#

main45100-07600-C0i202407

3-SPOKE,LEATHER,BLACK,TRIM4#

main45100-07600-C1i202407

3-SPOKE,LEATHER,BLACK,TRIM1#

main45100-07600-C2i202407

3-SPOKE,LEATHER,BLACK & OCHER & BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-07090-C0i202304-202407

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45130-07100-C0i202407

BLACK,TRIM1#,2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-07030-C0×3i201903-202106

BLACK,TRIM2#; BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

5 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota AVALON (CHINA)

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVALON (CHINA). Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, COVER, STEERING WHEEL, LOWER NO.2, SWITCH & RELAY & COMPUTER.
