Toyota AURIS — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12320i200910

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030i200812-200910

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A080i200610-200812

85160LINK ASSY, WINDSHIELD WIPER

main85150-12A00i200610-200812

85211BARM, FRONT WIPER, RH

main85211-12490i200610-200703

main85211-12491i200704-200812

85212ABLADE, FR WIPER, RH

main85212-12450i200610-200703

85214ARUBBER, WIPER, RH

main85214-68020i200812-200910

85214BRUBBER, WIPER, LH

main85214-28090i200610-200812

85221BARM, FRONT WIPER, LH

main85221-12430i200610-200703

main85221-12431i200704-200812

85222ABLADE, FR WIPER, LH

main85222-28160i200610-200703

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-12090i200701-200812

main85291-44070i200610-200612

main85291-44090i200610-200701

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i200610-200812

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200610-200812

9011906864

main90119-06864

9018210006

main90182-10006

9046312014

main90463-12014

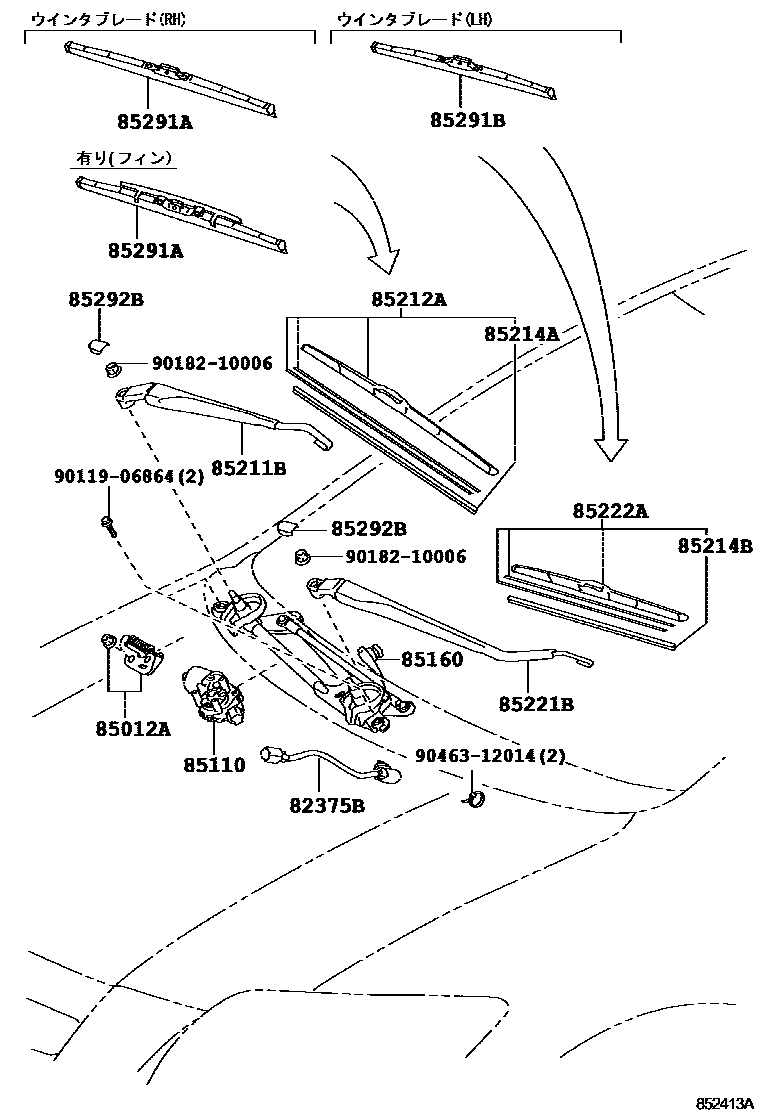

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota AURIS

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota AURIS. Key components include: WIRE, WIPER MOTOR, CRANK SUB-ASSY, FRONT WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH.
