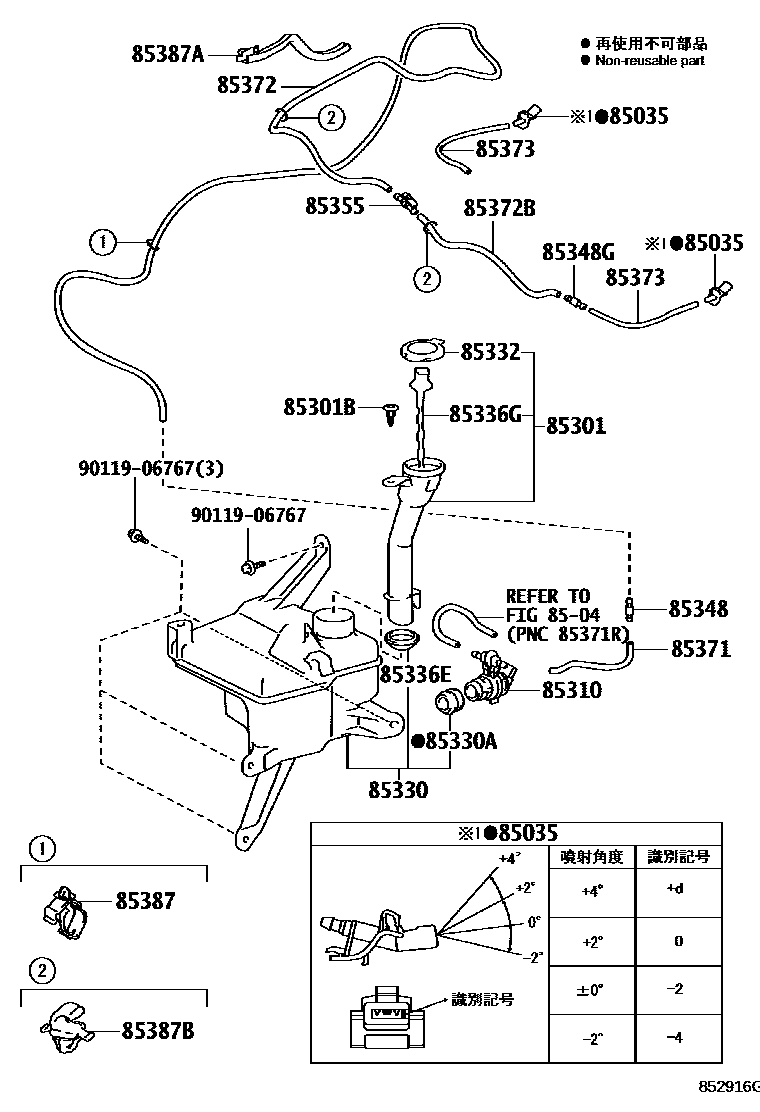

Toyota AURIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400i201208-201503

main85381-12410i201208-201301

main85381-12420i201208-201503

main85381-12430i201301-201503

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-12020i201208-201503

85301BCLIP, WASHER

main90467-07076-C0i201208-201703

BLACK

main90467-07076-C7i201703-201805

BLACK

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-12350i201208-201503

85330JAR ASSY, WINDSHIELD WASHER

main85315-12670i201208-201503

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201208-201503

85332CAP, WINDSHIELD WASHER JAR

main85316-33120i201208-201503

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201208-201503

85336GGAGE, WATER LEVEL

main85313-12040i201208-201503

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201208-201503

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201208-201503

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201208-201503

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201208-201503

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62101i201208-201503

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62076i201208-201503

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62080i201208-201503

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350i201208-201503

85387ACLAMP, WASHER, NO.2

main85388-12A70i201208-201503

85387BCLAMP, WASHER, NO.3

main85371-12040i201208-201503

9011906767

main90119-06767

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota AURIS

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AURIS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
