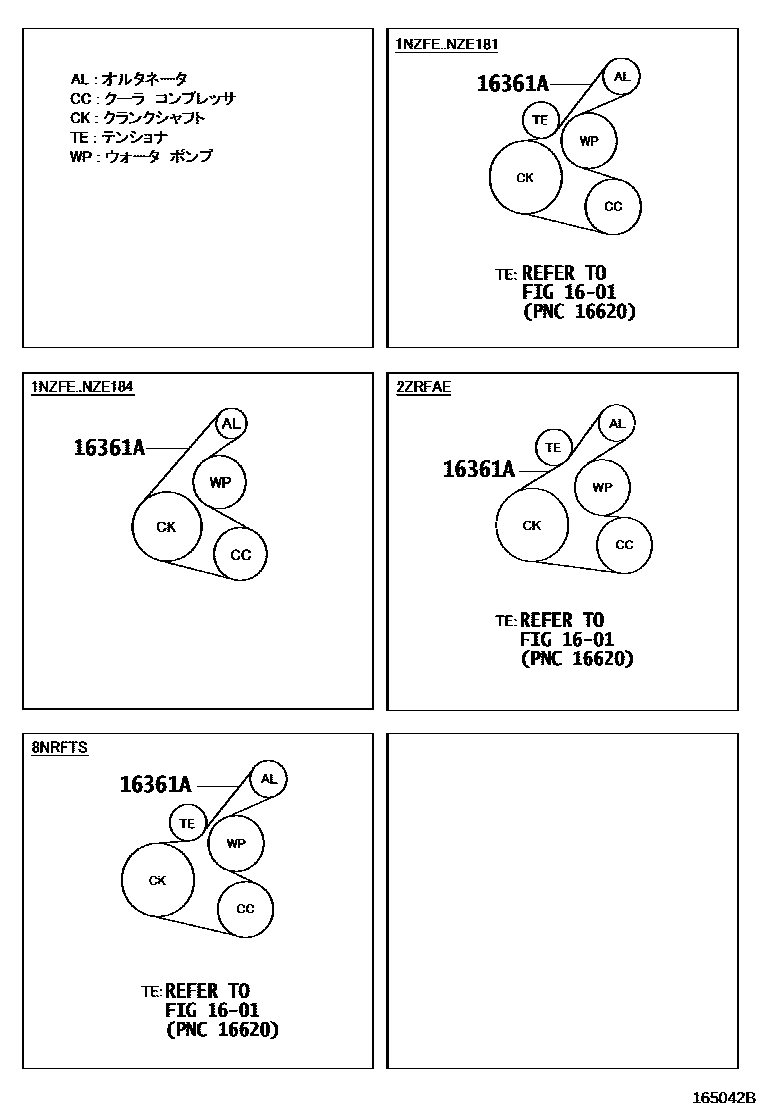

Toyota AURIS — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02609i201503

main90916-02705i201503

main90916-02713i201208-201503

main90916-02730i201503

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota AURIS

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota AURIS. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
