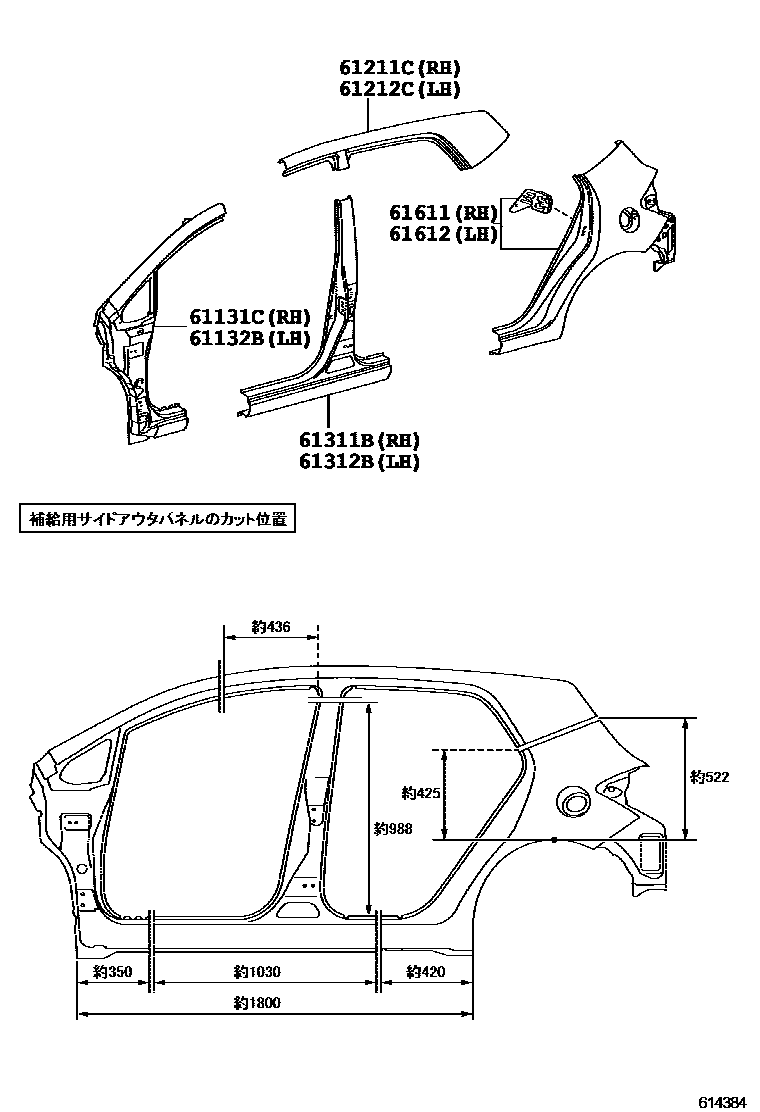

Toyota AURIS — SIDE MEMBER

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12770supersedes 61131-12730i200910

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12750supersedes 61132-12700i200910

61211CRAIL, ROOF SIDE, RH

main61211-12480i200812-200910

61212CRAIL, ROOF SIDE, LH

main61212-12480i200812-200910

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12450supersedes 61311-12410i200910

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12490supersedes 61312-12450i200910

61611PANEL, QUARTER, RH

main61601-12A60supersedes 61601-12A50i200910

61612PANEL, QUARTER, LH

main61602-12A60supersedes 61602-12A50i200910

8 parts on this diagram · 4 diagrams in section

SIDE MEMBER for Toyota AURIS

This section contains 77 genuine Toyota parts for the SIDE MEMBER system of the Toyota AURIS. Key components include: HOLE PLUG, CARRIER SUB-ASSY, JACK, PROTECTOR, QUARTER PANEL, FRONT RH, PROTECTOR, QUARTER PANEL, FRONT LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH.
